Bench, Page 2 – AZEK Bench Planter User Manual
Page 2

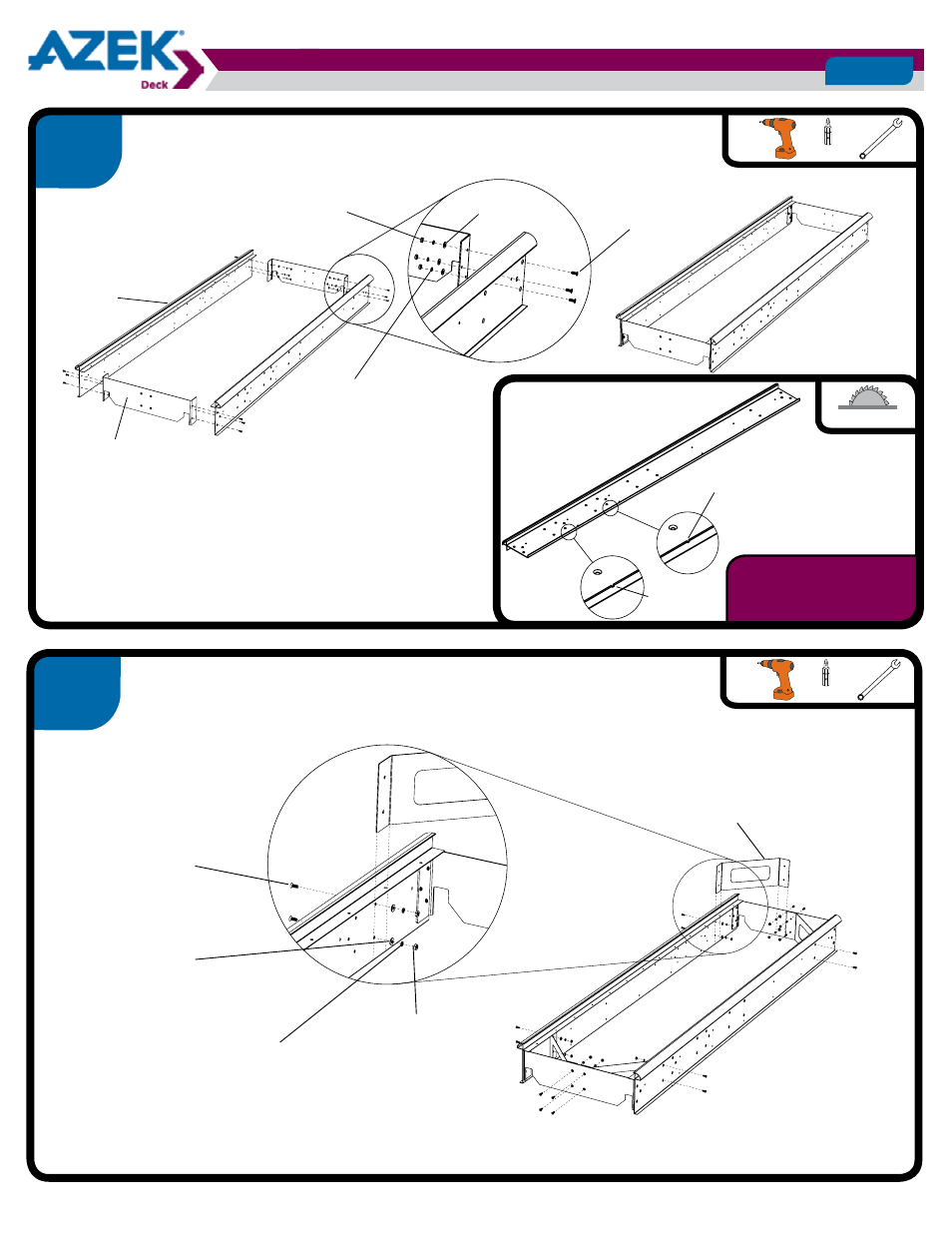

Cut corner bead (x2)
from one end as shown
for 4’ or 5’ bench
1
2
Assemble End Caps & Center Bracket
Assemble Corner Brace
#10 Flat Washer
(x16)
#10 Split Lock
Washer
(x16)
Corner Brace
(x4)
#10 Flat
Hex Nut
(x16)
#10-32 1/2” Flat
Head Phillips
Machine Screws
(x16)
#10-32 1/2” Flat
Head Phillips
Machine Screws
(x12)
Bench
Corner
Bead
Support
#10 Flat Washer
(x16)
#10 Split Lock
Washer (x12)
10-32 Hex
Nut (x12)
End Cap
(x2)
Bench
Bench
3/8”
Drill
#2 Bit
First notch
for 5’ bench
Second notch
for 4’ bench
for metals
BENCH/PLANTER INSTALLATION GUIDELINES for
Arbor Collection
‰
/ Harvest Collection / Terra Collection
‰
Page 2
