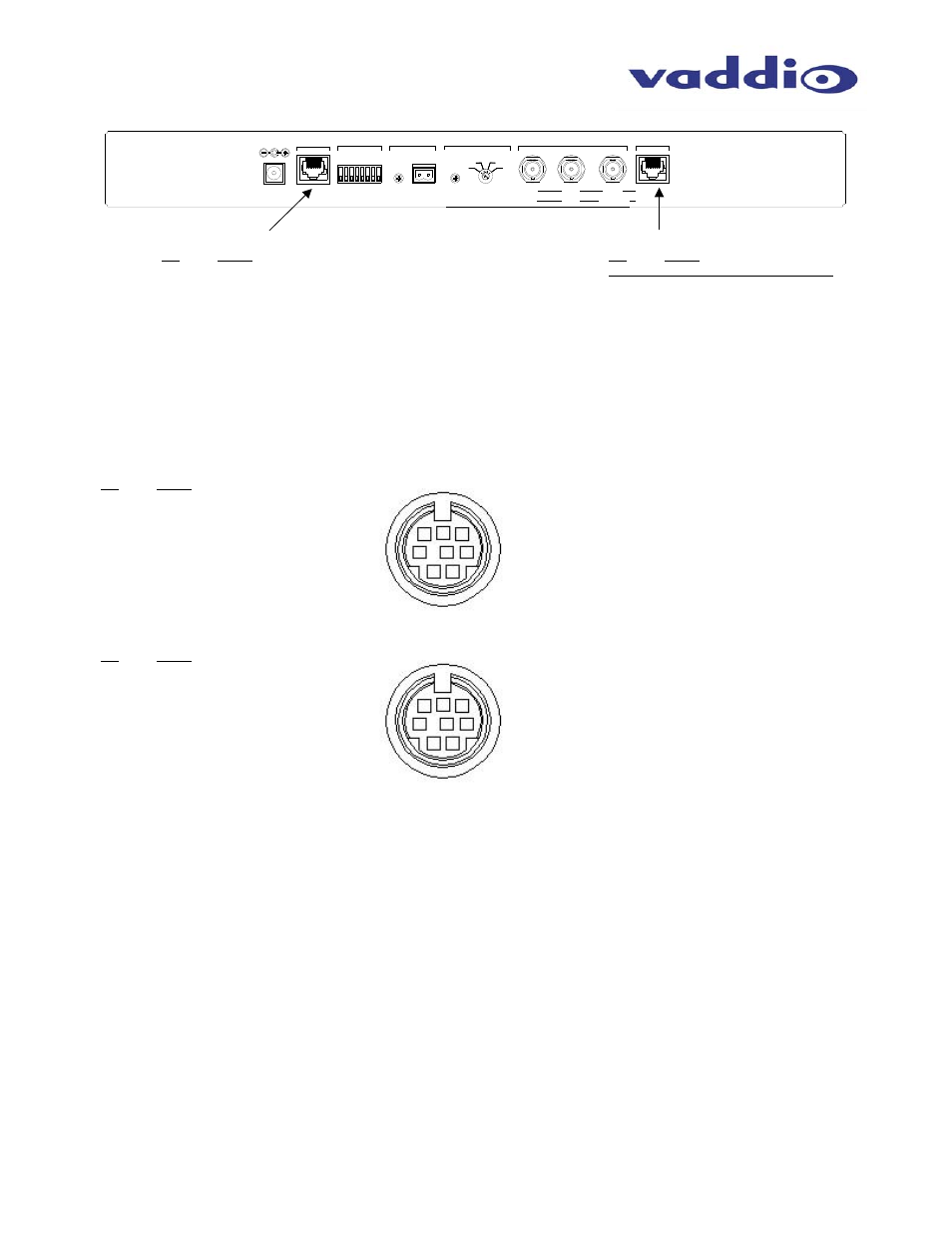

Quick-Connect Pin-outs
Sony HD & SD Camera Control Pin-outs
RS-232 IN Connector (8-Pin Mini Din)
Pin Signal
1 DTR
2 DSR
3 TXD
4 GND
5 RXD
6 GND
7 IR
OUT
8 Unused
RS-232 IN Connector (8-Pin Mini Din)
Pin Signal
1 DTR
2 DSR
3 TXD
4 GND
5 RXD
6 GND
7 Unused
8 Unused
Power Connector
Pin Signal
1 Power
+
2 Power -
3 Power +
4 Power -
5 Power +
6 Power -
7 Power +
8 Power -
Video Connector
Pin Signal
SD
HD
1) IR+ IR+
2) IR GND IR GND
3) Y+ Y+
4) C+ PB+
5) C- PB-
6) Y- Y-
7)
Comp. Video + PR+
8) Comp. Video - PR-
