WallVIEW HD-22 and HD-30 SR Systems
WallVIEW HD-22 and HD-30 SR Cameras Systems - Document Number 342-0643 Rev A Page 6 of 20

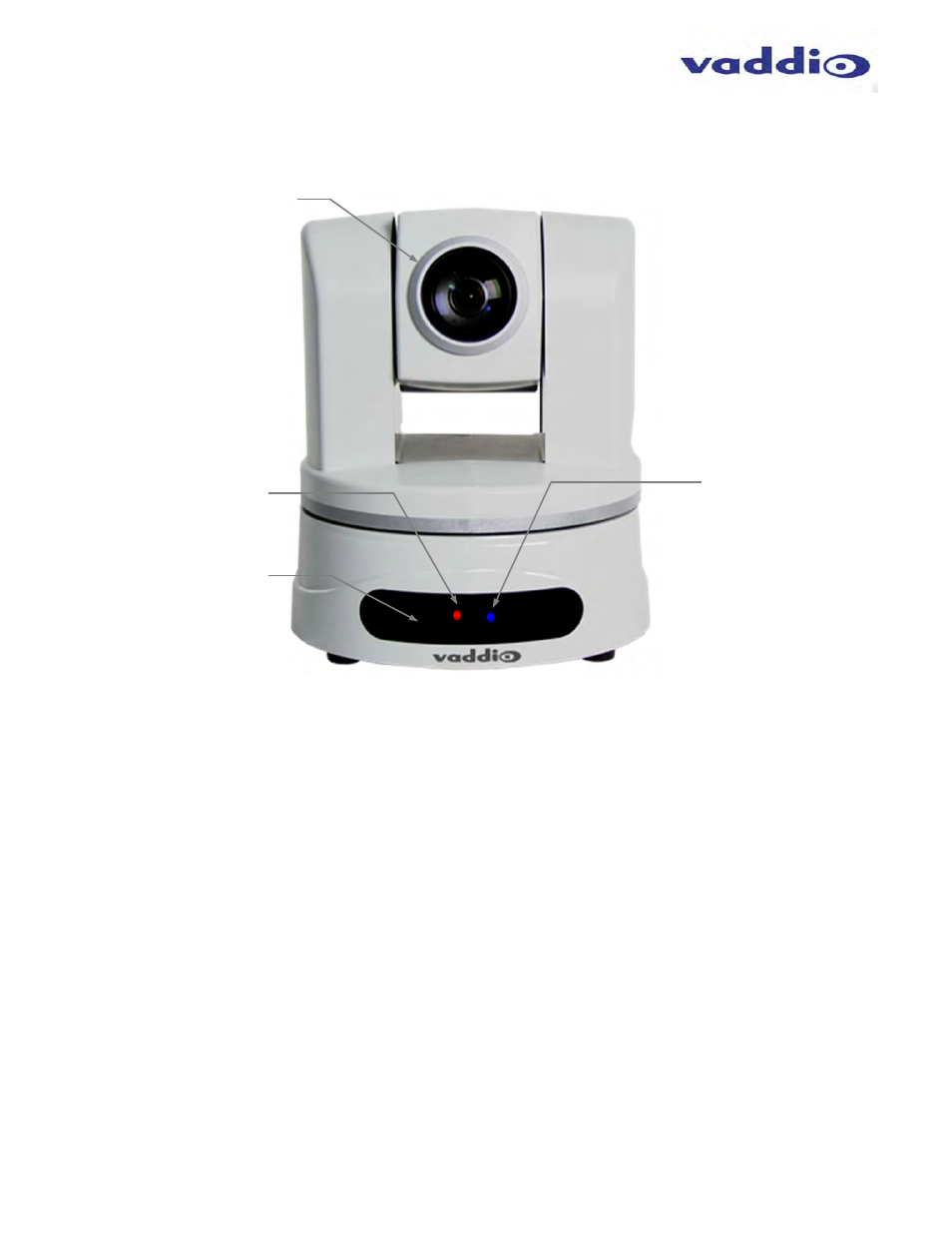

Camera Front View with Feature Call-outs
Image: WallVIEW HD-22/30 SR Camera System
1) Camera and Zoom Lens:
The 22X (HD-22) or 30X (HD-30) optical zoom lens is built around a (1/2.8 Type) high-speed MOS image sensor
with a total of 2.2 megapixels for precise HD video image acquisition.
2) Red Tally Light:
A red tally light is illuminated when the camera receives a command from an external controller.
3) IR Sensors:
IR sensors are built into the front of the HD-22 and HD-30 to receive IR signals from the IR remote control
supplied with the camera.
4) Blue Power Light:
A Vaddio blue power light is illuminated when the camera is turned on.
②
①
③
④
