WallVIEW D80 PTZ and WallVIEW D90 PTZ Manual

Installation:

The WallVIEW products are cameras specifically designed for installation on a vertical wall surface with Cat-5
cable connectivity for Power, Video and Control signaling. Installation is simplified in that no custom 8-Pin mini-
din cables or expensive S-Video plenum cables are needed and no power outlets are required near the camera
bracket. All cabling is routed to the head-end using Cat-5 cabling with the EZCamera Cabling system.

Note: The WallVIEW D80 PTZ and the WallVIEW D90 PTZ can be located 200’ (61m) from the
Quick-Connect Box with power supply at the head end.

Before Installation:

 Locate the camera mounting location paying close attention to camera viewing angles, lighting conditions,

possible line of site obstructions while also checking for in-wall obstructions where the camera is to be
mounted.

 The WallVIEW D80 PTZ and WallVIEW D90 PTZ can be mounted to standard 2-gang wall boxes. All

cameras are basically lightweight and the thin profile wall mount bracket can be adequately secured to the
wall with the four (4) provided spiral wall anchors (or your own choice of dry wall anchor).

 Pick a mounting location to optimize the performance of the camera

Pre-wire all cabling as required, mark and test the cables (see wiring diagram examples). Please
do not connect to the EZ Camera Cable Shoe using the “guess/trial and error” method. Plugging
the EZ POWER/VIDEO Cat. 5 Cable into the wrong RJ-45 may cause damage to the camera
and void the warranty!

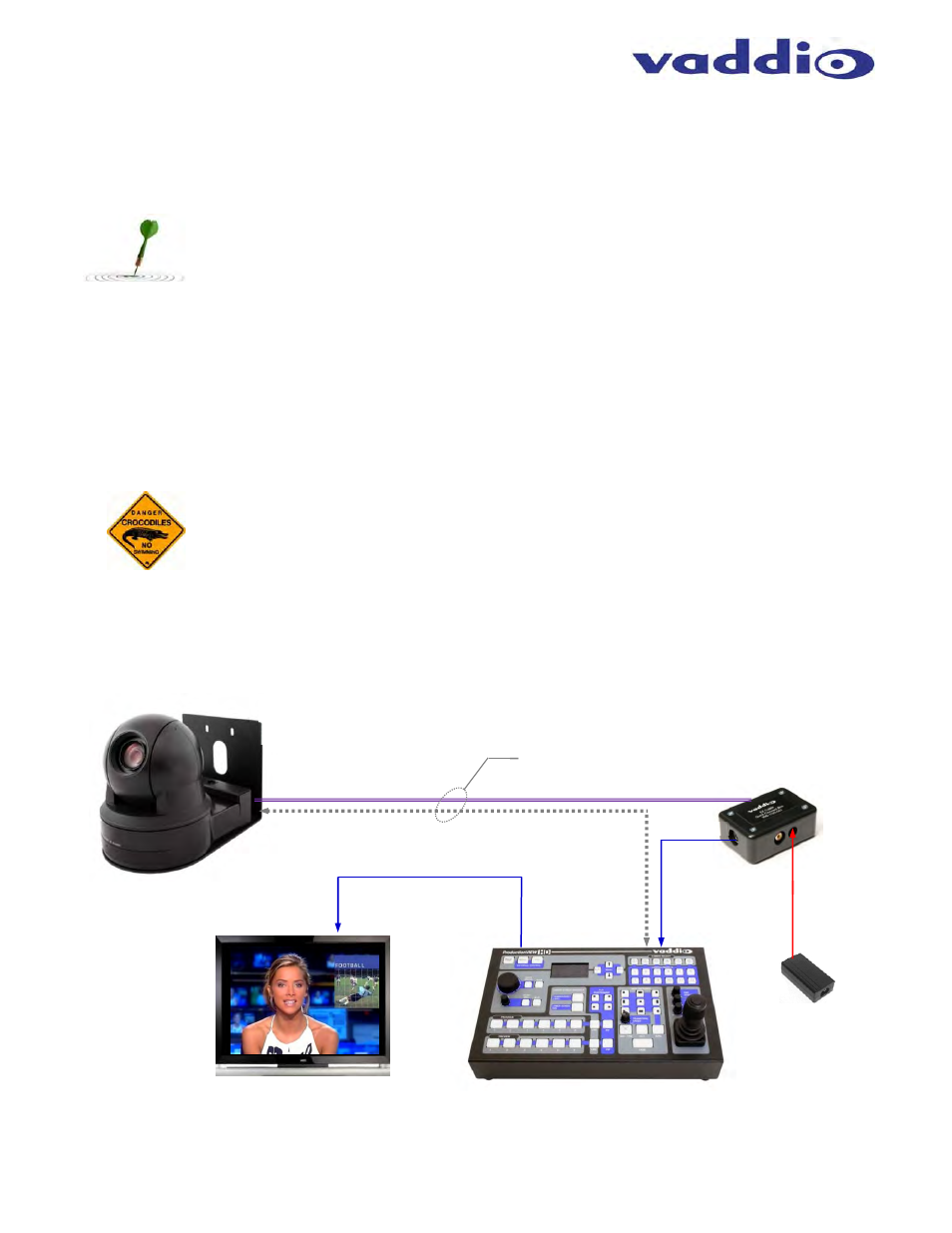

Diagram: The Basic Idea

(no scale)

The WallVIEW D90 PTZ uses a single Cat-5 for 18 VDC Power and Video to the Quick-Connect Box. A second Cat-5 cable is used for RS-
232 control (shown connected to a Vaddio ProductionVIEW HD Switcher/mixer/controller).

Power & Video Cat-5

RS-232 Cat-5

200’ (61m) Cat-5
Cable length

WallVIEW 90 PTZ (NTSC - Black)
Power Regulated to 12 VDC at the
EZCamera Cable Shoe

Quick-Connect Box
S-Video and Composite
Video are available for
use simultaneously.

18VDC Power

Supply

Power

S-Video

Simulated Video Feed

ProductionVIEW HD
