TRIO Table Mic Array

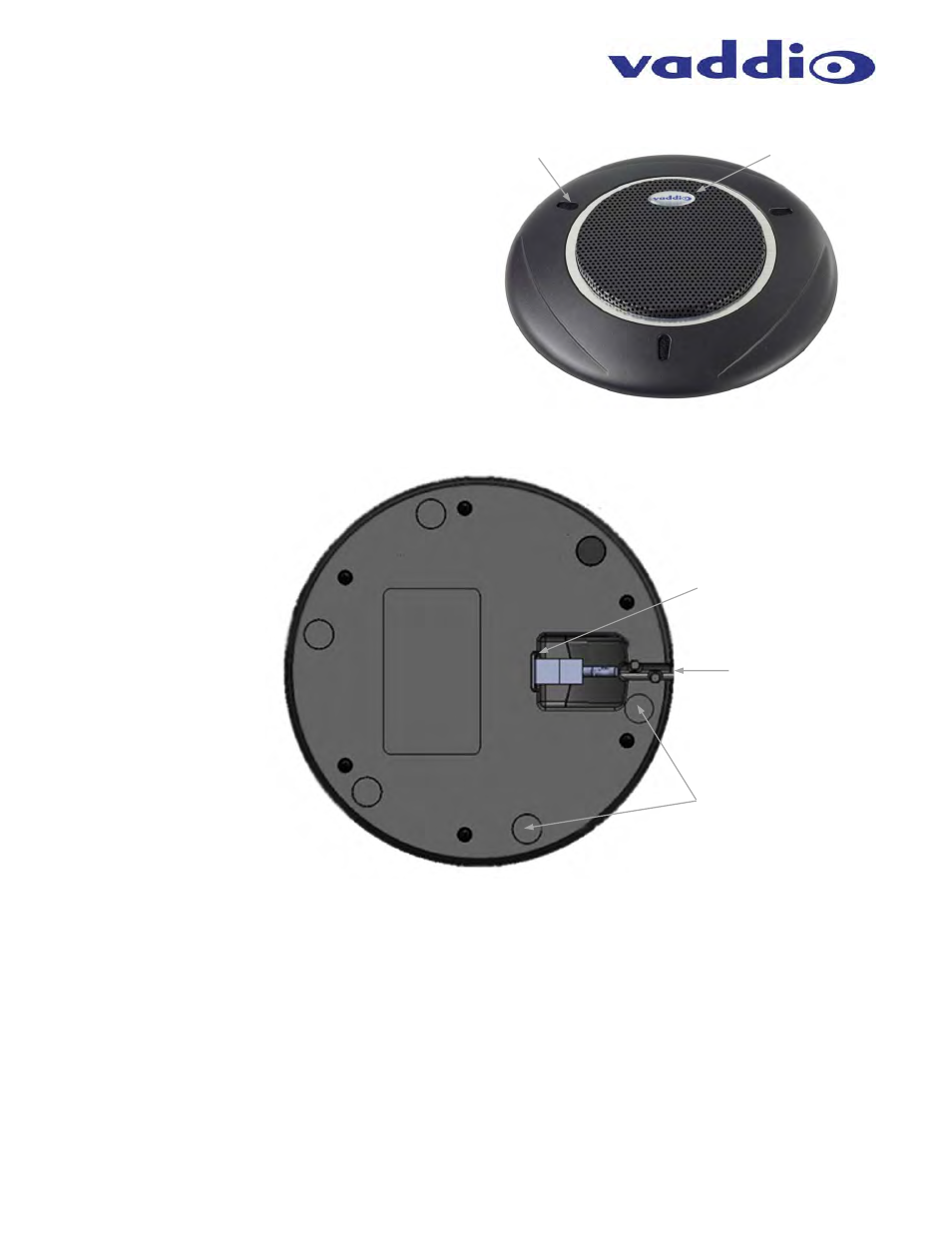

Diagram: Top View of TRIO Table Mic Array
1) Microphone Elements x 3:
The three (3) high definition cardioid
microphone elements are evenly space at
120° providing 360° circular coverage around
the pod.
2) Really Cool Logo
Diagram: Bottom View of Top View of TRIO Table Mic Array
1) Mic Port:
RJ-45 Connection port that is home ran to the TRIO MIC I/O Interface via up to 100’ (30.48m) of Cat-5 cable.
2) Cable Management:
A channel with cable tabs is for routing Cat-5 cable from the mic while allowing the mic to sit flat on any surface.
3) Rubber Feet:
Six rubber feet are evenly spaced around the radius on the bottom of the TRIO Mic to prevent the mic from
sliding around on the table, which can be annoying to the far-end.
