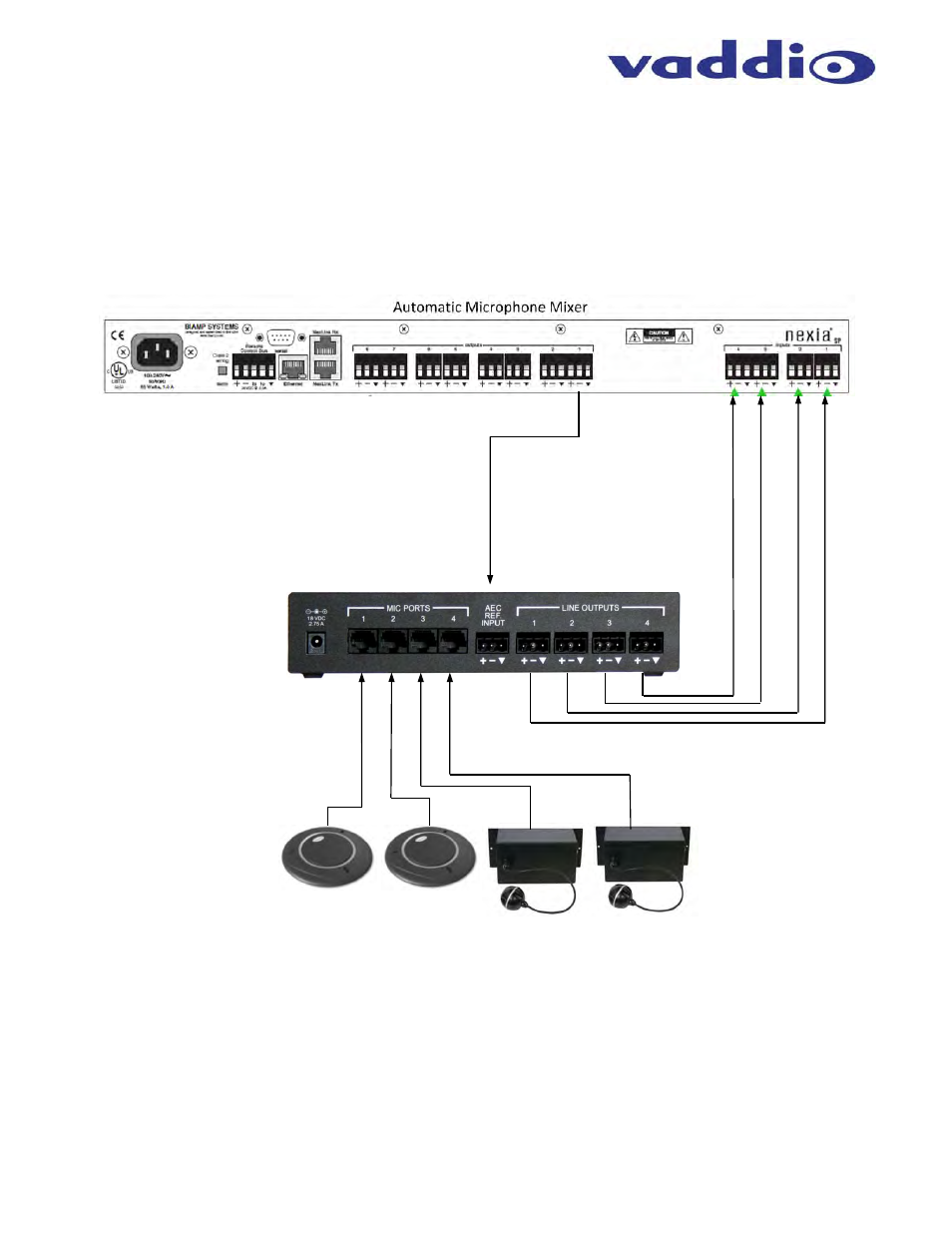

Diagram: Professional Audio Mixer Connection Diagram with TRIO Mic I/O
The diagram below depicts a typical deployment of the TRIO MIC I/O with a professional audio mixer in a
conference room application. TRIO mic arrays are connected to the TRIO MIC I/O interface. The TRIO MIC I/O
outputs are connected to the input channels of the professional audio mixer. The AEC reference input (required
for proper operation) is connected to an output on the mixer (far end audio).
Echo
Cancelling
Reference
Up to four (4) TRIO Table or
Ceiling Microphone Arrays
Cat-5 Cables
TRIO Mic I/O - Rear Panel
Line Outputs
Shielded Cable
