Quick-Connect PRO and WallVIEW PRO for the AW-HE120 Camera
© 2012 Vaddio - All Rights Reserved. Document Number 342-0497 Rev A Page 5 of 16
Information:
For RS-232 control information, please see the full-length Technical Manual for the Panasonic AW-HE120. This
manual can be found either on the Panasonic or the Vaddio website.

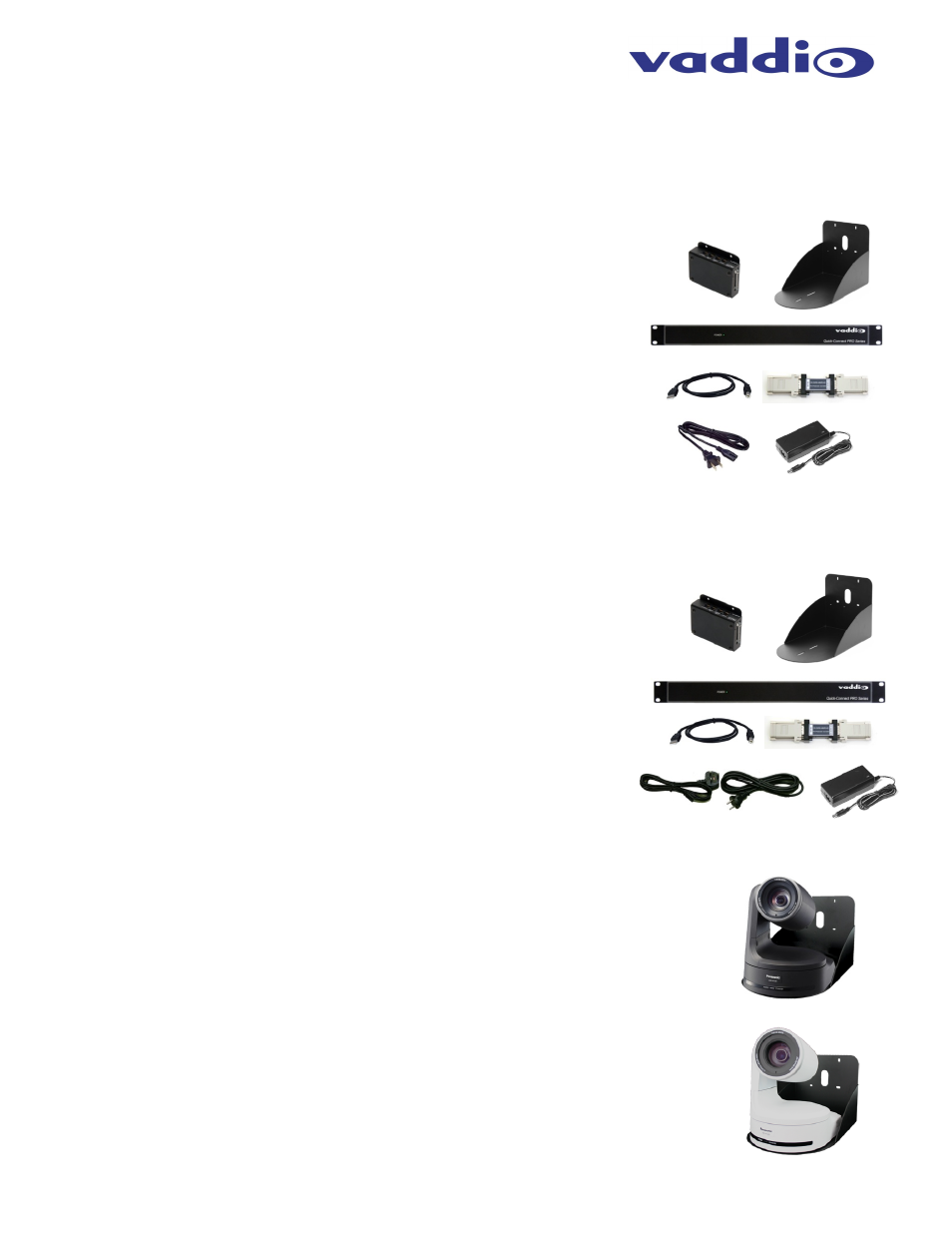

Unpacking
998-6125-000: Quick-Connect PRO Kit (NO CAMERA) for the AW-HE120 - North America
Carefully remove the device(s) and all parts from the packaging. Please do
not toss the packaging yet, just set it aside where it won’t be in the way.
Unpack and identify the following parts:
• One (1) 998-1105-009, Quick-Connect PRO Series Interface Unit
• One (1) 36 VDC 2.78 Amp power supply with power cord for North America
• One (1) 2-pin Molex 5.0mm Euro-style IR Forward connector
• One (1) EZIM (EZ Interface Module) for Quick-Connect PRO
• Two (2) 6-32 x .188” Pan Head for attaching EZIM to the Wall Mount
• One (1) 440-6705-120, Break-out Cable from EZIM to Camera
• One (1) 998-1005-232, DB-9M to RJ-45F EZCamera Control Adapter
• One (1) 998-1003-232, DB-9F to RJ-45F EZCamera Control Adapter
• One (1) Modified CommFront CVT-485_4222-1 RS-232 to RS-422 Adapter
• One (1) 3’ (.9144m) Cat-5e Patch Cable
• One (1) 535-2000-223, HD Wall Mount for Camera (in Black)
• Four (4) #8 x 1.25” Sheet Metal Screws
• Four (4) Wall Anchors (EZ Anchors)
• Two (2) ¼” x 20 x 0.5” Pan Head Screws
• One (1) Documentation
998-6125-000: Quick-Connect PRO Kit (NO CAMERA) for the AW-HE120 - International
Unpack and identify the following parts:
• One (1) 998-1105-009, Quick-Connect PRO Series Interface Unit
• One (1) 36 VDC 2.78 Amp power supply
• One (1) Euro Power Cable
• One (1) UK Power Cable
• One (1) 2-pin Molex 5.0mm Euro-style IR Forward connector
• One (1) EZIM (EZ Interface Module) for Quick-Connect PRO
• Two (2) 6-32 x .188” Pan Head for attaching EZIM to the Wall Mount
• One (1) Break-out Cable from EZIM to Camera
• One (1) 998-1005-232, DB-9M to RJ-45F EZCamera Control Adapter
• One (1) 998-1003-232, DB-9F to RJ-45F EZCamera Control Adapter
• One (1) Modified CommFront CVT-485_4222-1 RS-232 to RS-422 Adapter
• One (1) 3’ (.9144m) Cat-5e Patch Cable
• One (1) 535-2000-223, HD Wall Mount for Camera (in Black)
• Four (4) #8 x 1.25” Sheet Metal Screws
• Four (4) Wall Anchors (EZ Anchors)
• Two (2) ¼” x 20 x 0.5” Pan Head Screws
• One (1) Documentation
999-6125-000K: WallVIEW PRO HE120 System - Black Camera - North America
One (1) 998-6215-000 Quick-Connect PRO Kit Complete as Listed Above for the AW-HE120
One (1) Panasonic AW-HE120K Black Camera Complete with manual and accessories by Panasonic
999-6125-001K: WallVIEW PRO HE120 System - Black Camera - International
One (1) 998-6215-001 Quick-Connect PRO Kit Complete as Listed Above for the AW-HE120
One (1) Panasonic AW-HE120K Black Camera Complete with manual and accessories by Panasonic
999-6125-000W: WallVIEW PRO HE120 System - White Camera - North America
One (1) 998-6215-000 Quick-Connect PRO Kit Complete as Listed Above for the AW-HE120
One (1) Panasonic AW-HE120W White Camera Complete with manual and accessories by Panasonic
999-6125-001W: WallVIEW PRO HE120 System - White Camera - International
One (1) 998-6215-001 Quick-Connect PRO Kit Complete as Listed Above for the AW-HE120
One (1) Panasonic AW-HE120W White Camera Complete with manual and accessories by Panasonic
