Quick-Connect PRO and WallVIEW PRO for the AW-HE120 Camera
© 2012 Vaddio - All Rights Reserved. Document Number 342-0497 Rev A
Page 14 of 16

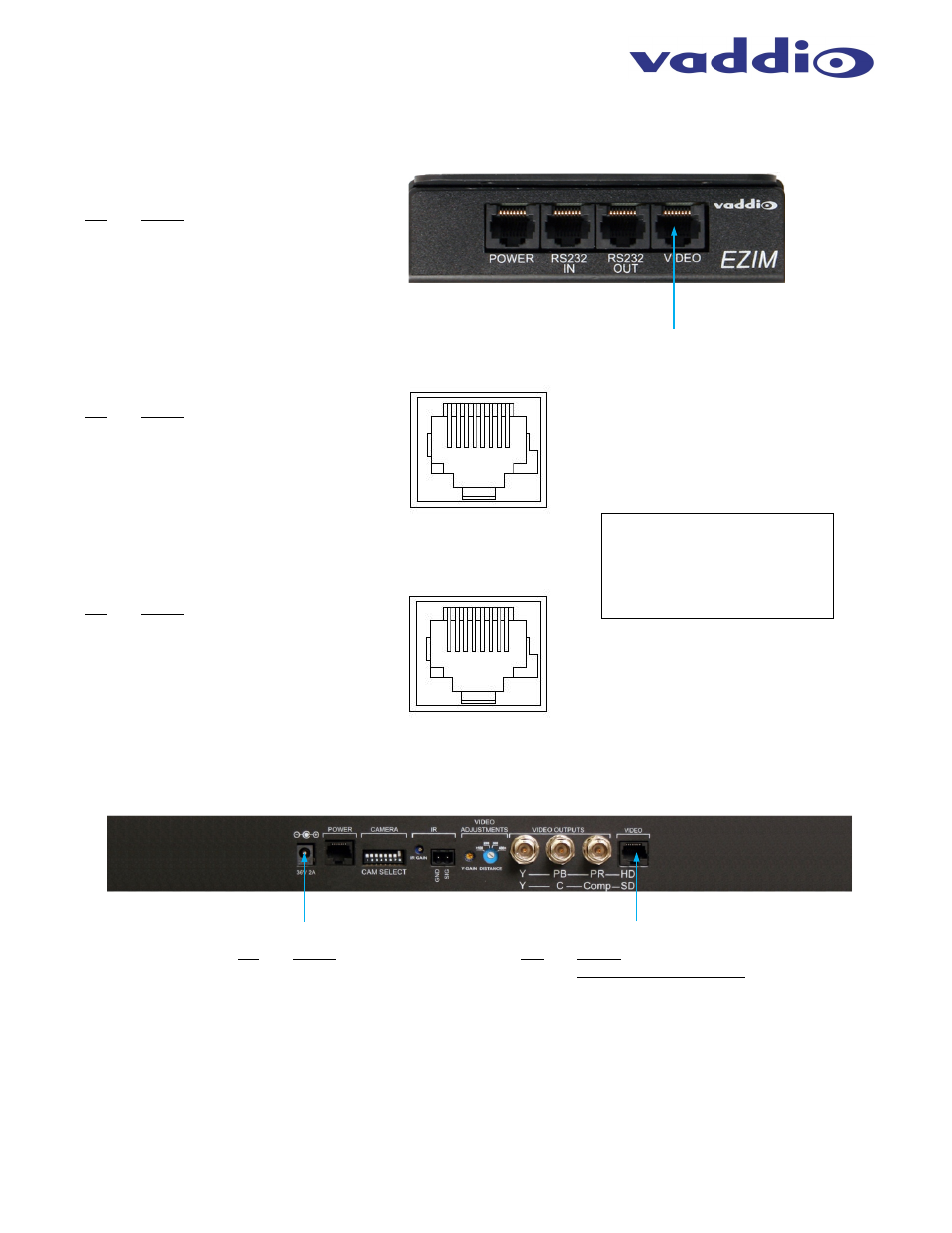

Appendix 1: Cable Pin-outs for the WallVIEW PRO System
EZCamera Interface Module Pin-outs
Power Connector
Pin
Signal
1
Power +
2
Power -
3
Power +
4
Power -
5
Power +
6
Power -
7
Power +
8
Power -
RS-232 IN Connector
Pin
Signal
1)
Unused
2) Unused
3)
Unused
4)
Unused
5)
Unused
6)
Unused
7)
Unused
8)
Unused
RS-232 OUT Connector
Pin
Signal
1)
Unused
2)
Unused
3)
Unused
4)
Unused
5)
Unused
6)
Unused
7)
Unused
8)
Unused
Quick-Connect PRO Series Interface Pin-outs
12345678
12345678
RS-232 Note:
The Panasonic AW-HE100
camera does use the RS-232
ports on the EZIM and does
not support daisy-chain.
Power Connector
Pin
Signal
1
Power +
2
Power -
3
Power +
4
Power -
5
Power +
6
Power -
7
Power +
8
Power -
Video Connector HD ONLY
Pin
Signal
SD
HD
1)
N/A
N/A
2)
N/A
N/A
3)
N/A
Y+
4)
N/A
PB+
5)
N/A
PB-
6)
N/A
Y-
7)
N/A
PR+
8)
N/A
PR-
Same HD Pin-outs
as below
