Vaddio ProductionVIEW HD-SDI User Manual
Page 7
ProductionVIEW HD-SDI
Optional Accessory – UXHD CrossPoint (999-5690-000)
WallVIEW CCU H700 with
optional HD-SDI Card in camera

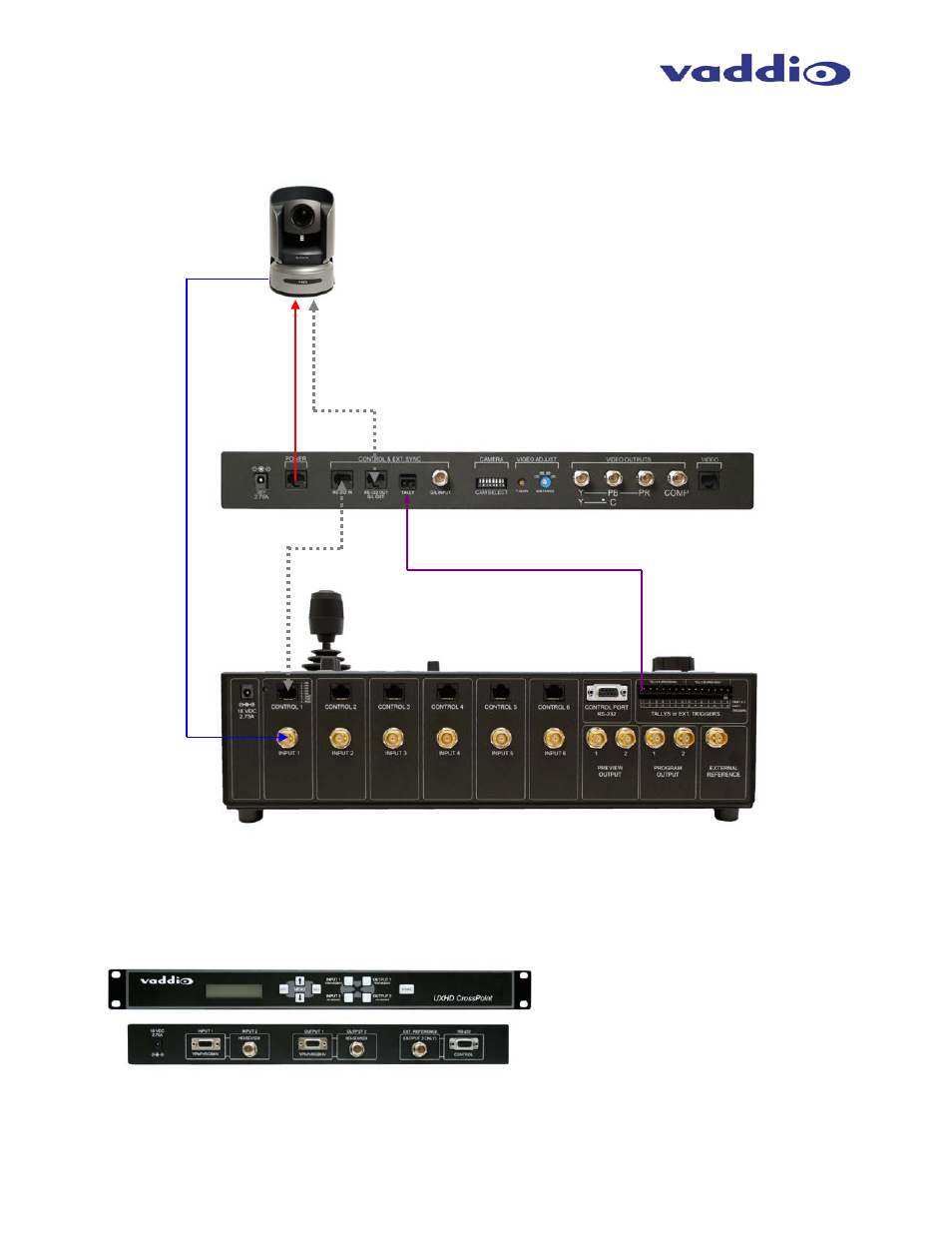

Figure 4:
Sample configuration of a WallVIEW CCU connected to ProductionVIEW HD-SDI, with video, control and tally cabling.
RS-232
Control
TALLY IN
HD-SDI
Coax Cable
Power
CAT 5
UXHD CrossPoint is a dual input (SD/HD-SDI & analog
video), dual output (analog video & SD/HD-SDI)
converter. The CrossPoint allows signal conversion for
delivering video into and out of ProductionVIEW HD-SDI.
See the next page for a line drawing with UXHD
CrossPoint.
RS-232
CAT 5
TALLY OUT
ProductionVIEW HD-SDI
Quick-Connect CCU
HD-SDI
ProductionVIEW HD-SDI Manual 341-852 Rev. B
Page 7 of 22
