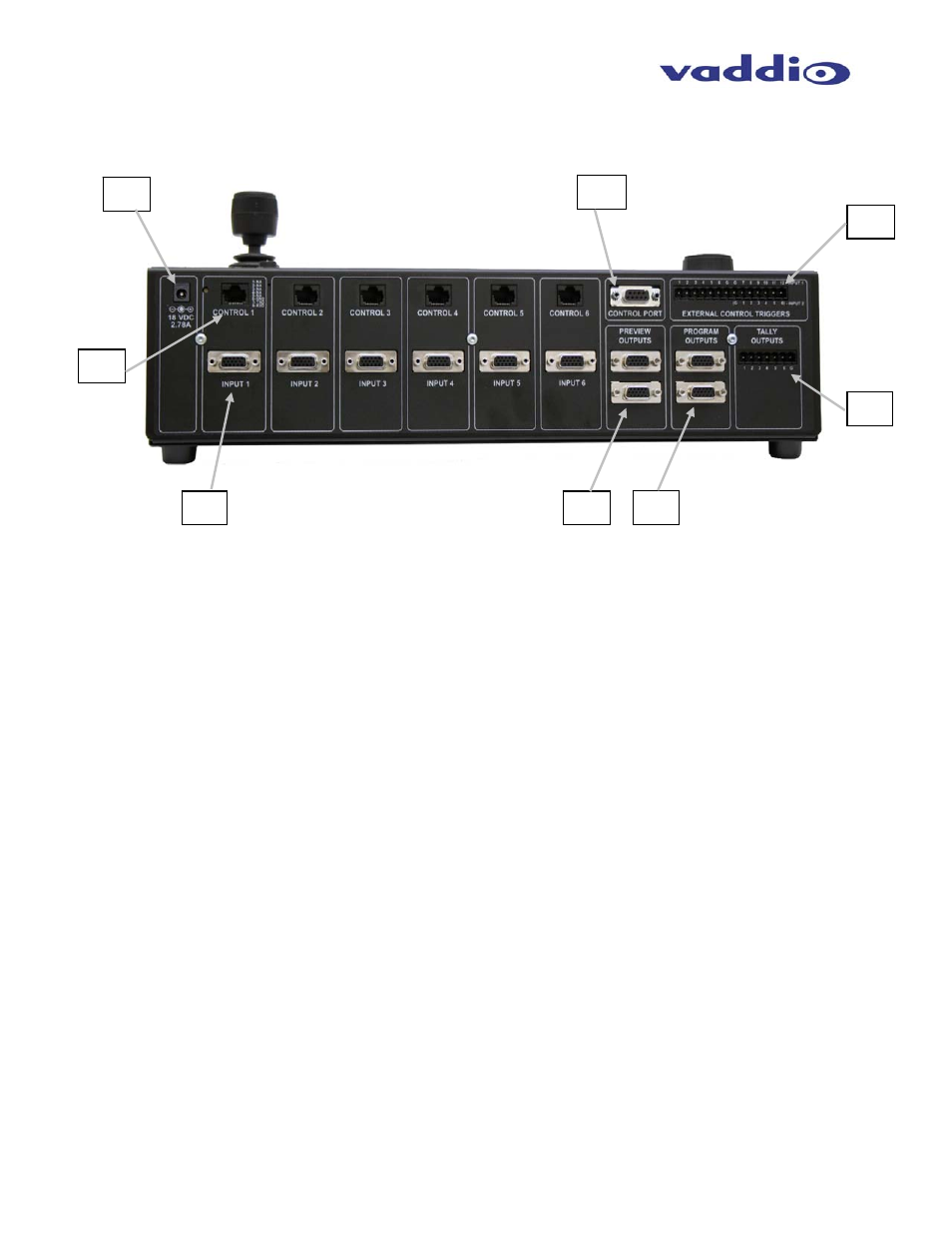

ProductionVIEW HD Back Panel I/O and Controls (Figure 3):

11. Power Input -

Note: Use only the 18 VDC, 2.75A power supply provided with the ProductionVIEW

HD.

12. Camera Control Ports on RJ-45 connectors:

One camera control port per camera (no daisy-

chaining required). Compatible with Sony, Canon and Vaddio PTZ cameras. See page 3 for details
on cameras and camera systems compatible with ProductionVIEW HD.

13. Video Inputs:

Each input will accept either an SD (composite or Y-C), HD (Y, Pb, Pr) or RGBHV

video signals (selectable via internal menu) on the VGA connector. See the Video Resolutions table
on page 20 for all signals and resolutions supported.

14. Preview Outputs –

Delivers the same SD (composite or Y-C), HD (Y, Pb, Pr) or RGBHV signal

(selectable via internal menu) on both VGA connectors. See the Video Resolutions table on page 20
for all signals and resolutions supported.

15. Program Outputs –

Delivers the same SD (composite or Y-C), HD (Y, Pb, Pr) or RGBHV signal

(selectable via internal menu) on both VGA connectors. See the Video Resolutions table on page 20
for all signals and resolutions supported.

16. Tally Outputs –

Allows for connecting ProductionVIEW HD to external Tally inputs such as PreVIEW

HD monitors, Quick-Connect CCU and other third-party tally sources.

17. Input Triggers for use in Automatic mode

- Input Triggers for input channels 1 and 2. Configurable

in two modes (6 triggers for Input 1 and 6 triggers for Input 2, or 12 triggers for input 1 only).
Supports Vaddio AutoVIEW IR, StepVIEW, TouchVIEW and MicVIEW trigger inputs.

18. Control Port Input -

DB-9 for RS-232 control of internal functions (Pin 2 = TX, Pin 3 = RX, Pin 5 =

GND).

Vaddio accessory cables for SD (Y-C or composite) and HD component (YPbPr) are sold separately.
