EasyTalk Wireless Mic

EasyTalk Wireless USB Mic System - Document Number 342-0442 Rev A

Page 8 of 16

Belt Pack and Battery Compartment:

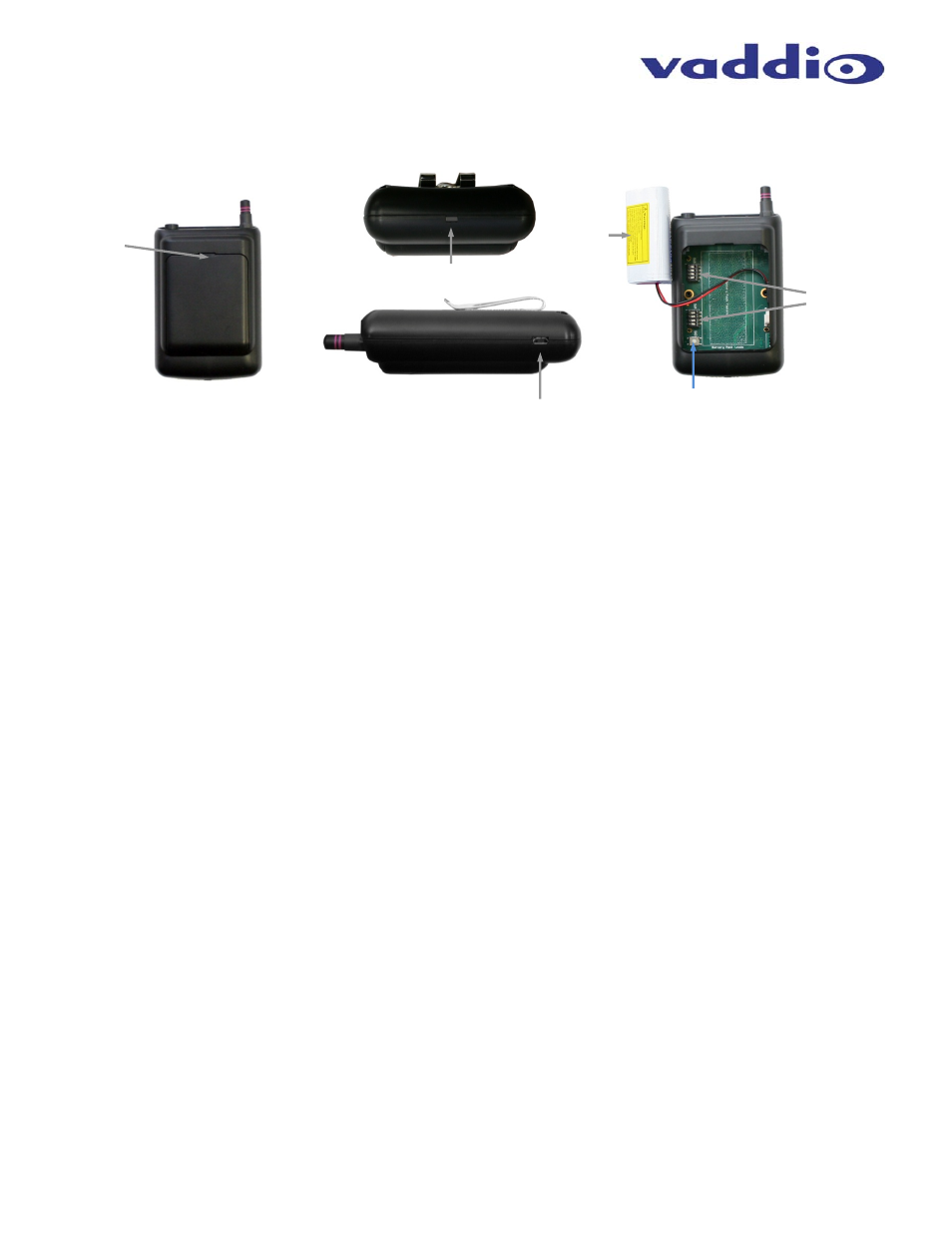

Diagram: Belt Pack Views












1) Removable Battery Compartment Cover:

To open, carefully press down at the top of the removable battery

cover near the center of the small opening and slide the cover downward. To replace the removable battery
cover, start sliding the cover on at the bottom of the battery pack compartment and slide cover upward to the
top to the small opening until the cover latches in place.

2) Micro-B USB Charging Port:

The Belt Pack rechargeable battery can be charged by the micro-B USB

connector on the bottom side of the belt pack enclosure. A USB charger is included with the Belt Pack. The
Belt Pack can also be recharged by using a micro-B USB to USB adapter which can be connected to a PC or
Laptop USB port for recharging. Use only the charging power supply provided.


3) Dip

Switches:

There are two (2) 4-position dip switches located on the circuit board, SW4 and SW5. They

provide configuration settings for Microphone Gain Control, Filtering, Compression and Microphone Filtering
and Pairing of the Wireless Belt Pack to the EasyTalk Wireless Receiver.


4) Rechargeable Lithium-Ion Battery:

The battery is housed and attached inside the Battery Compartment and

under normal use should last up to ten (10) hours when fully charged.


5) Battery Indicator LED:

The Battery Indicator LED is located on the bottom of the Belt Pack.

a. When the USB charger is not connected to the Belt Pack: The Battery Indicator LED will be off

when battery power is adequate for the Belt Pack. The Battery Indicator LED will blink red indicating
that the battery power is low and needs to be recharged soon.

b. When the USB charger is connected to the Belt Pack: The Battery Indicator LED will be yellow

when the battery is charging. The Battery Indicator LED will be green when the battery is fully
charged. Average charging time from dead battery to full charge is 10 hours.


6) Radio Pairing Button SW3:

Push this button in conjunction with the Pairing button on the front panel of the

Optional Wireless Receiver to “pair” the transmitting Belt Pack with the Receiver.
