INSTALLATION & OPERATIONAL SELV MANUAL

10 L20-406 Rev 5 (3/14)

2.6 OPTIONAL CORD SET & PLUG and RESTRAINT CABLE

If your appliance was not equipped with an optional cord set and plug, field connection to electrical power
supply will be required. Adhere to all local or national codes and warnings from (see section 2.5) when
making field connections to mains. Use the table above to determine conductor rating, and

1. Remove the fryer entrance box cover, Figure 1.5.1.
2. Insert power cable/conduit through hole in fryer cabinet, Figure 1.5.2. Use care when routing

power cable/conduit through the fryer to not interfere with actuator movement.

3. Referring to figure 1.5.3, Install cable strain relief in housing cutout (1). Attach power cable

wires to terminal block (2) per connection diagram on fryer door.

4. Attach a movement restraint cable assembly to any fryer that is not connected with a cord and

plug, Figure 1.5.4.

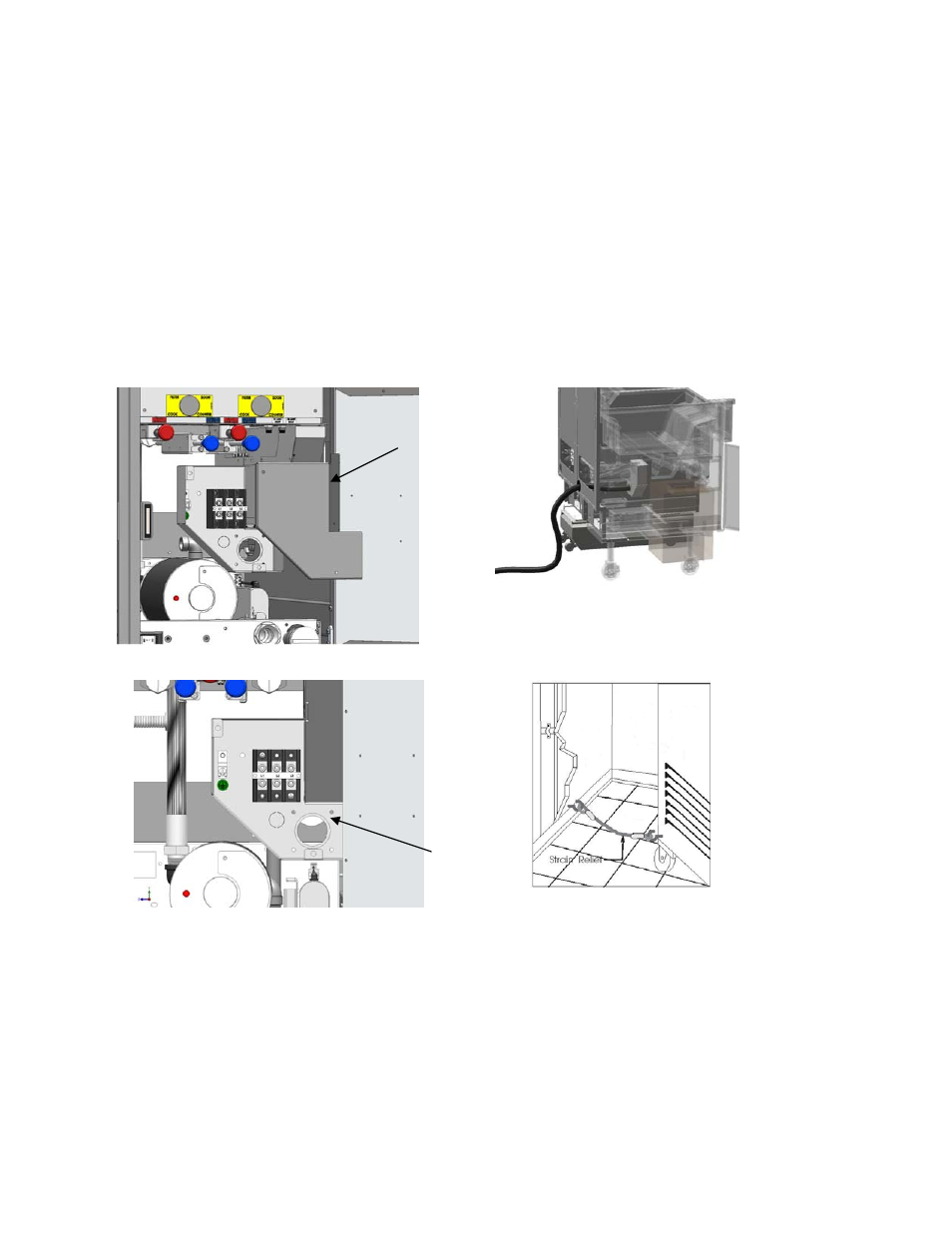

Figure 1.5.1 (Drain line removed for clarity)

Figure 1.5.2
Insert flexible conduit through cabinet as shown to
prevent contact with moving parts in fryer cabinet.

Figure 1.5.3 Wire housing strain relief hole. 2” or
1.75” diameter

Figure 1.5.4: Fryers on casters, or installed with
flexible conduit must have a restraint cable between
the fryer, and substantial building structure to
prevent strain on the electrical conduit.
