6

151555 Rev. A 07/12

MECHANICAL

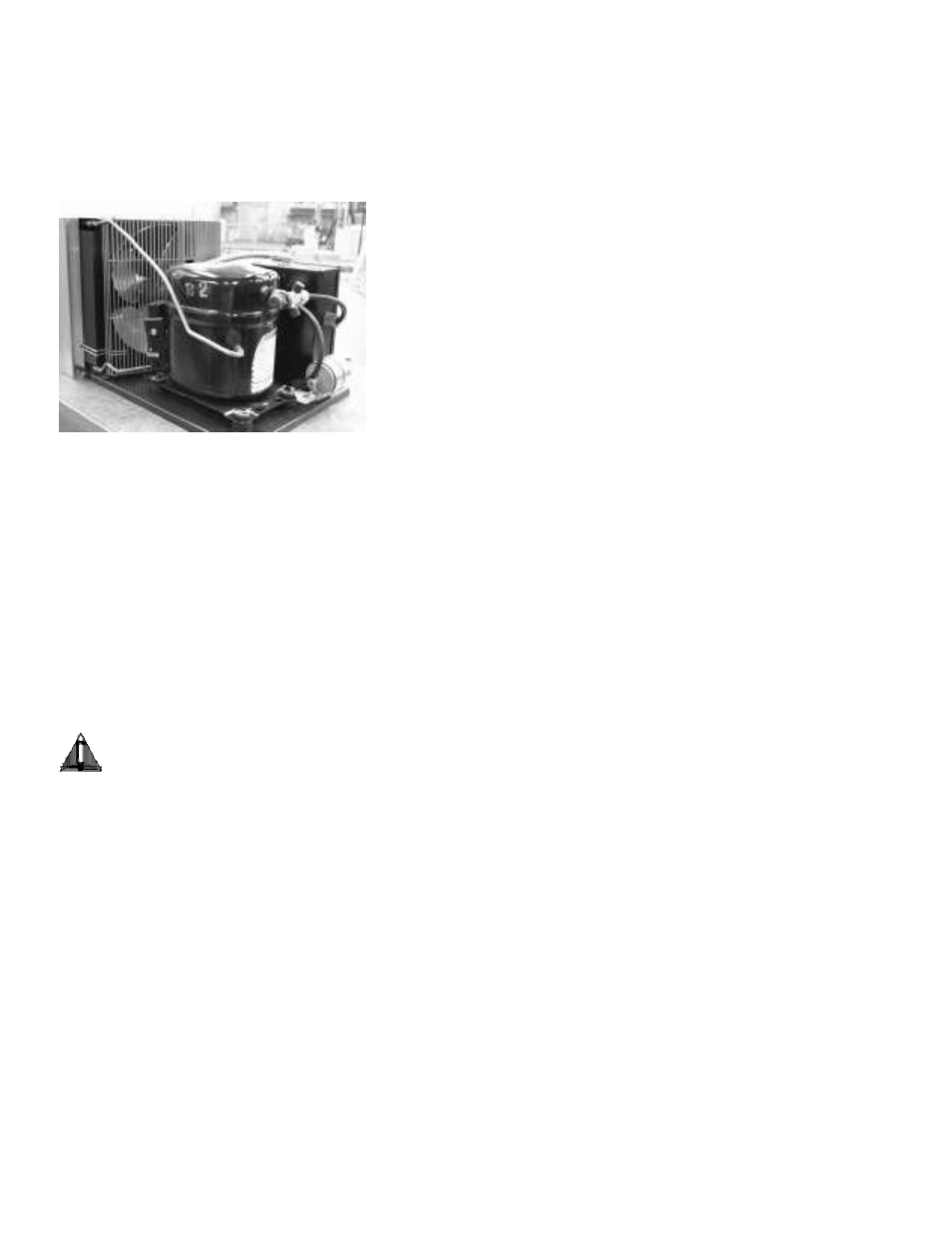

Remove front grille and check refrigeration lines to see that they are free (not touching each other or
compressor). Spin condenser fan blade to see that it is free.

Check for electrical wires that may have moved during shipping.


Remove cabinet from crate base and slide into location. Cabinet must be level from side to side and
front to back for correct draining of coil pan and for self-closing doors to operate correctly. Allow
minimum of 4” between back of cabinet and wall and between top of cabinet and ceiling for proper
condensing unit air circulation.

To comply with Sanitation requirements, the cabinet must be mounted on legs (6” high min.) or
casters or the base must be sealed to the floor with an NSF listed silicone sealant.

To comply with UL requirements, the cabinet must have a minimum clearance of 4” at the top, 6” at
the rear and 0” at each side.

ELECTRICAL

WARNING


Before servicing electrical components in the case or the doors or door frames, make sure all power
to case is ff. Always use a qualified technician.

Check voltage and amps drawn on to determine proper line and fuse or circuit breaker size. Check
power supply for low voltage. If voltage reads “230” with no load, and it drops below “207” when the
compressor tries to start, it is an indication of too small supply wiring or too long to run.

It is recommended that a separate circuit be run for each cabinet to prevent another appliance
blowing the fuse or breaker, causing loss of product. All circuit breaker to be “HACR” type or fuses to
be time delay type.


** The cabinet should be grounded. **
