Appendix 5 – Merrychef 402s User Manual
Page 43
402s Ovens Pt. No. 32Z3522 Issue 6
43
Display
Connecter
Relay PCB 15 way
Connecter
Motor speed
controller
Membrane panel
connector
MenuKey
Sockect
Connector
Door
Switch IP
Program
memory storage.
May be
exchanged
with New PCB if
PCB replaced.
D7 Power LED
Indicates Logic PCB
is powered
See Troubleshooting
Guide
Door switch
Indicator
ON when door
closed
Temp Calibration
Remote data
point
Spare input
not used
APPENDIX 5:
LOGIC

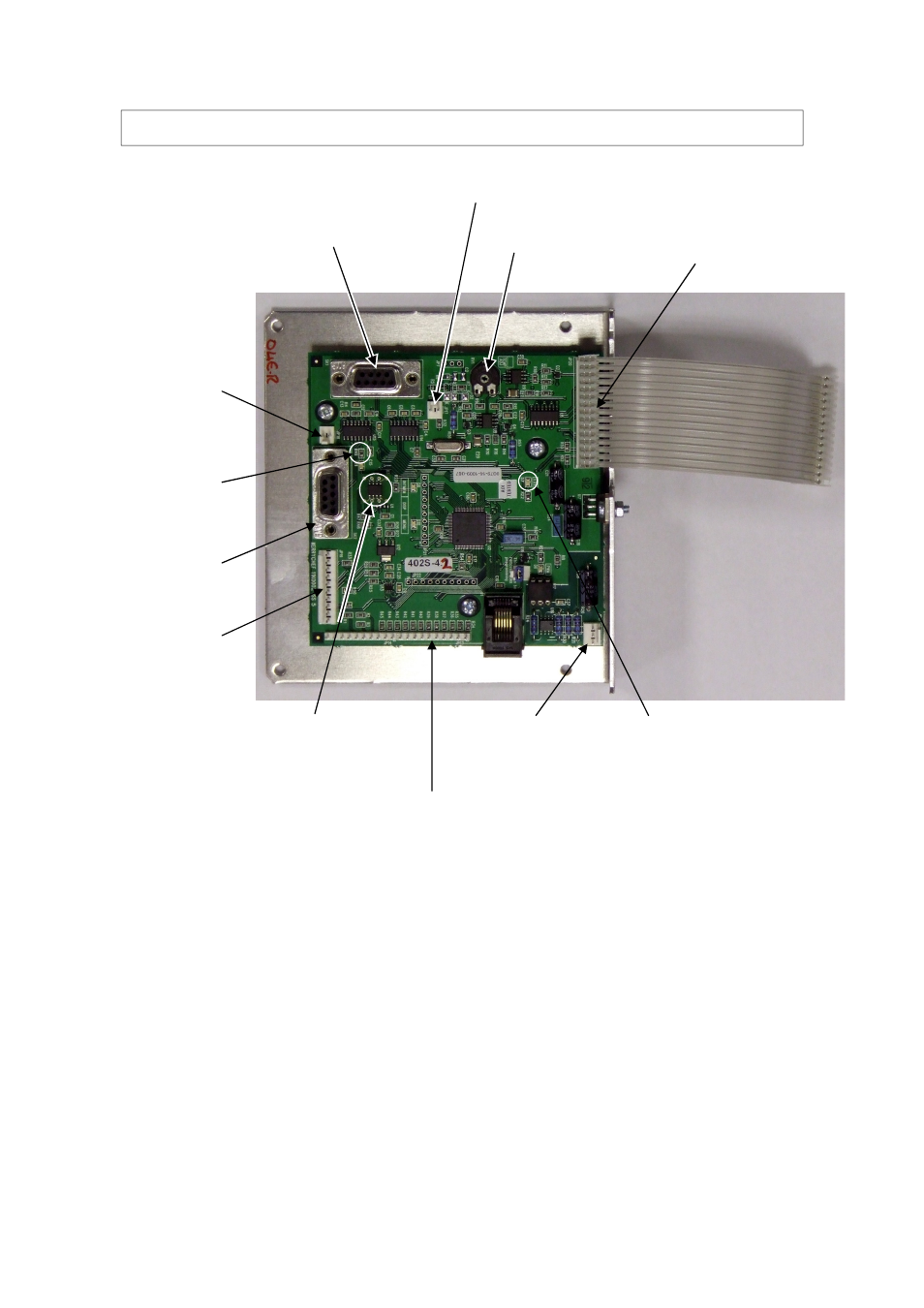

PCB Connection Points and key features.
