Page 10
402s Ovens Pt. No. 32Z3522 Issue 6
10

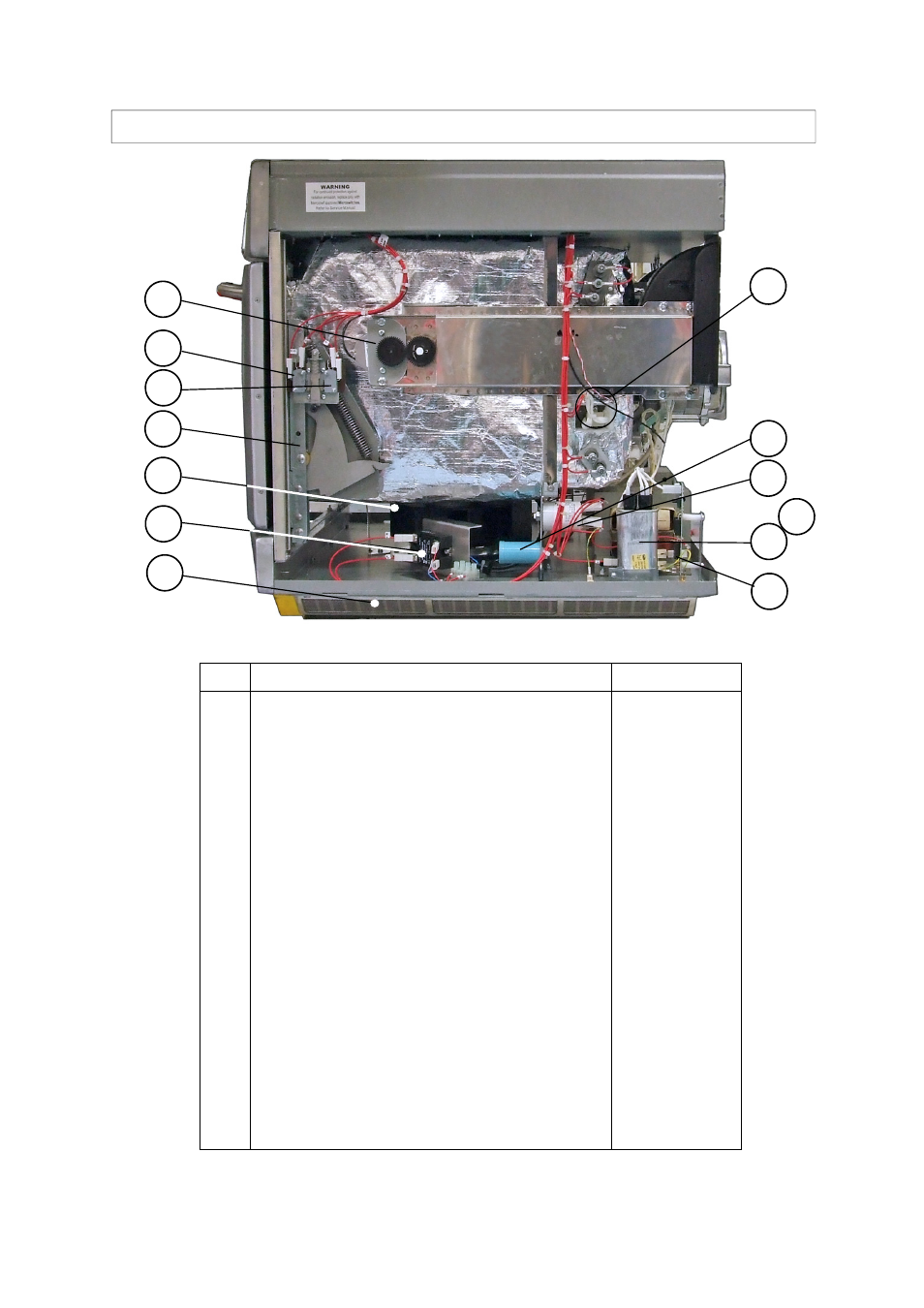

PRINCIPAL COMPONENTS: Right Side
No. Description
Part
No.
1
Cavity High limit Stat
30Z1024
2
Motor Start Capacitor 2µF ( Blue )
30Z1298
3 Filter
16A
30Z1340
4 Air
filter
SA276
5 Stirrer
motor
Assembly
SA288
5A Stirrer
(inside
cavity)
SA291
6 Microswitch
SW1
Microswitch SW2
30Z1294
7
Door Hinge Assembly RH
SA202
8
Magnetron Cooling Fan
30Z1295
25 HV Capacitor 2500V 0.88μF ( 60HZ models )
30Z1251
25A HV
Capacitor
clip
31Z1261
70
Fibre Optic Diode Board
11M0364
71 Solid
State
Relay
30Z1362
6A Microswitch
Assembly
SA212
5B Stirrer
Gear
DV0552
1
3
4
5
6
7
8
25
6
25A
2
70
71
