Principal components: left side – Merrychef 402s User Manual
Page 11
402s Ovens Pt. No. 32Z3522 Issue 6
11

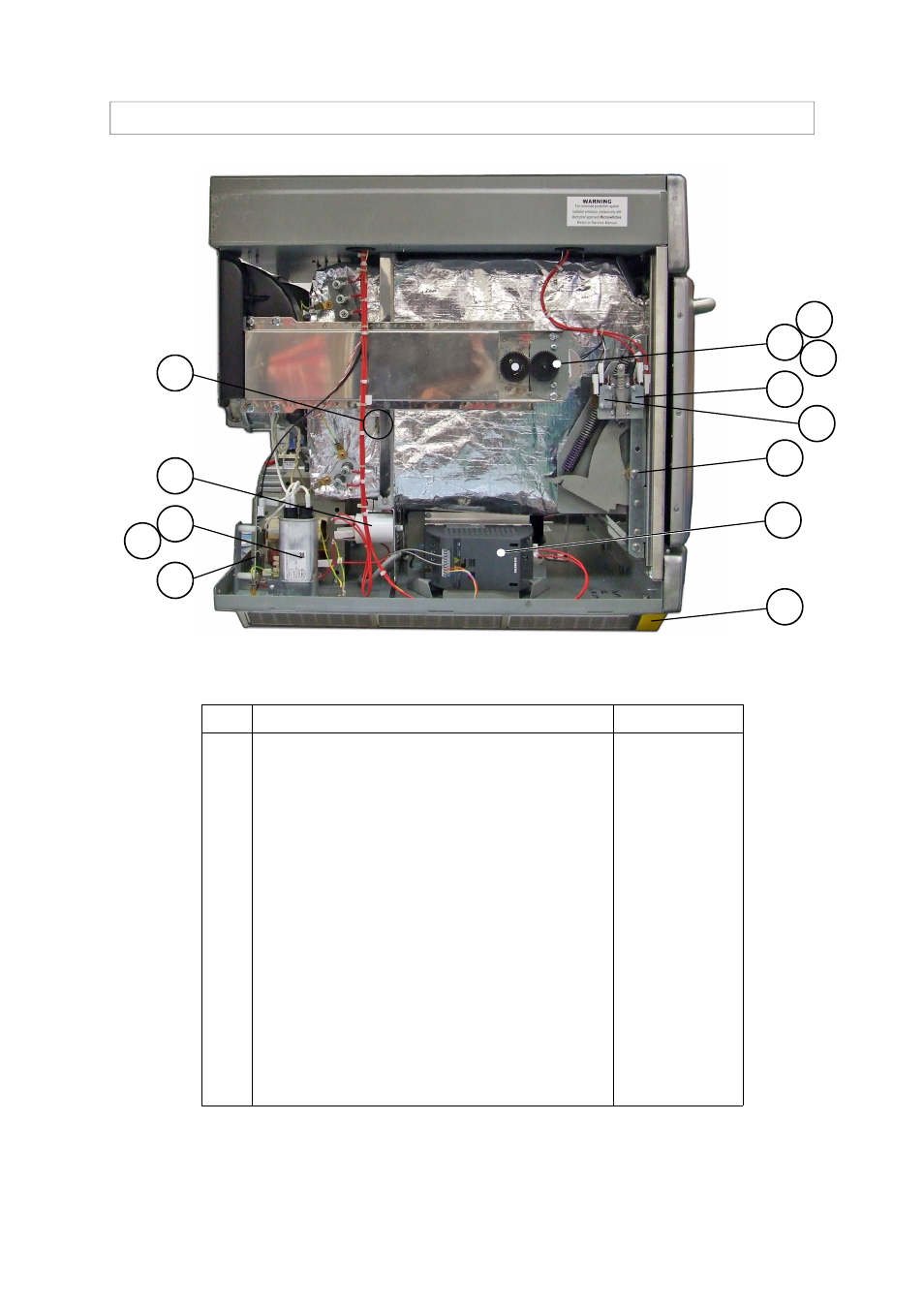

PRINCIPAL COMPONENTS: Left Side
No. Description
Part
No.
3 Filter
16A
30Z1340
4 Air
filter
SA276
5 Stirrer
motor
Assembly
SA288
5A Stirrer
(inside
cavity)
SA291
6 Microswitch
SW3
Microswitch SW4
30Z1294
9
Door Hinge Assembly LH
SA203
10 Motor
Controller
30Z1293
25 HV Capacitor 2500V 0.88μF ( 60Hz models )
30Z1251
25A HV Capacitor clip
31Z1261
6A Microswitch
Assembly
SA212
70 Fibre Optic Diode Board
11M0364
5B Stirrer
Gear
DV0552
3
25
25A
5
6
9
10
4
6
70
24
5B
5A
