Principal components: control box – Merrychef 402s User Manual
Page 12
402s Ovens Pt. No. 32Z3522 Issue 6
12

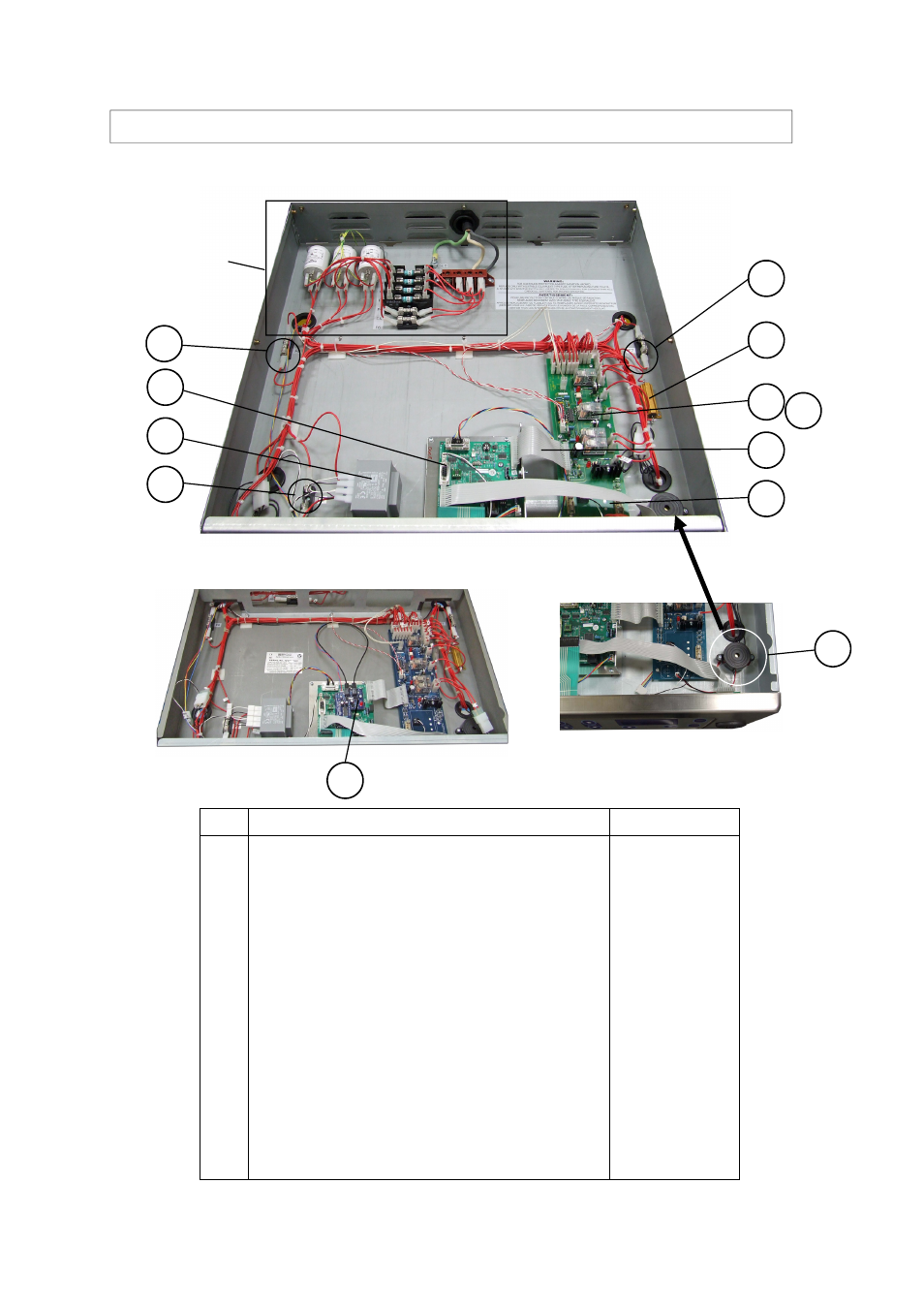

PRINCIPAL COMPONENTS: Control Box
No. Description Part
No.
11 Fuse
10A
HRC
30Z0217
12 Gold resistor ( 220R )
30Z0235
13 Relay PCB Assembly
11K0004
14 Ribbon Cable 15way
11Z0298
15 Ribbon Cable 10way MenuKey
11M0117
16 Logic PCB Assembly Version 2.0
SA231
16 Logic PCB Assembly Version 3.0
SA260
17 Transformer LT (Low voltage)
30Z1155
18 Fuse
1A
30Z0957
59 Sounder
SA257
72 Fibre Optic Logic PCB
11K0013
75 Relay PCB Fuse
30Z0470
11
13
12
14
15
18
17
16
See
Principal
components:
POWER
SUPPLY
11
59
72
13A
