Merrychef 402s - Manual (Page 11)

11
CAT 005
CAT 006
CAT 007
CAT 008
CAT 001
CAT 002
CAT 003
CAT 004
CATEGORIES
DISPLAY PANEL
Shows the principal functions of the oven.
When cooking, the time remaining counts down.
Also displays error messages and oven temperature.
When storing and recalling a program the display
indicates the program number and details.
FUNCTION PADS
The function pads select options shown in the DISPLAY
PANEL.

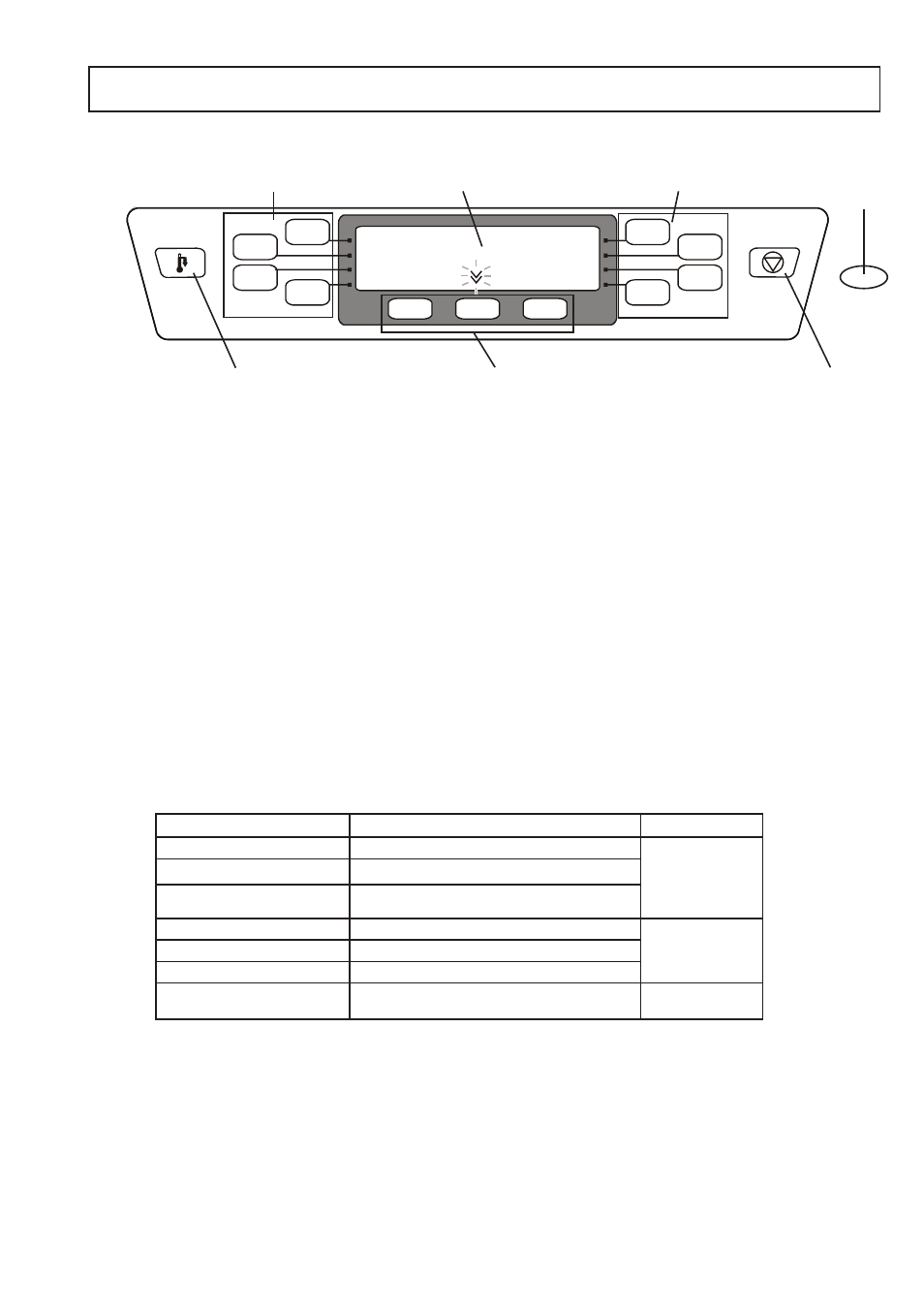

CONTROL PANEL
FUNCTION PADS DISPLAY PANEL MenuKeY
SOCKET
CANCEL PAD COOL DOWN
PAD
FUNCTION PADS
MenuKey 2
The MenuKey System automatically changes all the
cooking programs with an electronic key and allows
program names to be identified
COOL DOWN PAD
Puts the oven into Cool Down Mode, see Cleaning 2
page 21.
CANCEL PAD
Cancels all timed cooking cycles, pre-programmed
operations and stops the microwave energy. It does not
alter the oven temperature. If the oven is hot, food will
continue to cook and should be removed from the oven
immediately. This pad will also cancel any incorrect
operations. It will not erase programs.
FUNCTION PADS
Display Panel Error messages
Message Condition Possible cause
ERROR MAGNETRON 1 Magnetron 1 has overheated Blocked Air filter(s)
Oven located
near hot air sources
Oven being used empty
Call Service Engineer
ERROR MAGNETRON 2 Magnetron 2 has overheated
ERROR MAGNETRON 1 & 2 Magnetron 1 and 2 have overheated
MAGNETRON 1 FAILED Magnetron 1 has Failed Component failure
Call Service Engineer
MAGNETRON 2 FAILED Magnetron 2 has Failed
MAGNETRON 1 & 2 FAILED Magnetron 1 & 2 has Failed
CAVITY SENSOR ERROR Cavity temperature exceeds more than 50°C above
PREHEAT temperature setting during heat cycle
Indicates combustion
( fire ) in oven cavity
