AIR OUTLETS
These vents on the rear panels enable air which has
been used to cool internal components to escape. It
will not allow microwave energy to escape into the
environment. They must be kept free from obstruction.
OVEN CAVITY
The cavity is constructed from stainless steel and
vitreous enamelled panels. It must be kept clean
(see CLEANING).
CONVECTION FAN, GREASE FILTER & CATALYTIC
CONVERTOR
The convection fan, which is located behind the catalytic
convertor pulls air in through the filter which removes the
majority of the smoke from the air flow. The air is then
heated and returned to the cavity through the impinger
plates to produce an even heat pattern in the oven. This
layout minimises areas where grease build up can occur.
Great care should be taken when cleaning this area of
the oven - please note the cleaning requirements on see
CLEANING.
The metal grease filter grill covering the fan must be kept
clean and free of debris (See CLEANING)
AIR INLET FILTERS ( LEFT & RIGHT )
Situated at the left and right hand side of the base at the
front. These are part of the ventilation system and must
be kept free of obstruction and cleaned on a daily basis.
DOOR HANDLE
This is a rigid bar which is pulled downwards and
towards you to open.
CONTROL PANEL
See page 11.
ON/OFF SWITCH
When switched ON, the control panel will illuminate.
The fan and ventilation system will also operate.
RATING PLATE
Found on the rear panel, this states the serial
number, model type & electrical specifications.
DOOR
This is a precision-made energy barrier with three
microwave safety interlocks. It must be kept clean
(see CLEANING section). The door should NOT be
used to support heavy dishes.
DOOR SEALS
These ensure a tight seal around the door. They
should be kept clean and checked regularly for signs
of damage. At the first sign of wear they should be
replaced by a Merrychef approved Service Agent.
STEAM VENT (on rear of oven)
This enables steam to escape and prevents build up
of condensation. It will not allow microwave energy to
escape.
MenuKey 2
Changes the programs on the oven ( See MenuKey
section for downloading programs on a MenuKey).
RACK
Should be removed daily for cleaning
(see CLEANING section).
1
2
3
4
5
7
8
9
10
11
12
6
13

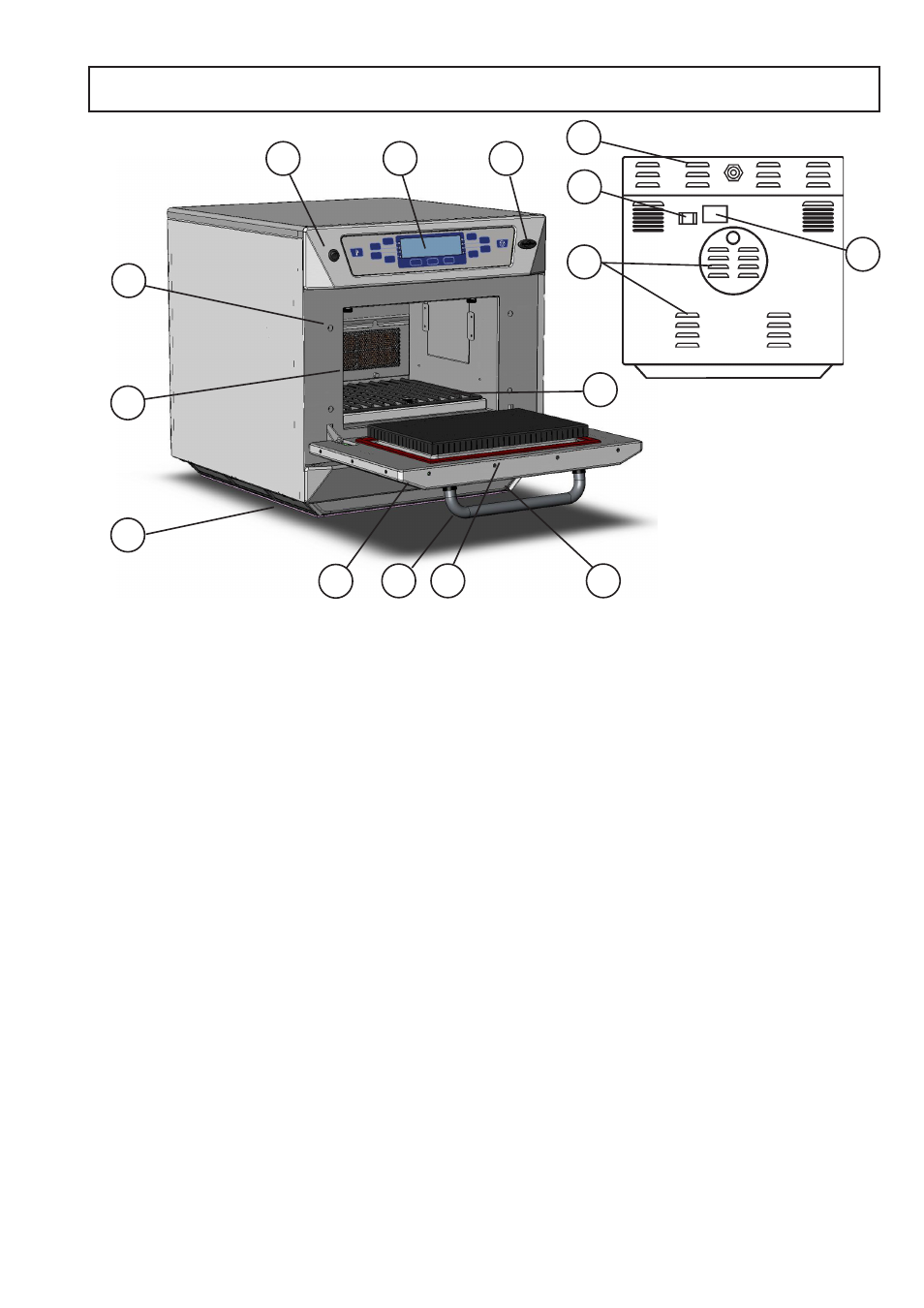

MAIN FEATURES
