Chapter 4 Setting Up Static IP

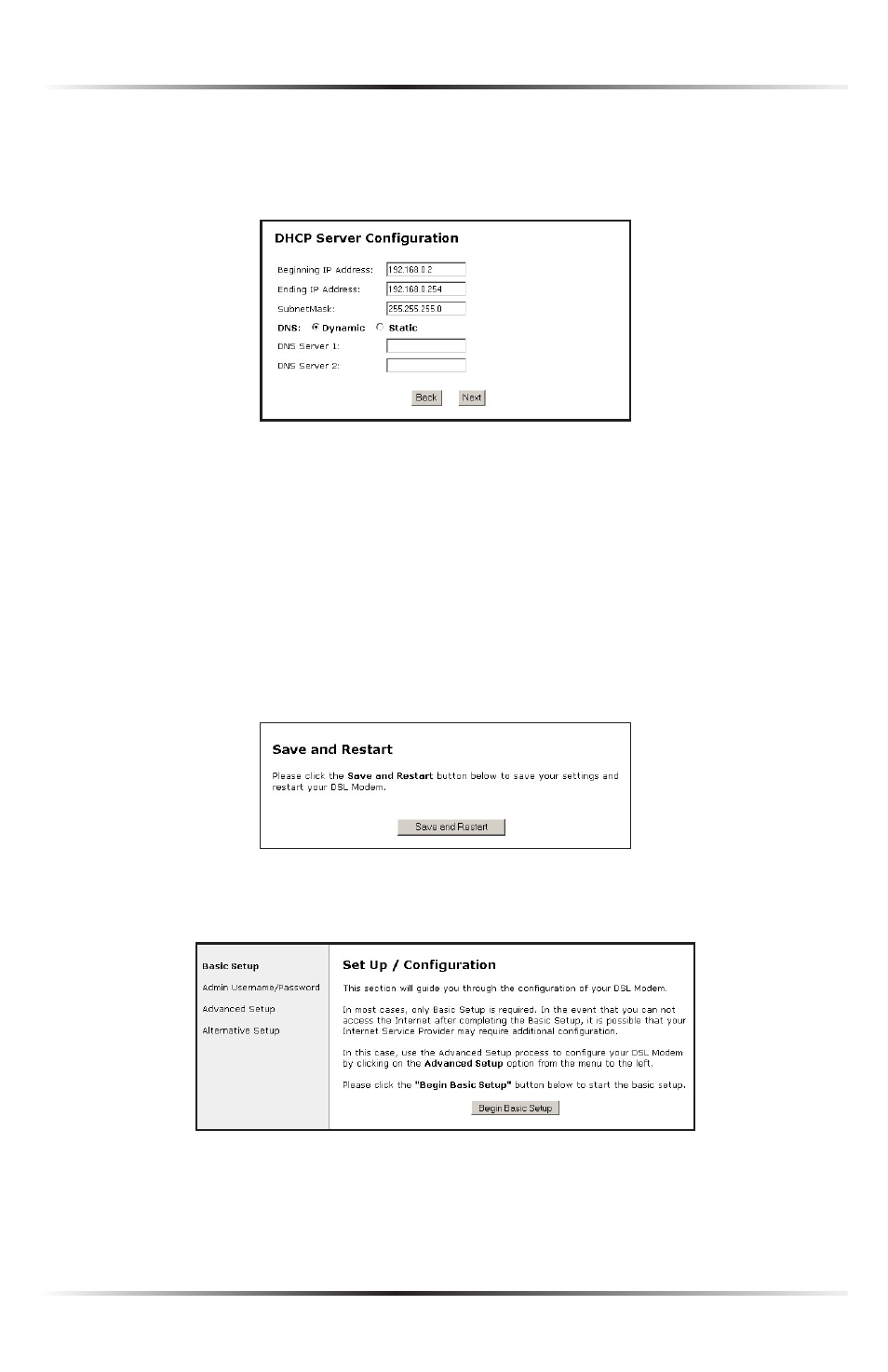

9. In the “ DHCP Server Configuration” screen, select “Static” from the
“ DNS ” options near the center of the screen, then enter the DNS Server IP
addresses assigned by the ISP in the appropriate text boxes.
☞
Note: If the ISP did not provide static DNS addresses, leave the
DNS option at “Dynamic.” Also, if the DHCP
server option
is turned off, this screen will not appear. The Modem will
obtain dynamically assigned
DNS
addresses if supported by
the
ISP
with static
IP
addresses.
10. Click “Save and Restart” from the menu on the left side.
11. The “Save and Restart” page appears. Click “Save and Restart” to save the set-
tings changed in the Actiontec DSL Modem Setup Page screen.
12. Once the Modem restarts, return to the Setup/Configuration screen and select
Change Admin Password from the menu on the left side.
