22
Actiontec DSL Modem User Manual
23
Chapter 4 Setting Up Static IP

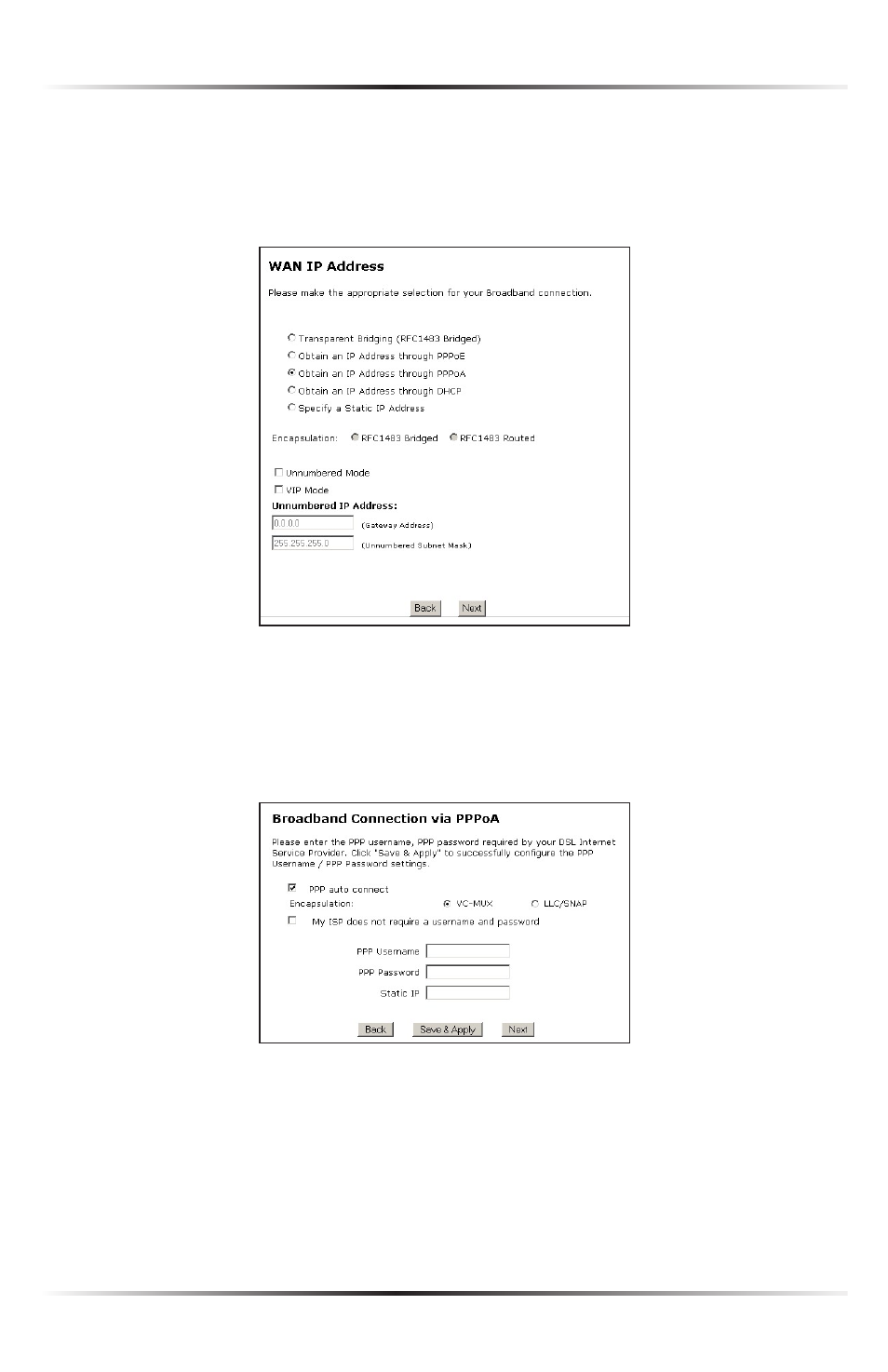

6. Select “Obtain an IP Address through PPP o A ,” select “Unnumbered Mode,”
then enter the gateway and subnet mask addresses assigned by the ISP in the
“Gateway Address” and “Unnumbered Subnet Mask” text boxes, respectively.
These addresses should be included on the
ISP worksheet. Click Next.
7. A window appears, stating the Modem needs to rebooted. Reboot the Modem.
8. After the Modem reboots, return to the the “Broadband Connection via
PPP o A ” screen and enter the user name and password assigned by the ISP in
the appropriate text boxes, then click Next four times.
