Actiontec electronic DSL Modem GT701WG-QW04 - Manual (Page 18)

12
Actiontec DSL Modem User Manual
13
Chapter 3 Performing a Basic Setup

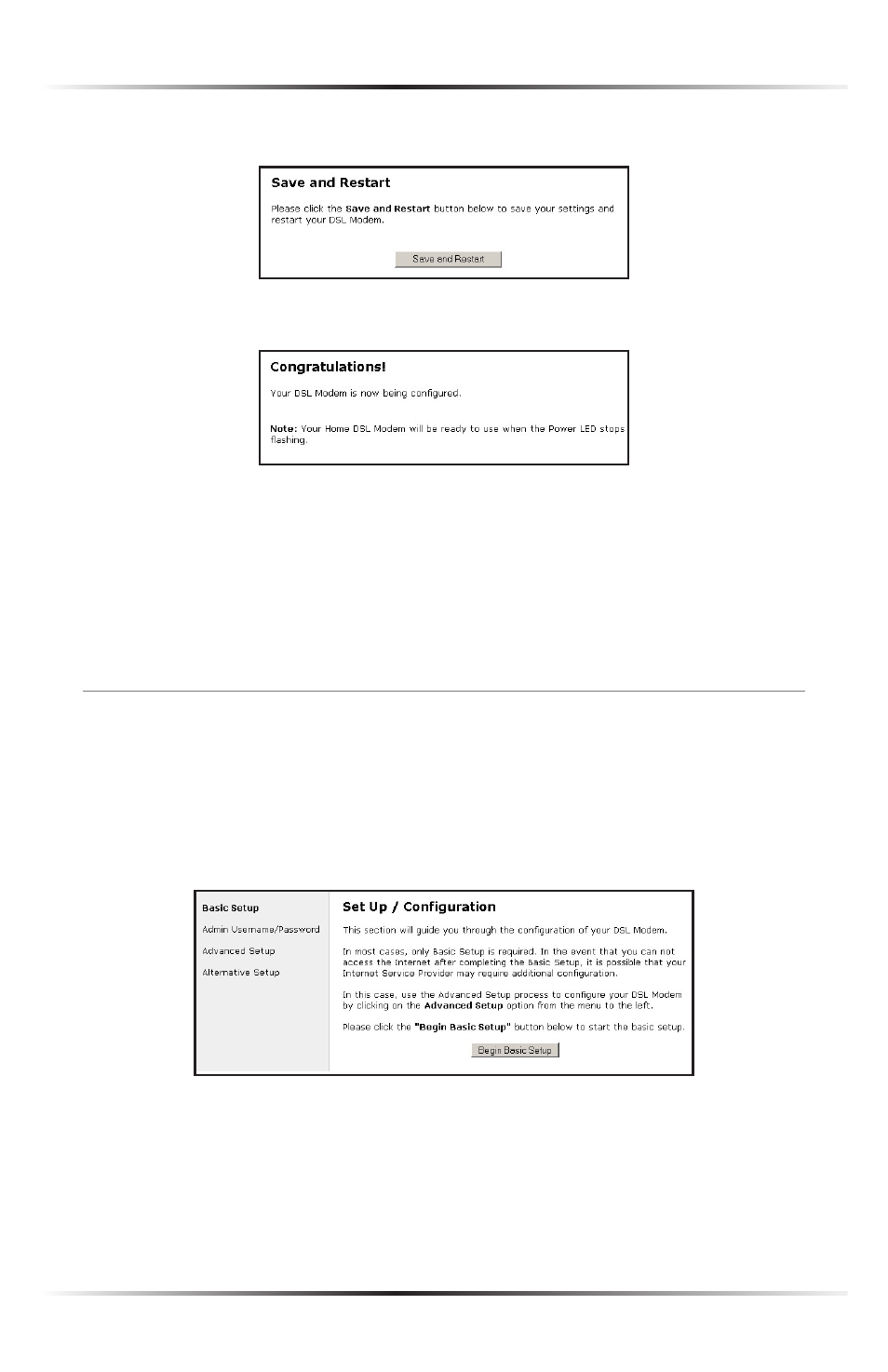

6. Click Save and Restart in the “Save and Restart” screen.
7. The “Congratulations” screen appears. The Modem is successfully configured.
The Power light flashes rapidly while the Modem restarts, then glows steadily
green when fully operational. The Internet light will also glow steadily green. The
Modem is now configured and users can start surfing the Web.
If an error stating the Web browser was unable to connect to the Internet appears,
check the configuration settings. Ensure all the information required by the
ISP is
entered correctly.
Changing the User Name and Password
To create or change the user name and password controlling access to the Modem’s
Web Configuration screens, follow these instructions:
1. From the Setup/Configuration screen, select Admin Username/Password
from the menu on the left side.
