Operation window
The recorder can be operated using the provided mouse connected to the mouse connection port on the front
side of the recorder. When operating the recorder using a web browser, refer to "Configure the network set-
tings" (☞ page 52)

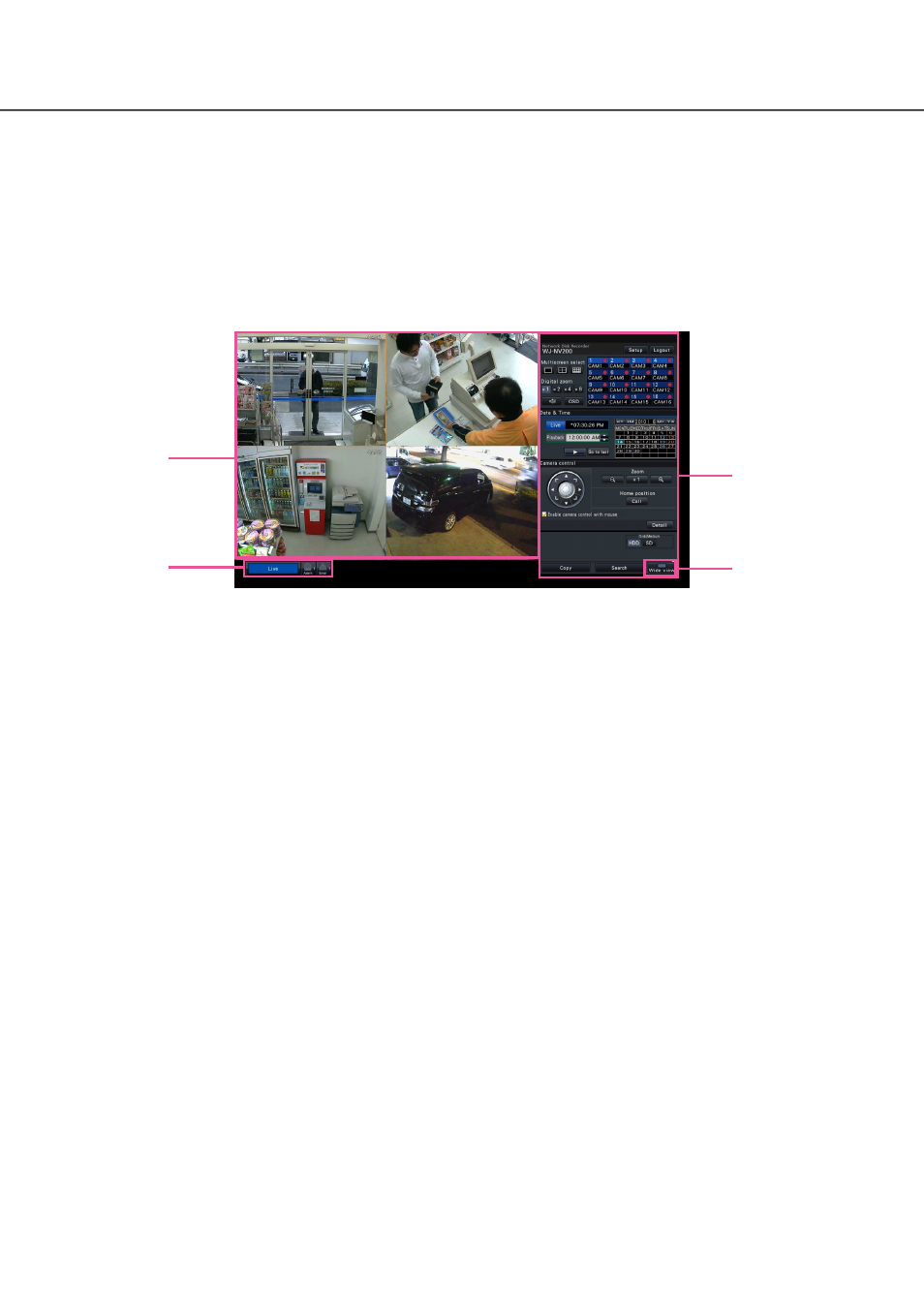

Ctrl (control) screen display
The control screen is the default screen at startup. The main operations of the recorder are performed from this
screen.
q Image display area
Displays images from the camera. (☞ Page 18)
w Status display panel
Displays the statuses of the recorder. Also dis-
plays alarm/error status and remedies.
(☞ Page 13)
e Operation panel
Used to switch between screens, to play back
recordings, operate the camera and so on.
Displays the current date and time. While summer
time is activated, the time will be displayed with
an asterisk (*).
r [Wide view] button
Switches the main monitor to wide view display.
