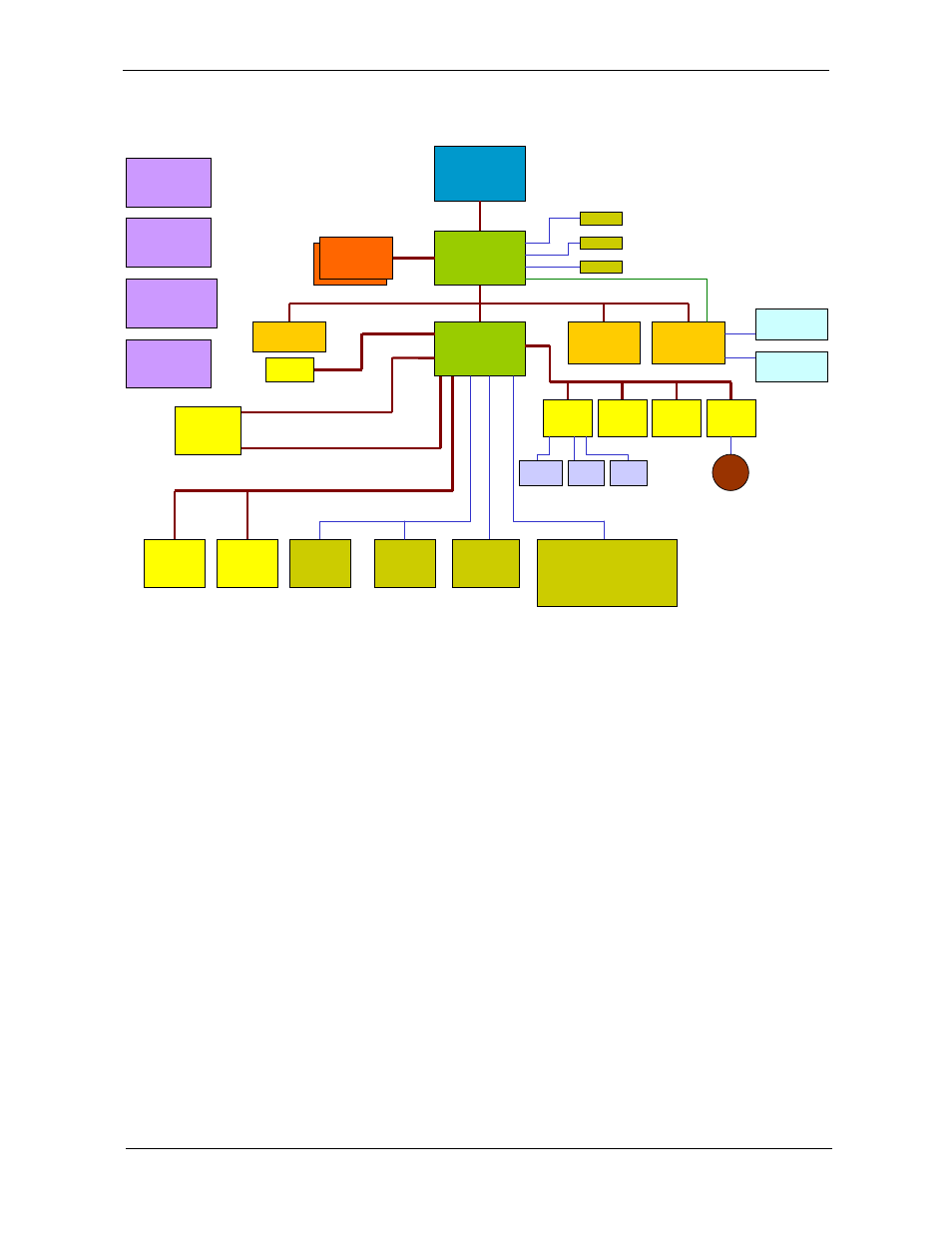

System Block Diagram
CPU
COPPERMINE
700/750 MHz
North Bridge
ALi M1632M-U
South Bridge
ALi M1535
SDRAM
SO-DIMM*2
100 MHz
HOST BUS
100 MHz
LAN/802.11
MiniPCI
PCI BUS 33 MHz
IEEE
1394
TI TSB43LV22
CARDBUS
TARZAN
LCD
CRT
TV
KBC
M38867
BIOS
ROM DEBUG
PORT
RTC
BQ3285LF
ZV PORT
SMART CARD
SLOT * 1
CARDBUS
SLOT * 2
XD BUS
HDD
COMBO
CD-ROM
FDD
IDEP
IDES
IDE BUS
Ultra 66
FDD
AC-LINK
MODEM
Daughter
Card
AC 97
Codec
USB
PORT
BLUE
TOOTH
FIR
CONNECTOR
PORT REPLICATOR
COM Port PS2
Serial Port EXT KB
Audio Jack CRT
USB 0,1 TV
MODEM LAN
TouchPad
PS/2
PORT
INT
KB
BAT
CPU CORE
Regulator
CLOCK
Generator
Power & DC-DC
Regulator
Battery
Charger
