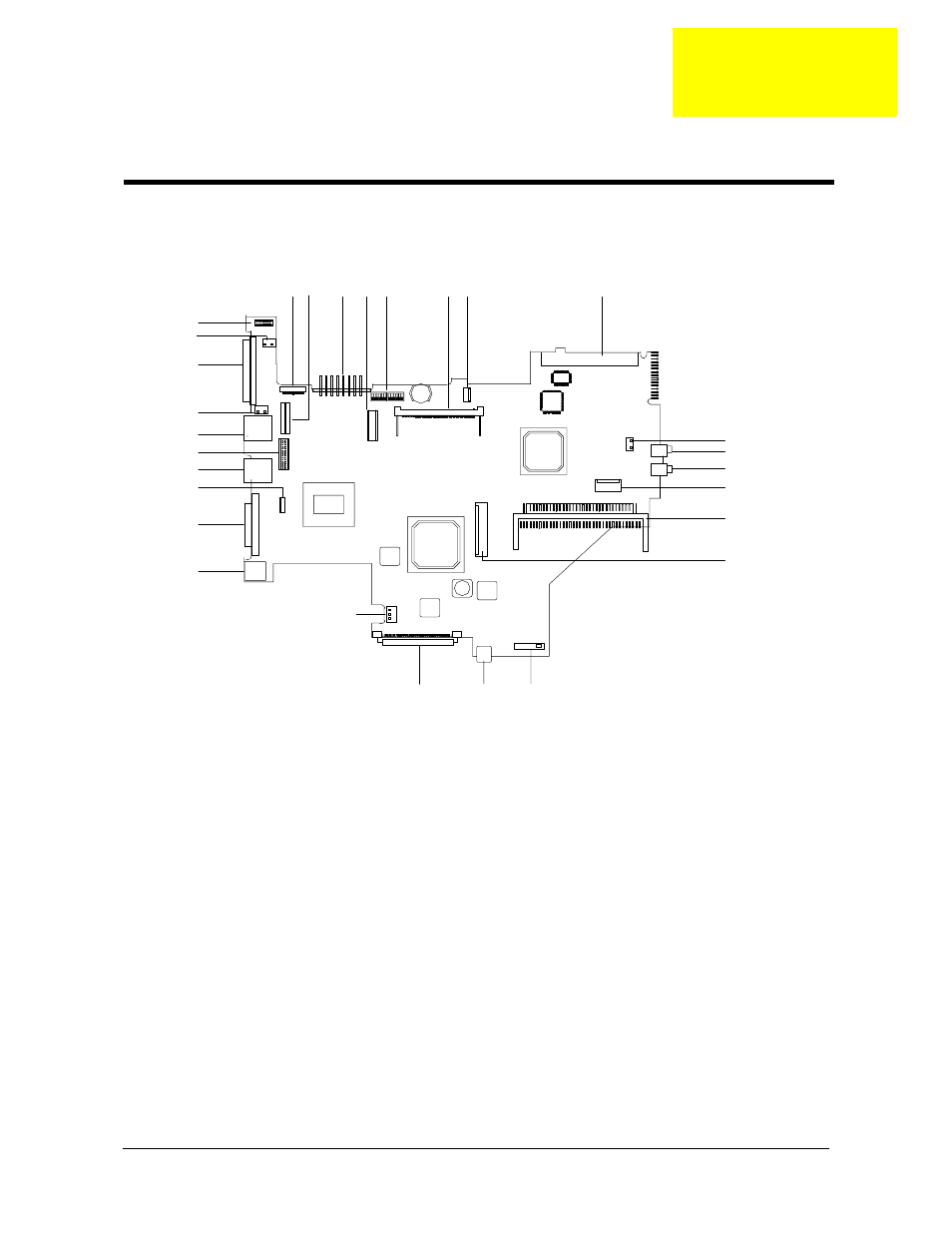

Top View
CN 1 DC-in port CN 17 Modem board connector
CN 2 External monitor port K6 Mini PCI socket
CN 3 LAN port CN 18 Touch PAD connector
CN 4 Modem port CN 22 Hard disk drive connector
CN 5 RJ45 connector CN 24 Internal MIC connector
CN 6 Expansion port CN 26 Line-in jack/external MIC jack
CN 7 LCD signal connector CN 25 Speaker/Headphone-out jack
CN 8 2NT/speaker connector CN 23 Smart Card connector
CN 9 USB daughter board connector CN 21 PCMCIA socket connector
CN 10 Inverter connector CN 20 Keyboard connector
CN 11 LED connector CN 19 IEEE 1394 port
CN 12 BlueTooth connector CN 16 EasyLink Combo Drive port
CN 13 Battery module connector SW2 Power switch
CN 15 FAN connector
CN8
SW2 CN19
CN5
CN4
CN16
CN15
CN9
CN6
CN7
CN2
CN1
CN3
CN10
K6 CN11 CN12 CN22 CN18
CN20
CN21
CN23
CN25
CN26
CN24
CN13CN17SW3
