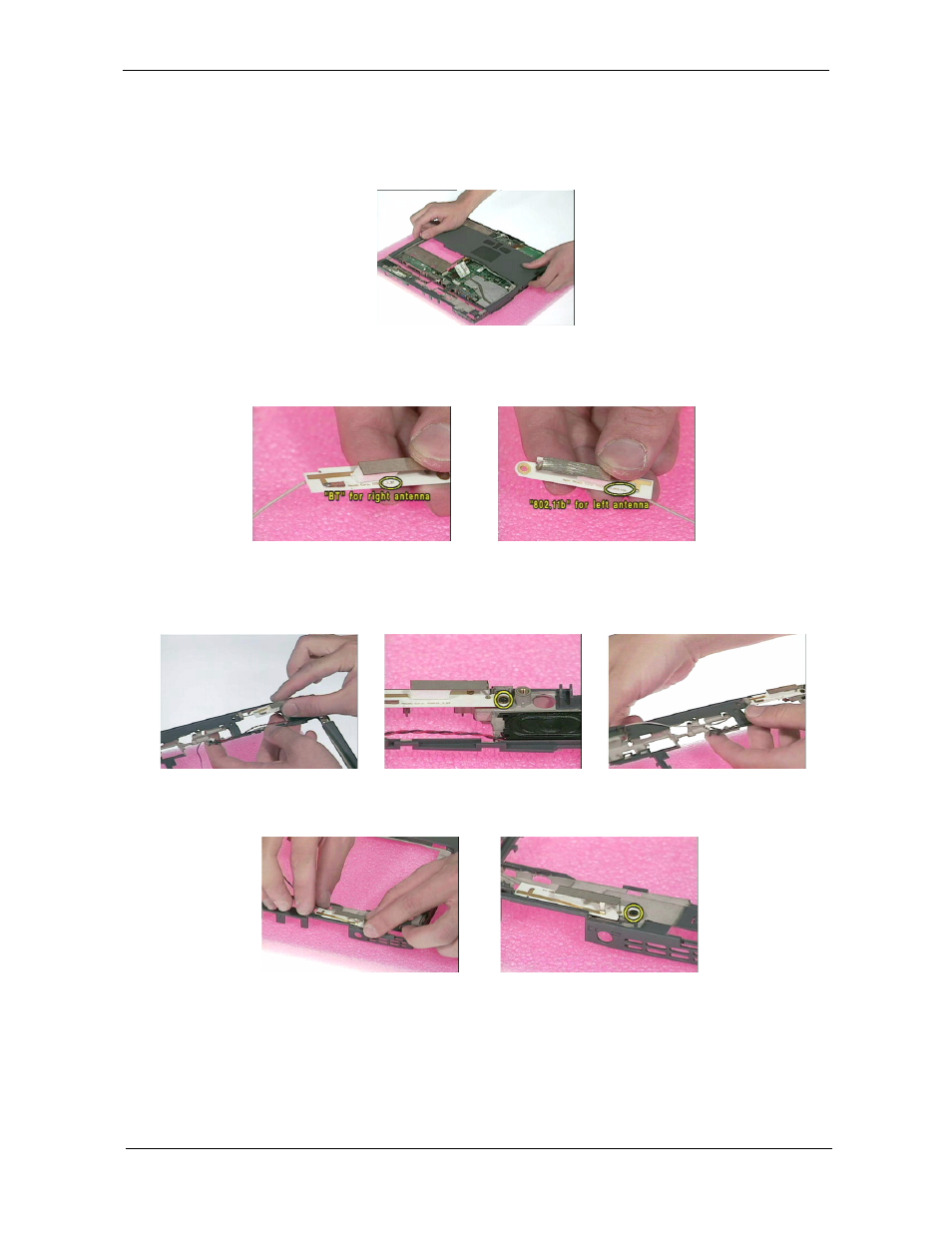

Base Unit to Wireless LAN Unit
1.
To upgrade the system to from Base Unit to Wireless LAN Unit, first detach the upper case from the main
unit carefully.
2.
Note that the one marked with BT is for the right antenna and the one marked with 802.11b is for the left
antenna.
3.
Attach the right antenna to the upper case and secure it with a screw.
4.
Ensure that the RF cable is arrange well.
5.
Attach the left antenna to the upper case and secure it with a screw.
