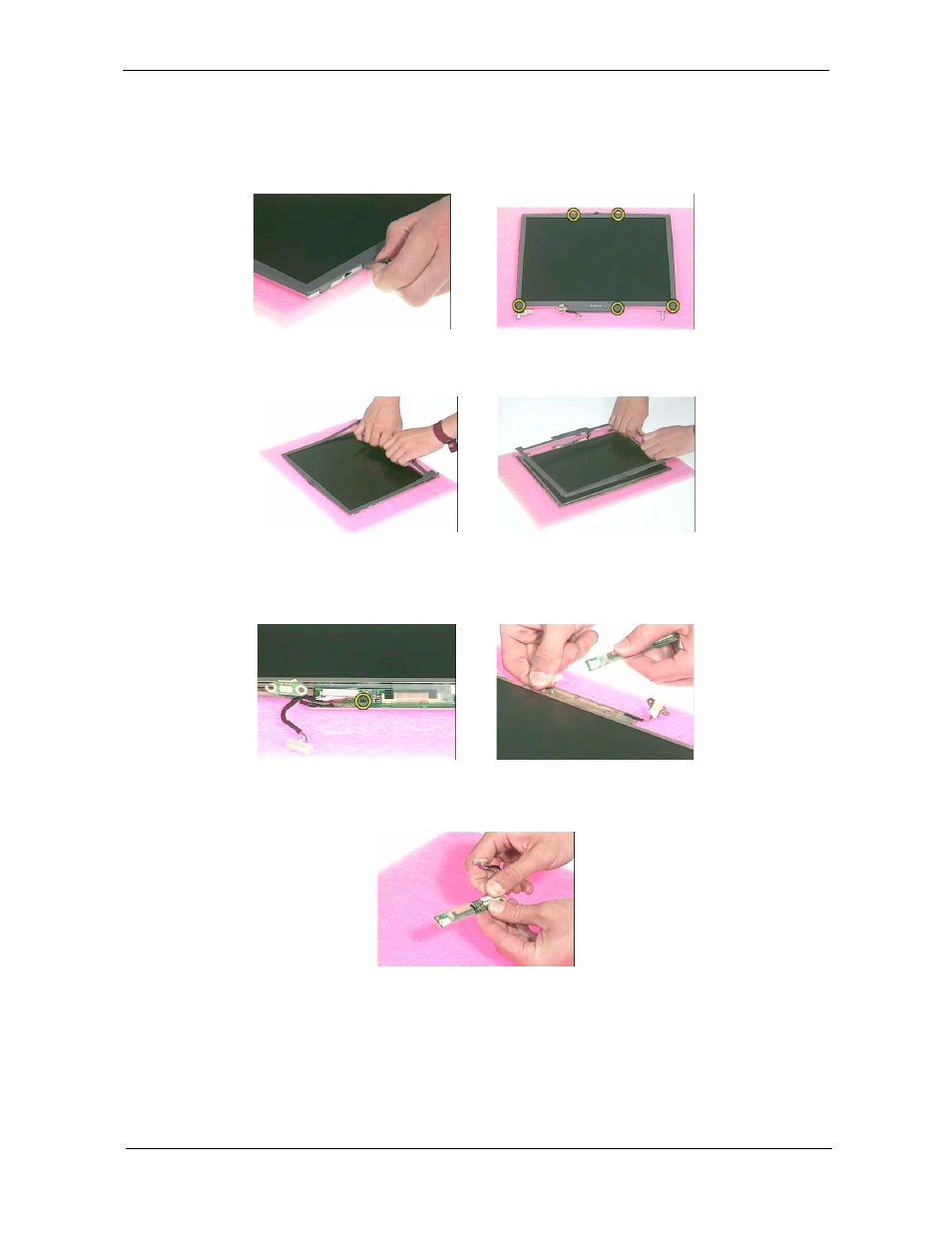

Disassembling the LCD Module
1.
Remove the view capture kit rubber cover from each side of the LCD module.
2.
Remove five LCD cushions and then five screws from the LCD bezel.
3.
Snap off the LCD bezel carefully then remove the LCD bezel from the module.
4.
Remove the screw from the inverter.
5.
Disconnect the LCD power cable from the inverter and then remove the inverter from the LCD module.
6.
Disconnect the inverter cable from the inverter.
