Aiphone SBX-LSE - Manual (Page 2)

SBX-LSE Instr.
0610JD
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
Toll Free Technical Support:
1-800-692-0200
E-mail [email protected]

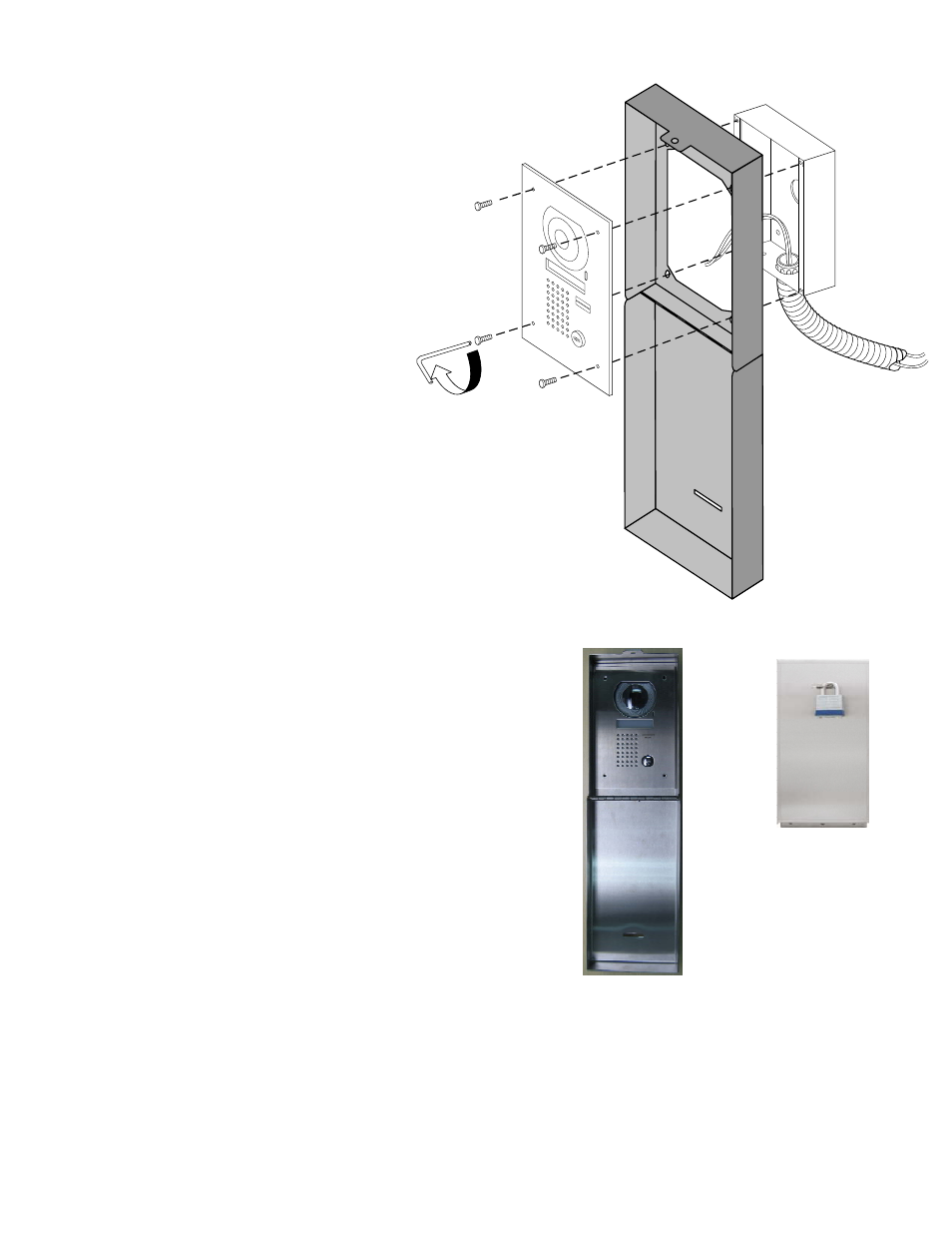

1. Install flush mount backbox per JF/JK-
DVF standard instructions.
2. Pass door station wiring through the
center of the SBX-LSE and attach to
door station.
3. Secure the SBX-LSE and JF/JK-DVF to
the flush mount backbox using the
included security screws.
JF/JK-DVF MOUNTING INSTRUCTIONS:
NOTE: Customer is to provide a
security lock of their choosing to lock
the panel in the closed position when
the system is not in use. When in the
open position, the padlock can be
secured to the “L” bracket.
SPECIFICATIONS:
Mounting: JF/JK-DVF mounting box,
with MKW-P for 1-gang box
or surface mount directly to
wall surface
Material: 18-Gauge Stainless Steel
Color: Polished Stainless Steel
Dimensions (HxWxD):
Closed- 11-1/4” x 5-7/8” x 1-9/16"
Open- 20-3/8" x 5-7/8" x 1-9/16"
Interior Depth: 1-1/2”
SBX-LSE Closed
SBX-LSE open w/camera
