Chapter 3
Standard Disassembly Procedure
This section tells you how to disassemble the system when you need to perform system service. Please also
refer to the disassembly video, if available.
CAUTION: Before you proceed, make sure you have turned off the system and all peripherals connected to it.

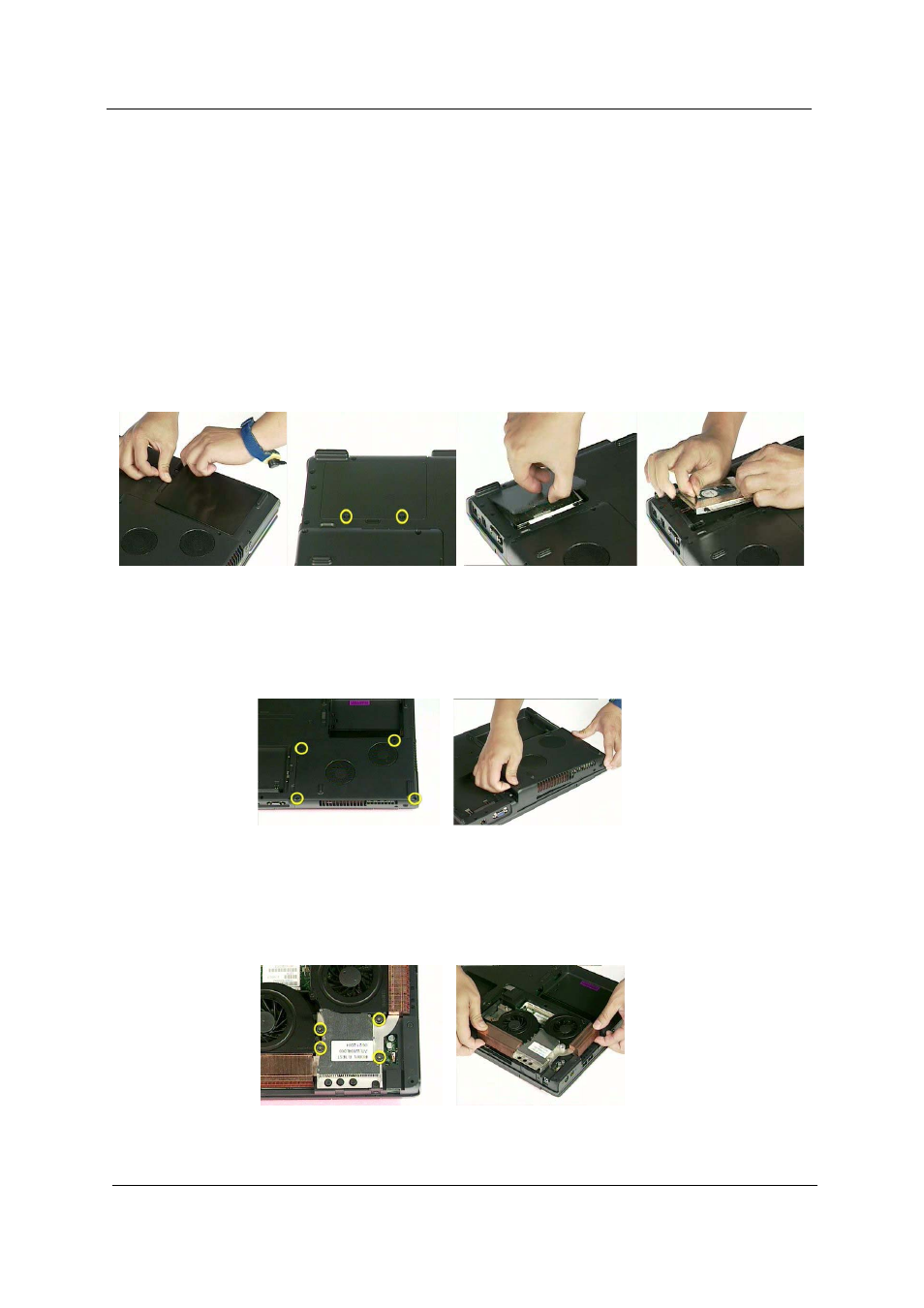

Disassemble the Battery and HDD
1.
Now let’s begin to disassemble the main unit.
2.
Slide the battery latch and remove the battery.
3.
Remove two screws that secure the HDD cover.
4.
Remove the HDD cover.
5.
Hold the black Mylar, push the HDD detached, and remove the HDD module
Remove the Thermal Door
1.
Remove the four screws that secure the thermal door.
2.
Remove the thermal door.
Remove the Thermal Module
1.
Remove the three screws that secure the thermal module.
2.
Remove the thermal module.
