Removing the thermal module and cpu – Acer 5510 User Manual
Page 52
Chapter 3
46
5.
Pop up the memory then remove it.
6.
Disconnect the auxiliary and the main wireless antennae.
7.
Pop the wireless LAN card then remove it.
.

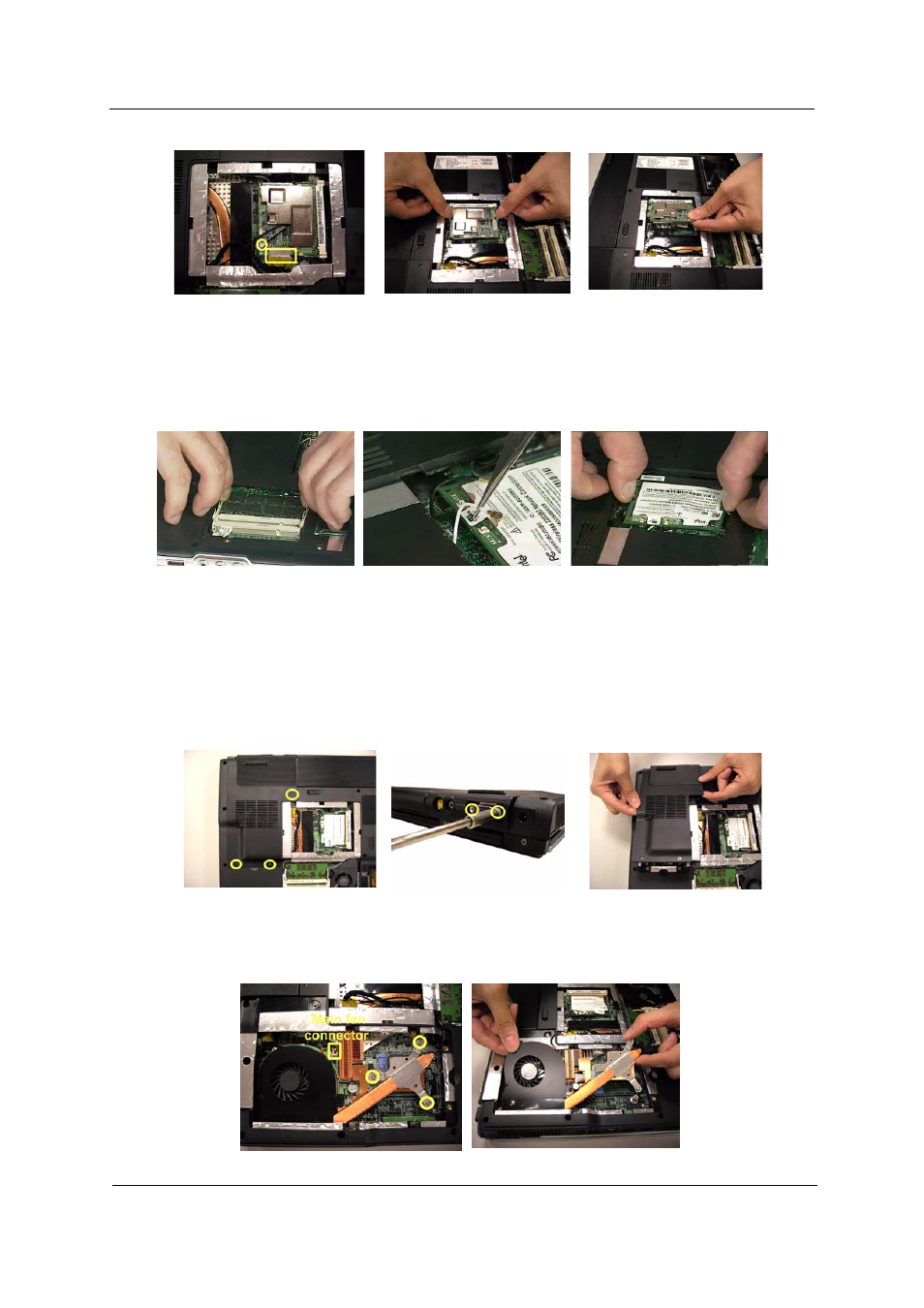

Removing the Thermal Module and CPU
1.
Remove the three screws that secure the heatsink cover.
2.
Remove another two screws on rear side with hex screwdriver.
3.
Remove the heatsink cover.
4.
Remove the three screws that secure the thermal module.
5.
Disconnect the fan cable.
