Chapter 3
Removing the HDD Module/the Memory and the Wireless LAN Card/the
Thermal Module and the CPU/ODD Module and LCD Module

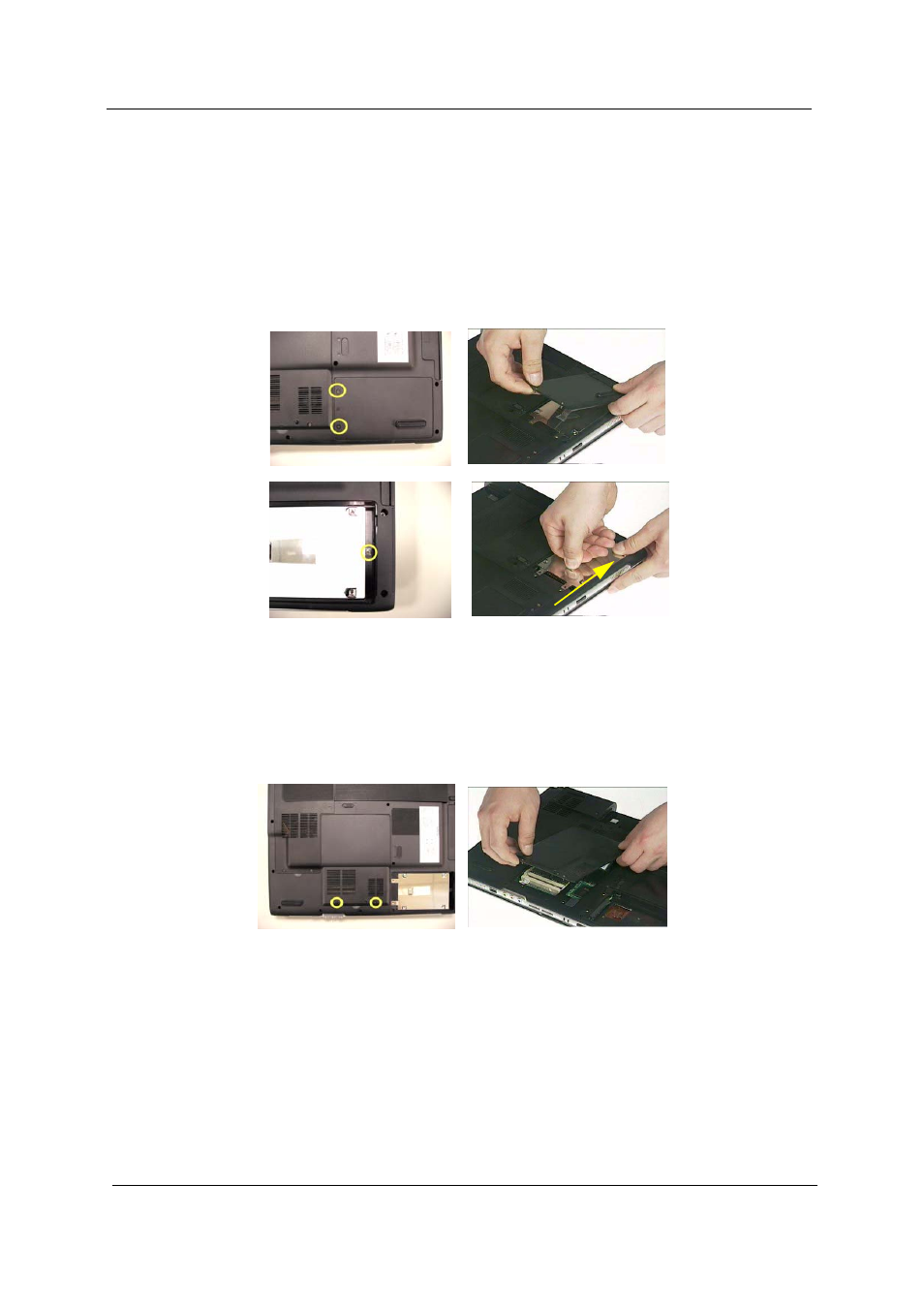

Removing the HDD Module
1.
Remove the two screws holding the HDD cover.
2.
Remove the HDD cover.
3.
Detach the HDD module then remove it.
Removing the Memory and the Wireless LAN Card
1.
Remove the two screws that secure the RAM/Wireless cover.
2.
Remove the RAM/Wireless cover.
3.
Disconnect the TV tuner cable and the antenna from the TV tuner board.
4.
Pop up the TV tuner board and remove it.
