- 8 -
1 Power lamp ( l 12 , 15 )
2 Access lamp ( l 14 )
3 Wi-Fi ® /WPS button [ ] ( l 17 , 35 , 40 ,
41 , 53 )
Wi-Fi mode lamp ( l 17 , 35 , 40 , 41 , 53 )
Switches to Wi-Fi mode. Each press of the
button switches the lamp.
≥ [
]: Smartphone mode
≥ [ ]: Live broadcasting mode
≥ [ ]: Access point mode
≥ Off: Wi-Fi mode is turned off
4 Wi-Fi Transmitter
5 Power button [ ] ( l 15 , 53 )
6 Recording start/stop button ( l 22 )
7 Photoshot button [ ] ( l 22 )
8 Hold button [ ]
Hold lamp [ ]
9 Camera ( l 10 )
10 Lens ( l 4 )
11 Mic
12 Camera/main unit connection cable
≥ This cable is not removable.
13 Speaker
14 LOCK switch ( l 4 , 11 , 14 )
15 Side cover ( l 4 , 11 , 14 )
16 USB terminal [ ] ( l 11 )
17 Reset button [RESET]
≥ If this unit fails to operate correctly, such as
when this unit cannot be turned on/off, press
the reset button by using a paper clip or a
similar object.
18 Card slot ( l 14 )

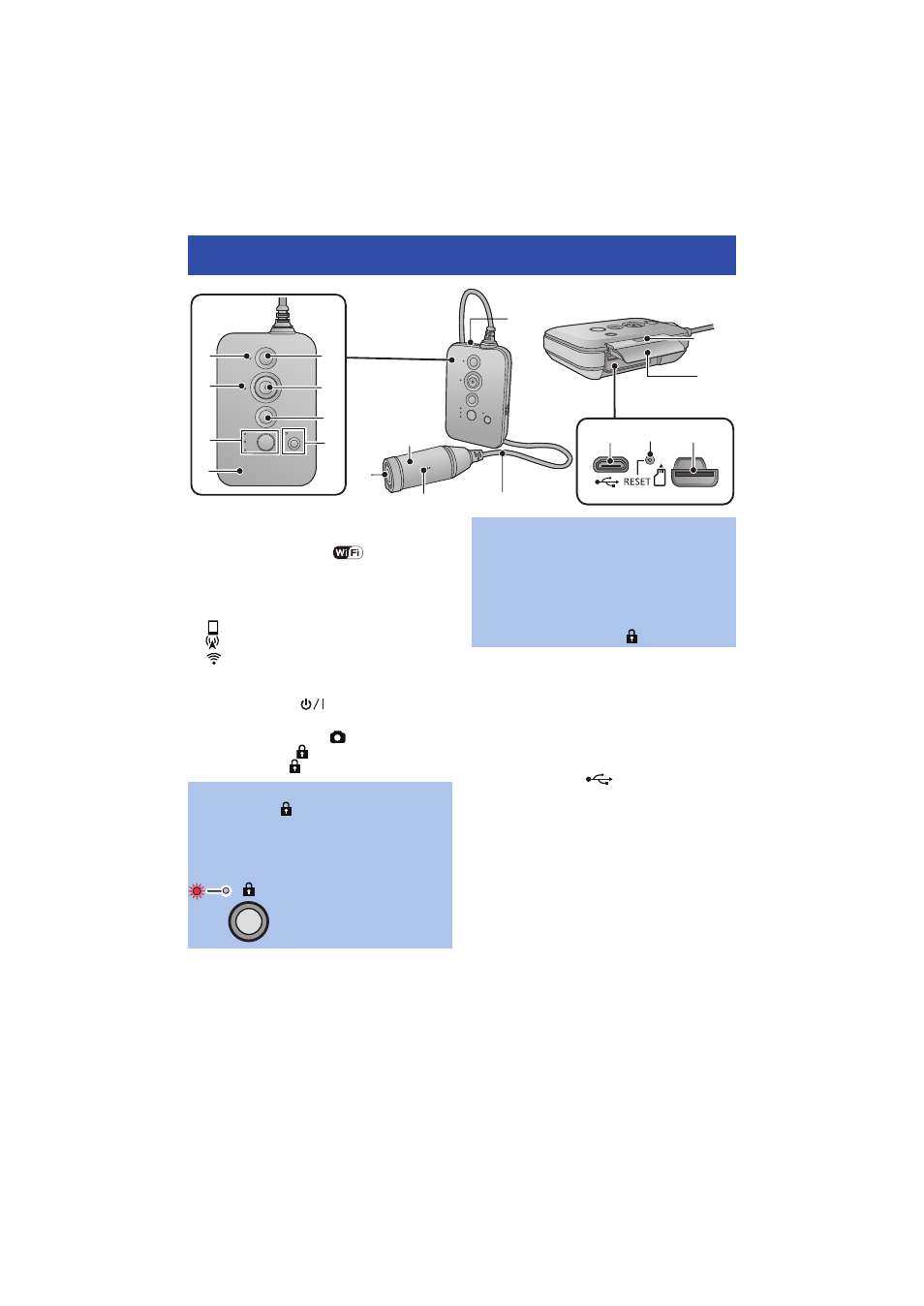

Names and Functions of Main Parts
9
10
11 12
13
15
14
5
6
7
8 3
4
2
1
16 17 18
Main unit
Camera
unit
Hold function
The lock lamp [
] lights up, and the
operation buttons on this unit are locked.
≥ Even when the operation buttons are
locked, you can perform operation from a
smartphone. (when connected to Wi-Fi)
Press and hold the
button for approx.
2 seconds.
To release the Hold function:
Press and hold the button for approx.
2 seconds when the Hold function is
activated.
≥ Even when the operation buttons are
locked, you can perform operation by
pressing any of them while pressing and
holding the hold button [
].
