NXC-REL10 Relay Control Card
27 NetLinx Cardframe, Control Cards, and NetModules
NXC-REL10 Relay Control Card
The NXC-REL10 Relay Control Card (FG2020) provides ten relays that support devices that employ simple

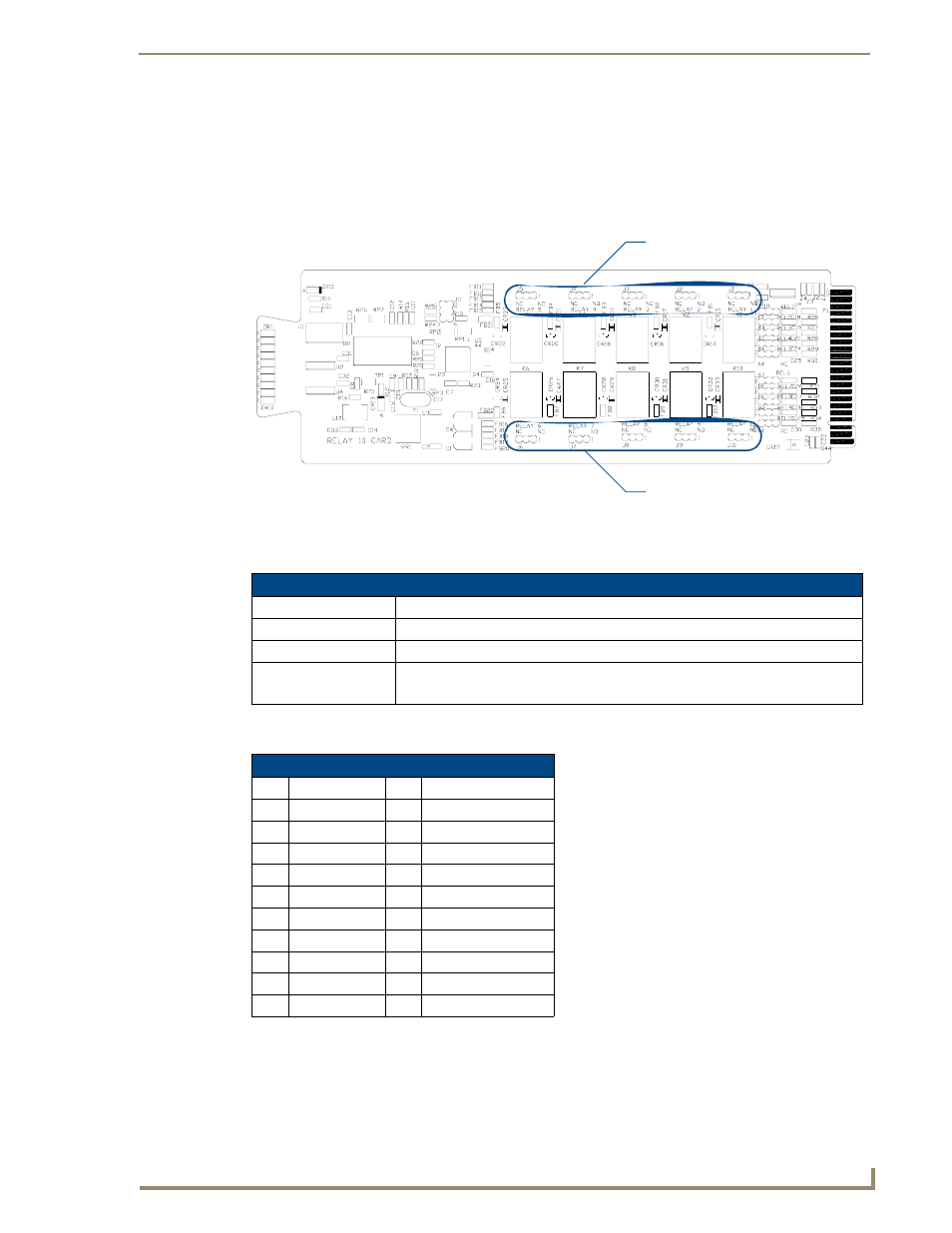

momentary or latching contact-closure control, with LED feedback. FIG. 6 shows the REL-10 card:
Specifications
Pinouts and Functions
NXC-REL10 Channel Assignments
Channels 1-10 represent relays 1-10.
FIG. 6 NXC-REL10 Relay 10 Control card
NXC-REL10 Specifications
Power Requirements 260 mA @ 12 VDC
Operation Relay 1-10: ten relays, 1A @ , 24 VAC / 28 VDC
LEDs Ten red LEDs light to show ON status activity for each relay
Wiring: • Two 10-pin 3.5 mm captive-screw terminals
• Commoning strip (metal)
NXC-REL10 Pinouts and Functions
Pin Function Pin Function
1 Relay 1A 11 Relay 6A
2 Relay 1B 12 Relay 6B
3 Relay 2A 13 Relay 7A
4 Relay 2B 14 Relay 7B
5 Relay 3A 15 Relay 8A
6 Relay 3B 16 Relay 8B
7 Relay 4A 17 Relay 9A
8 Relay 4B 18 Relay 9B
9 Relay 5A 19 Relay 10A
10 Relay 5B 20 Relay 10B
NO and NC 3-pin jumpers J6 - J10
NO and NC 3-pin jumpers J1 - J5
