NXF CardFrame and NetModules
4
NetLinx Cardframe, Control Cards, and NetModules
NXS-NMS NetModules
The NXS-NMS NetModules (FG2009-10) accommodate one NetLinx Control Card, and connect to the
NetLinx bus via ICSNet connections. The NetModules offer a simple and economical way to integrate
additional functionality to control systems. FIG. 2 shows a NetModule shell and its main components.
NXS-NMS NetModules specifications
The table below lists the NXS-NMS specifications.
Mounting modules into an equipment rack
To install the modules in an equipment rack using the optional AC-RK kit:
1.
Remove the front faceplate from the module to expose the mounting holes.
2.
Mount the module on the AC-RK bracket.
3.
Place the AC-RK bracket (with the module) in the equipment rack and secure the bracket to the rack.
4.
Replace the front faceplate on the module, and attach the translucent plastic cover to the faceplate (if
necessary).

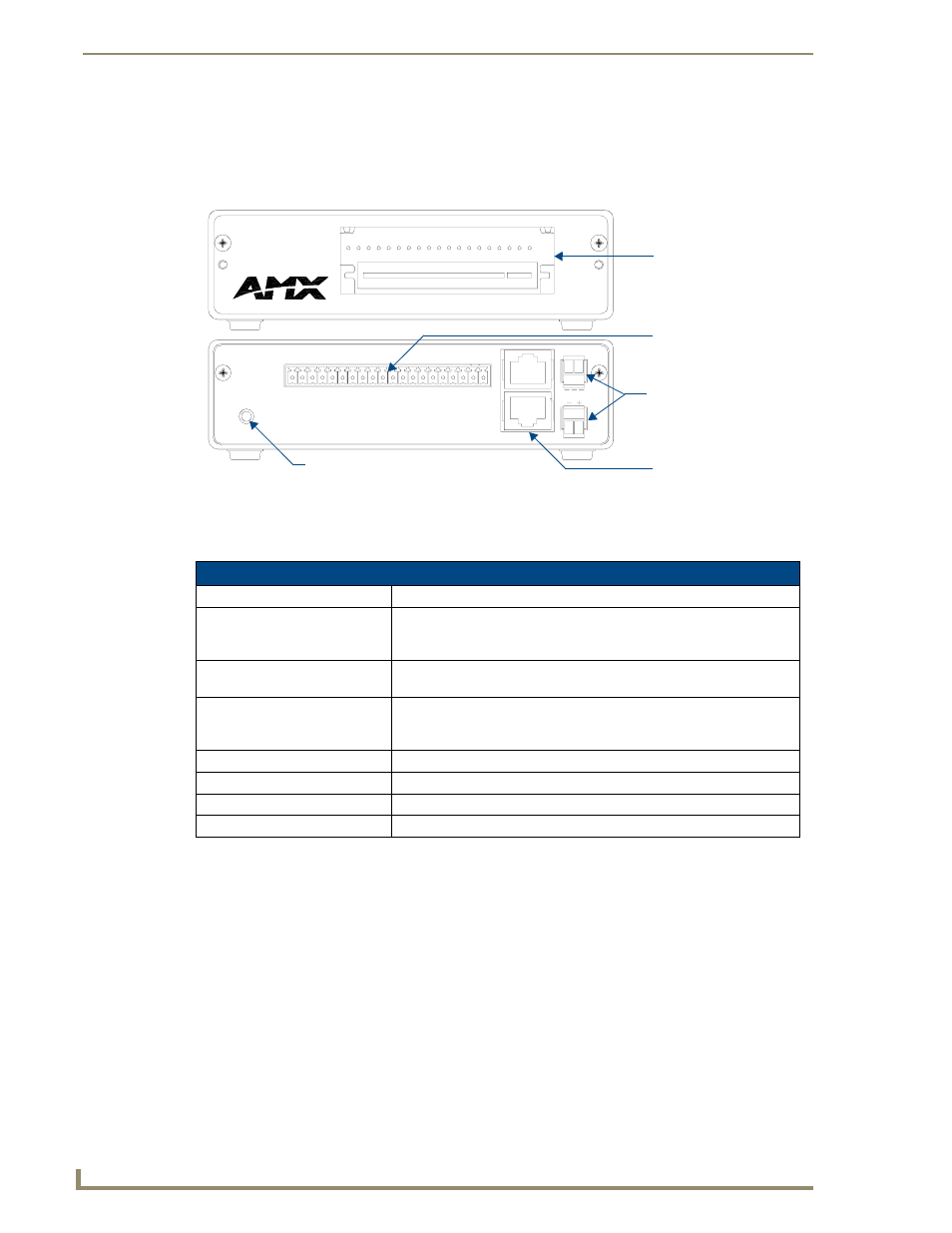

FIG. 2
NXS-NMS NetLinx NetModule shell
NXS-NMS NetModules Specifications
Dimensions (HWD)
1.50" x 5.55" x 9.25" (3.81 cm x 14.10 cm x 23.50 cm)
ID button
Generates an event from the NetModule to allow you to assign new
Device and System numbers, using ID mode in the NetLinx Studio soft-
ware program (seeUsing the ID button section on page 5 for details).
Control connector
20-pin black (male) connector that connects the NetModule to external
devices. These connectors are keyed to insure proper installation.
ICSNet RJ-45 connectors
Receives power and data from a NetLinx Master/Hub ICSNet Port. An
ICSNet port on a NetLinx Master or Hub supplies up to 500 mA at 12 V
for module power.
12 VDC power supply connectors Two parallel male 2-pin (green) parallel connectors for 12 VDC power.
Enclosure
Metal with black matte finish
Included Accessories
NetLinx faceplate
Optional accessories
AC-RK Accessory Rack Kit (holds up to three NetModules)
3
NXM-NMS
17
20
18
19
15
16
13
14
10
12 11
8
9
6
7
4
5
ID
NetModule
1
2
ICSNet
PWR
12VDC
NetModule
ID Button
Parallel 12 VDC
2-pin power
supply connectors
Control Card slot
Control Card connector
ICSNet RJ-45 connectors
(20-pin)
front
rear
