Installation/Operation Supplement
F232145 (EN) 34
Instructions for A Series
Microcomputer
NOTE: Opening the coin box while in Run Mode
and before a cycle has started will put control into
Audit Mode. Display will show “Audt”. To revert
back to Run Mode, close coin box and press START
keypad.

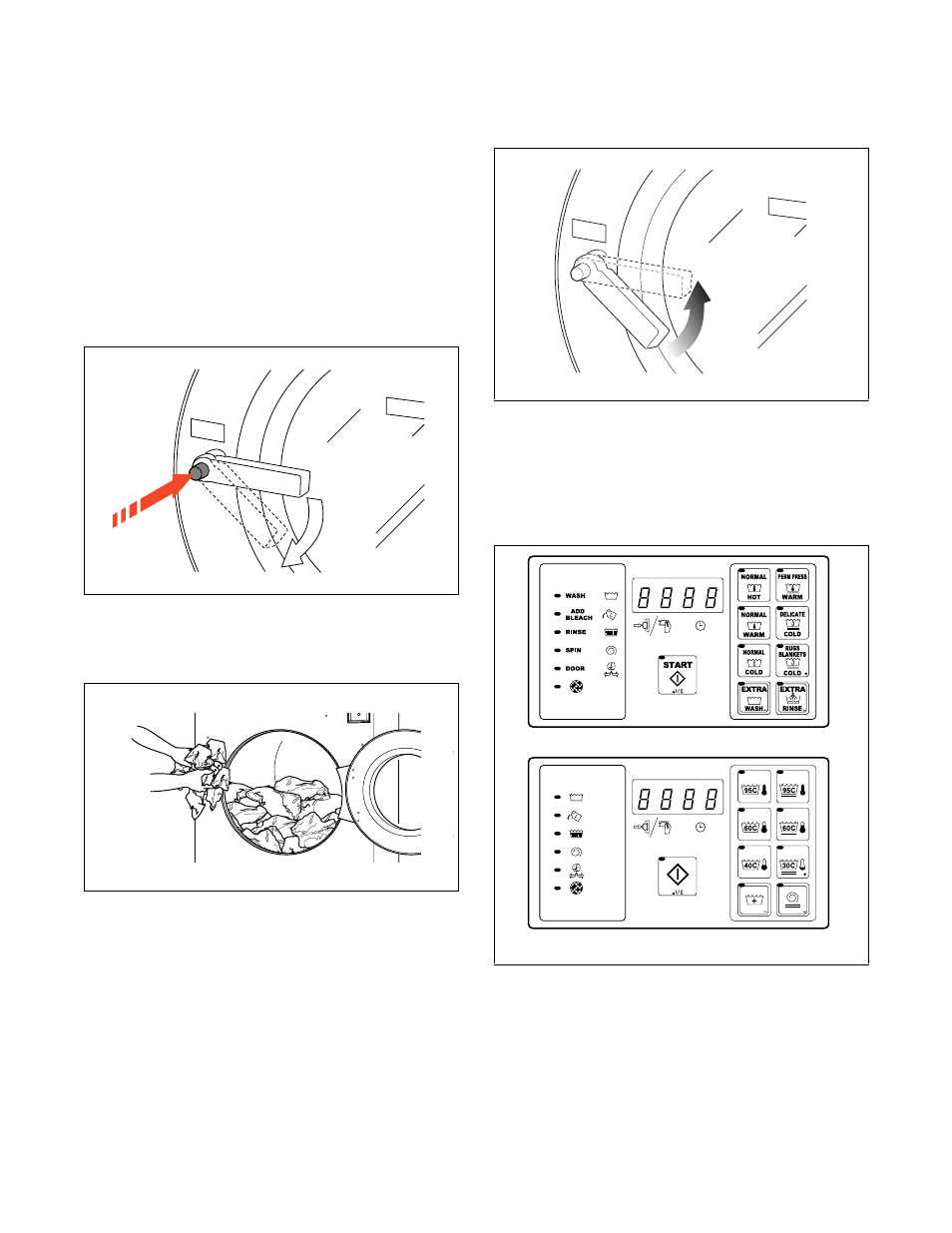

1. Turn on main power source (circuit breaker).
2. Push button and turn handle clockwise to open.
Refer to Figure 36.
Figure 36
3. Load to capacity whenever possible. DO NOT
OVERLOAD. Refer to Figure 37.
Figure 37
4. Close door and turn handle counterclockwise
until button pops out. Refer to Figure 38.
Figure 38
5. The default wash cycle will display. Refer to
Figure 39.
NOTE: The default cycle is Perm Press 60°C for
coin models if no cycle is selected.
U001I
U003I
U001I
U005I
CHM1759C
Figure 39
