Instructions for EDC Control
1. Turn on the main power source (circuit breaker).
2. Push button and turn handle clockwise to open.

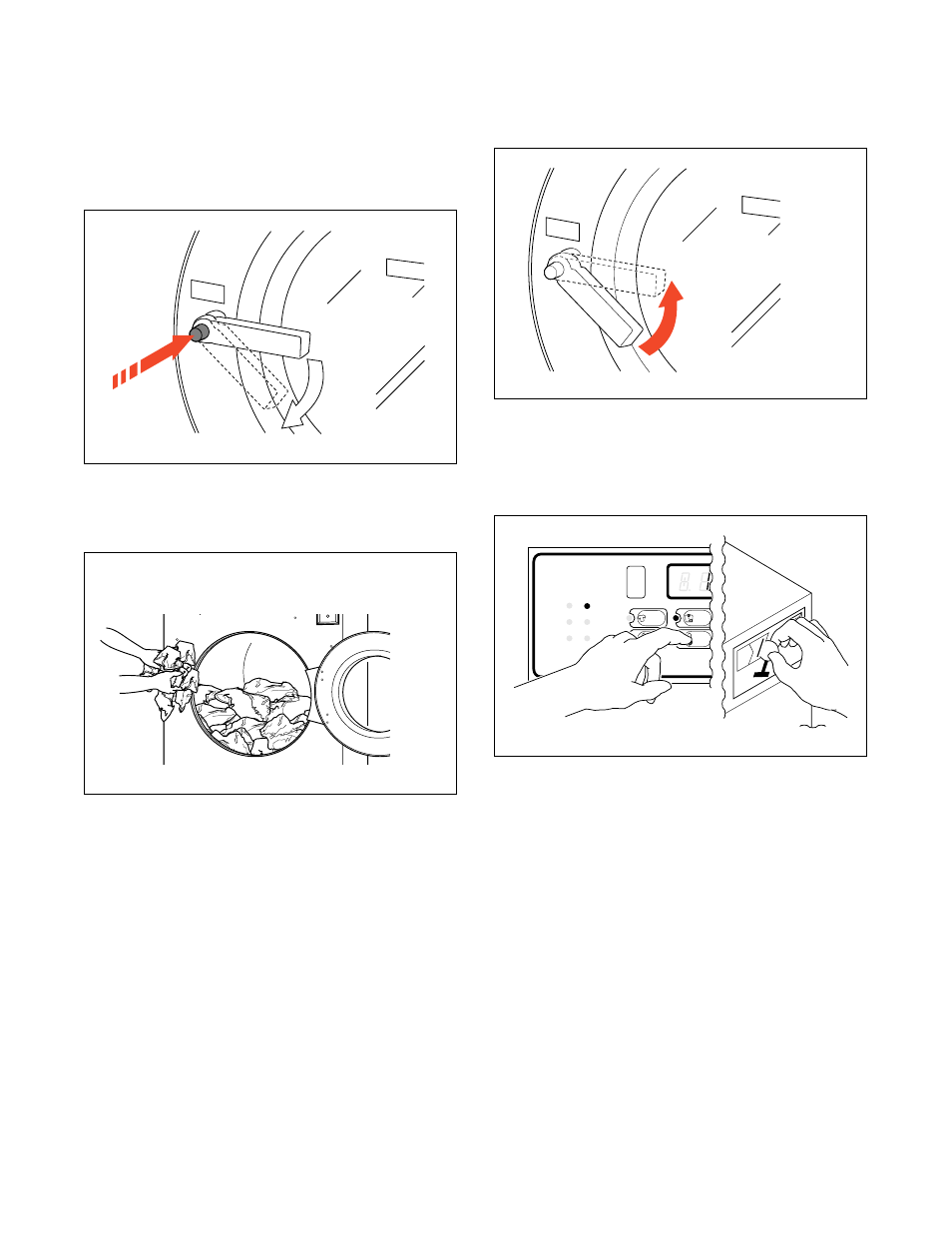

Refer to Figure 9.
Figure 9
3. Load to capacity whenever possible. DO NOT
OVERLOAD. Refer to Figure 10.
Figure 10
4. Close door and turn handle counterclockwise
until button pops out. Refer to Figure 11.
Figure 11
5. Select cycle and temperature. Refer to Figure 12.
6. For machines equipped with a coin meter: Insert
coins. Refer to Figure 12.
Figure 12
U001IE1B
U003IE1A
U001IE1B
U005IE1B
B148R
U005IE1B
HOT
WARM
PERM
PRESS
NORMAL
INSERT
COIN/CARD
CLOSE
DOOR
ADD
BLEACH
WASH
RINSE
SPIN
SPECIAL
WASH
DELICATE
COLD
