Installation/Operation Supplement
F232145 (EN) 18
125 Model
B023I
1 Dry Chemical Dispenser (Optional) 5 Liquid Chemical Inlet
2 Cold Water Inlet 6 Steam Inlet (Optional)
3 Extra Water Inlet (Optional) 7 Drain Outlet
4 Hot Water Inlet

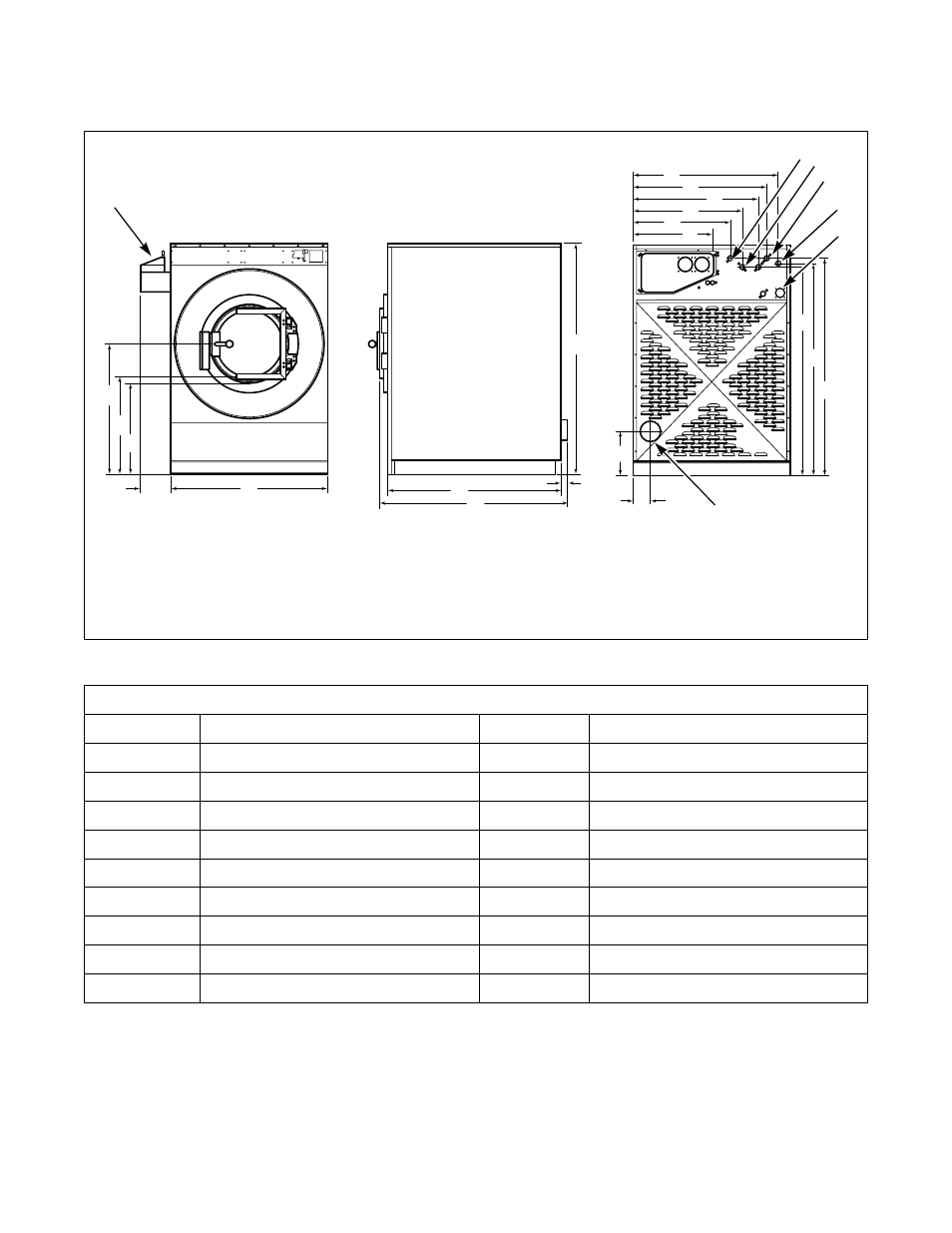

Figure 8
I
B023I
H
P
5
7
3
1
2
6
J
A
B
C
D E F
G Q
4
R
S
T
K
L
N
O
M
Machine Capacity Dimensions
A 1016 mm (40 in.) K 1041 mm (41 in.)
B 768 mm (30.12 in.) L 978 mm (38.5 in.)
C 737 mm (29 in.) M 851 mm (33.5 in.)
D 203 mm (8 in.) N 756 mm (29.75 in.)
E 1219 mm (48 in.) O 610 mm (24 in.)
F 1283 mm (50.5 in.) P 330 mm (13 in.)
G 1422 mm (56.75 in.) Q 124 mm (4.88 in.)
H 25 mm (1 in.) R 1622 mm (63.88 in.)
I 1791 mm (70.5 in.) S 1648 mm (64.88 in.)
J 1130 mm (44.5 in.) T 1692 mm (66.63 in.)
Table 6
