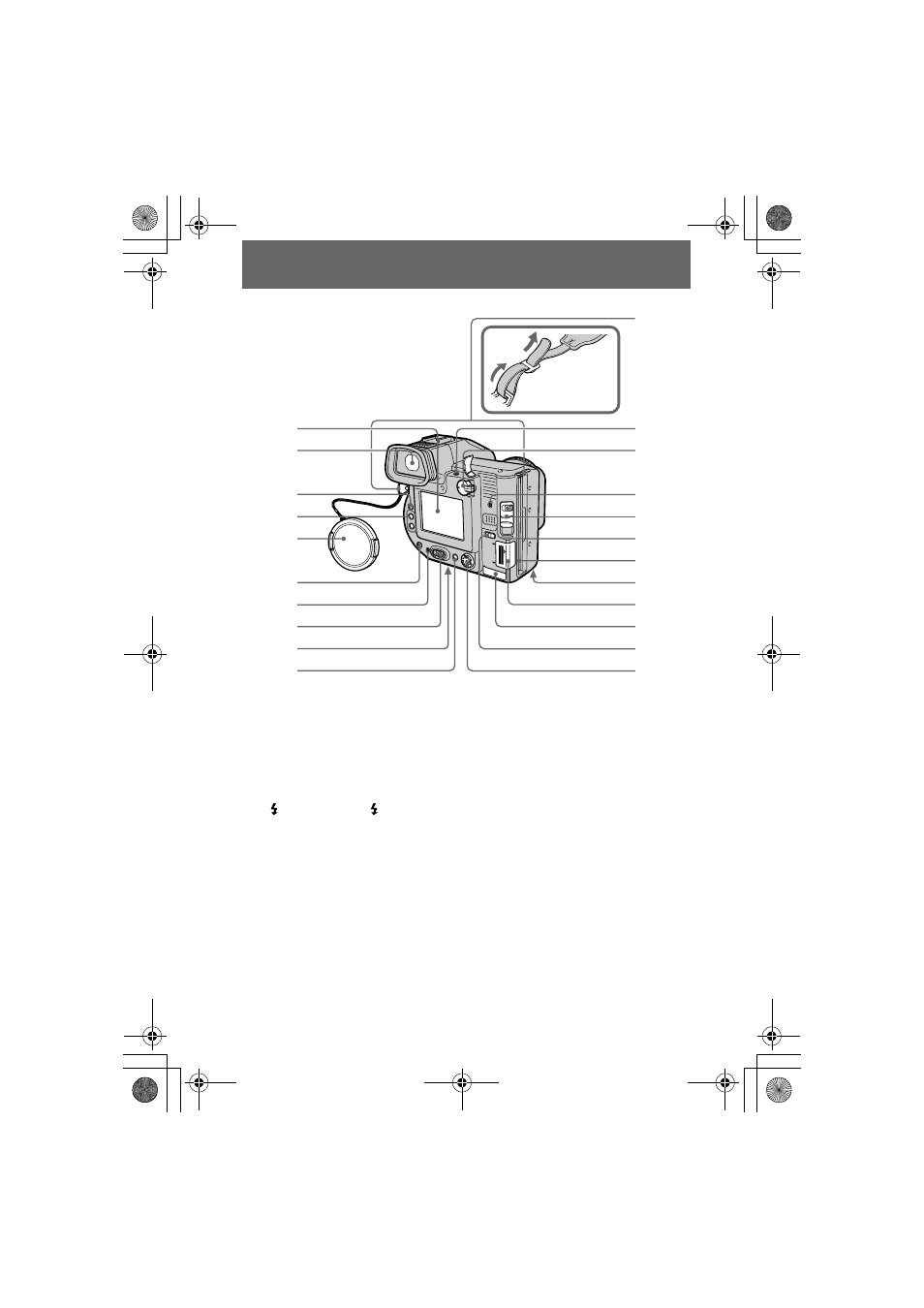

A LCD screen
B Finder (19)
C LCD ON/OFF switch (20)
D VOL +/– buttons (28)
E Lens cap (supplied)
F (Flash) button/ (Flash)
lamp (23)
G POWER ON/OFF (CHG)
(Charge) lamp (11, 14)
H POWER switch (14)
I Tripod receptacle (bottom surface)
Use a tripod with a screw length of
less than 6.5 mm (7/32 inch). You
cannot firmly secure the camera to
tripods having longer screws, and
may damage the camera.
J DISPLAY button (22)
K Hooks for strap
L ACC (Accessory) jack
M PLAY/STILL/MOVIE selector (40)
N Access lamp (18, 19)
O DISK EJECT lever (16)
P Speaker
Q Floppy disk slot (16)
R Battery cover/PUSH button
(bottom surface) (9)
S “Memory Stick” cover/
“Memory Stick” slot (17)
T USB cover/USB jack (31)
U MS /FD (“Memory Stick”/floppy
disk) selector
V Control button (40)
