Viewing an image on a High
Definition (HD) TV
You can view images recorded on the camera in high picture quality by connecting the camera to
a High Definition (HD) TV using the HD Output Adaptor Cable (sold separately). Use a Type3-
compliant HD Output Adaptor Cable. Refer also to the operating instructions supplied with the
TV.
1 Turn off both the camera and the HD TV.
2 First, open the battery/memory card cover, then open the multi-connector
cover.
3 Attach a conversion adaptor to an HD Output Adaptor Cable (sold
separately) and connect the camera to a High Definition (HD) TV with the
appropriate cable.
* The conversion adaptor is supplied with a Type3-compliant HD Output Adaptor Cable (sold separately).
4 Turn on the TV and set the input.
5 Press
(Playback) button to turn on the camera.
Images shot with the camera appear on the TV. Select the desired image by touching /
on
the LCD screen.
• Set [COMPONENT] to [HD(1080i)] (page 100).
• Images shot in [VGA] image size cannot be played back in the HD format.
• When shooting movies in the condition with the camera and a TV connected using an HD Output
Adaptor Cable (sold separately), the image being shot is not displayed in the TV side.
• When using the camera abroad, it may be necessary to switch the video signal output to match that of
your TV system (page 101).
• When output to TV, Easy Viewing mode is invalid.
• When you disconnect the HD Output Adaptor Cable and close the cover of the camera, first close the
multi-connector cover, then close the battery/memory card cover.
Notes

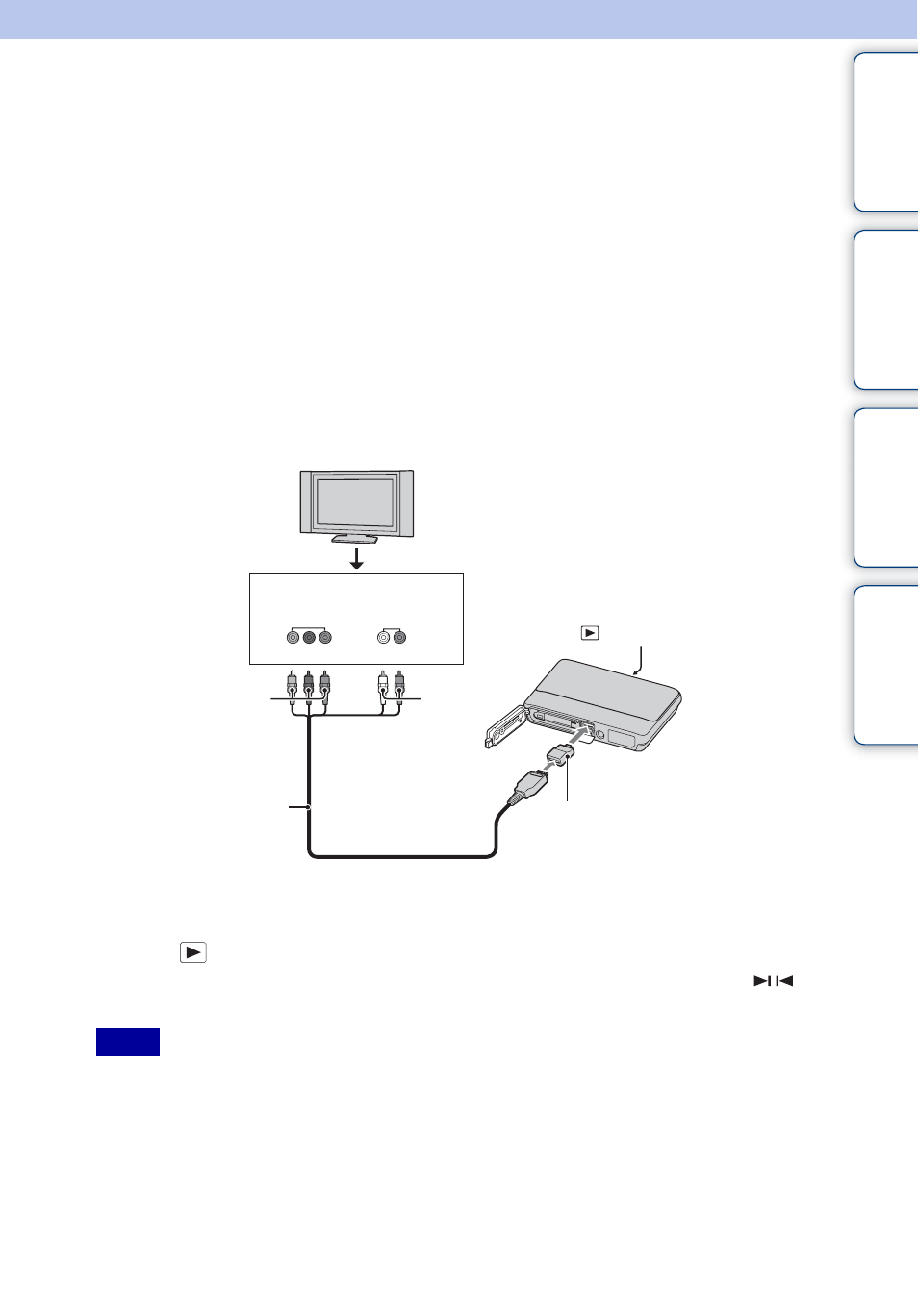

HD Output Adaptor Cable
(sold separately)
2
To the multi-connector
AUDIO
COMPONENT
VIDEO IN
White/
Red
Green/Blue/Red
1
To audio/video
input jacks
(Playback) button
Conversion adaptor*
