37
US
Getting
Star
ted

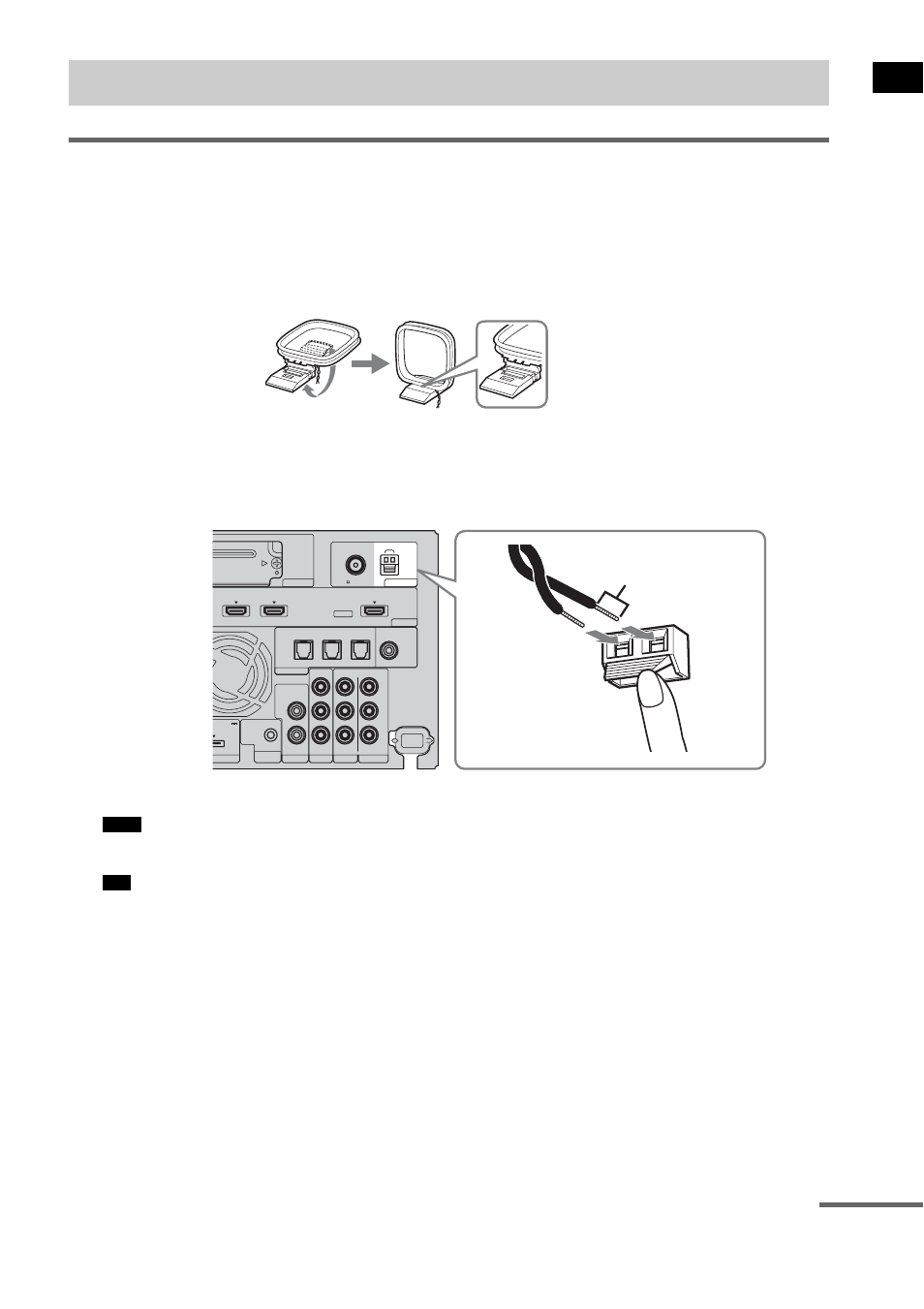

Connecting the AM loop antenna (aerial)
The shape and the length of the antenna (aerial) is designed to receive AM signals. Do not dismantle
or roll up the antenna (aerial).
1
Remove only the loop part from the plastic stand.
2
Set up the AM loop antenna (aerial).
3
Connect the cords to the AM antenna (aerial) terminals.
While pushing down the terminal clamp, insert the (*) part of the cords.
The cords can be connected to either terminal.
• Do not place the AM loop antenna (aerial) near the system or other AV component, as noise may result.
• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.
4
Make sure the AM loop antenna (aerial) is connected firmly by pulling softly on the cord.
Step 4: Connecting the antenna (aerial)
Note
Tip
EZW-T100
HDMI
TV OUT
SAT/CATV IN
DVD IN
ASSIGNABLE
AUDIO IN
L
R
AUDIO IN
VIDEO IN
COMPONENT VIDEO IN
R
L
Y
PORT
TV
REMOTE
CTRL
VIDEO 1
DC 5V
0.7A MAX
ONLY FOR
SS-CT500
VIDEO 2
VIDEO 3
P
B
/
C
B
P
R
/
C
R
OPTICAL
TV IN
COAXIAL
VIDEO 2 IN
VIDEO 3 IN
VIDEO 3 IN
DIGITAL
ANTENNA
AM
FM
75 COAXIAL
Rear of the
subwoofer
*
continued
