DAS-SIRIUS Tuner Module
5 DAS-SIRIUS Sirius Satellite Radio Tuner Module
Tuner 1 Jumper Settings
The DAS-SIRIUS Tuner Module defined as Tuner 1 must be set to Tuner 1 via jumpers on the Tuner, as shown
in FIG. 7:
Tuner 2 Jumper Settings
The DAS-SIRIUS Tuner Module defined as Tuner 2 must be set to Tuner 2 via jumpers on the Tuner, as shown
in FIG. 8:
Changing the Jumper Settings on the DAS-AMFM Tuner Module
By default, a DAS-AMFM Tuner Module is installed in Slot 2. There are jumpers on the DAS-AMFM Tuner
Module that differentiate Tuner 1 from Tuner 2 in the Controller. By default, DAS-AMFM Tuner Modules are
set to the single tuner configuration.
When adding the DAS-SIRIUS Tuner Module to the Controller, it is necessary to change the jumper
settings on the pre-installed DAS-AMFM Tuner Module, to allow a second Tuner.
The jumpers on the DAS-AMFM Tuner Module (FIG. 9) must be set to differentiate Tuner 1from Tuner 2 in
the Controller.
Examine the configuration of the jumpers located on the Tuner Modules, to the right of the 20-pin ribbon cable
connector (as seen when viewing the installed modules from the front of the controller).
Note that there are two rows of 5 pins as shown in FIG. 9.
With only a single tuner, all pins are jumpered.

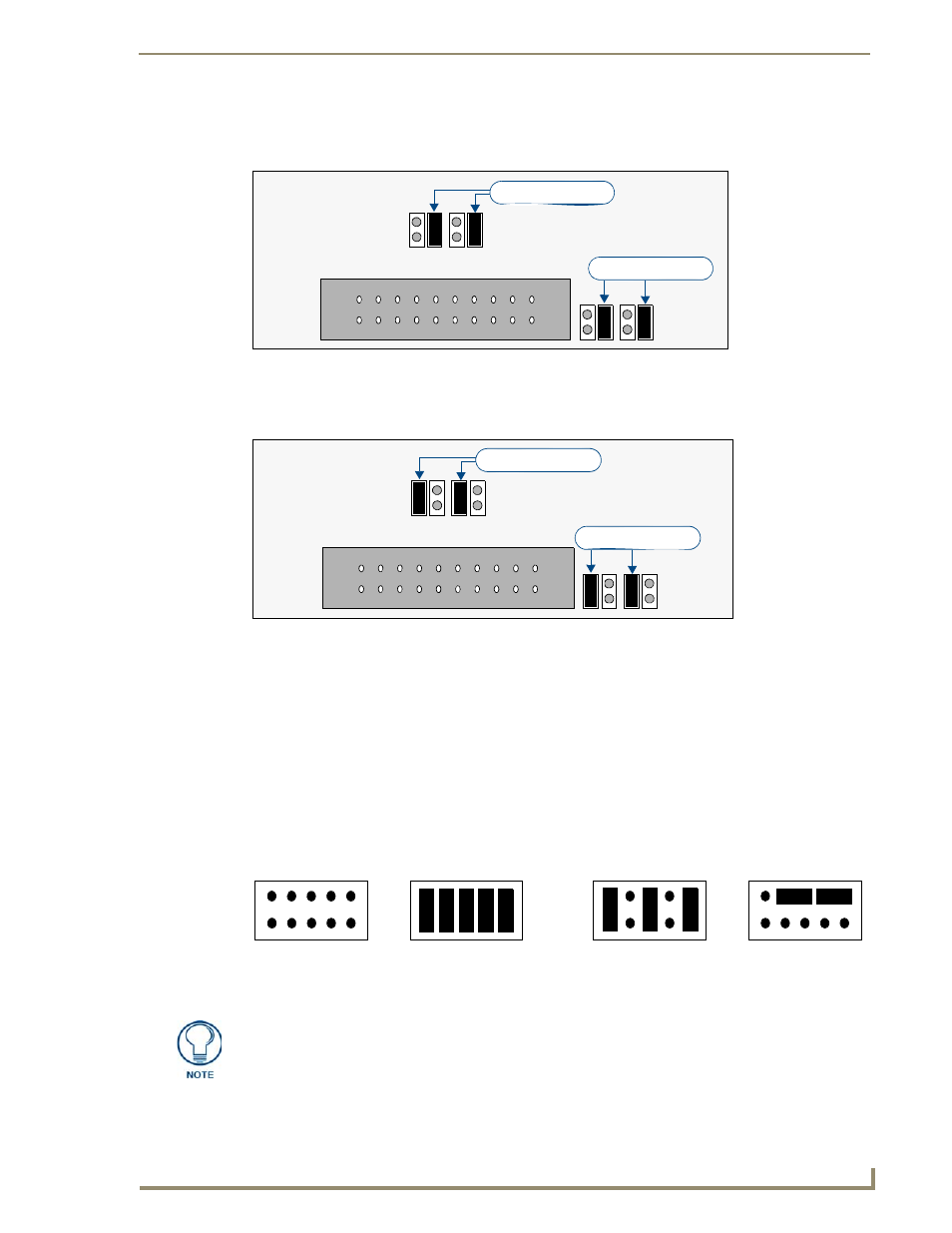

FIG. 7 Tuner Module - Tuner 1 Jumper Configuration
FIG. 8 Tuner Module - Tuner 2 Jumper Configuration
FIG. 9 Tuner Module Jumper Configuration
TUNER 1 Jumpers
TUNER 1 Jumpers
TUNER 2 Jumpers
TUNER 2 Jumpers
empty pins
(no jumpers)
Single Tuner
(all pins jumpered)
Dual Tuners:
TUNER 1
Dual Tuners:
TUNER 2
All DAS-AMFM AM/FM Tuner Modules are shipped in the single tuner configuration.
