DAS-SIRIUS Tuner Module
3 DAS-SIRIUS Sirius Satellite Radio Tuner Module
Audio Controller Jumpers - Location
Examine the configuration of the jumpers on the left-side Rear-Board Pin Bus, as seen when viewing the rear
board from the front of the Controller (FIG. 3).
Audio Controller Jumpers - ON/OFF Settings
ON position = pins 3 and 2 jumpered (with pin 1 exposed).
OFF position = pins 2 and 1 jumpered (with pin 3 exposed).

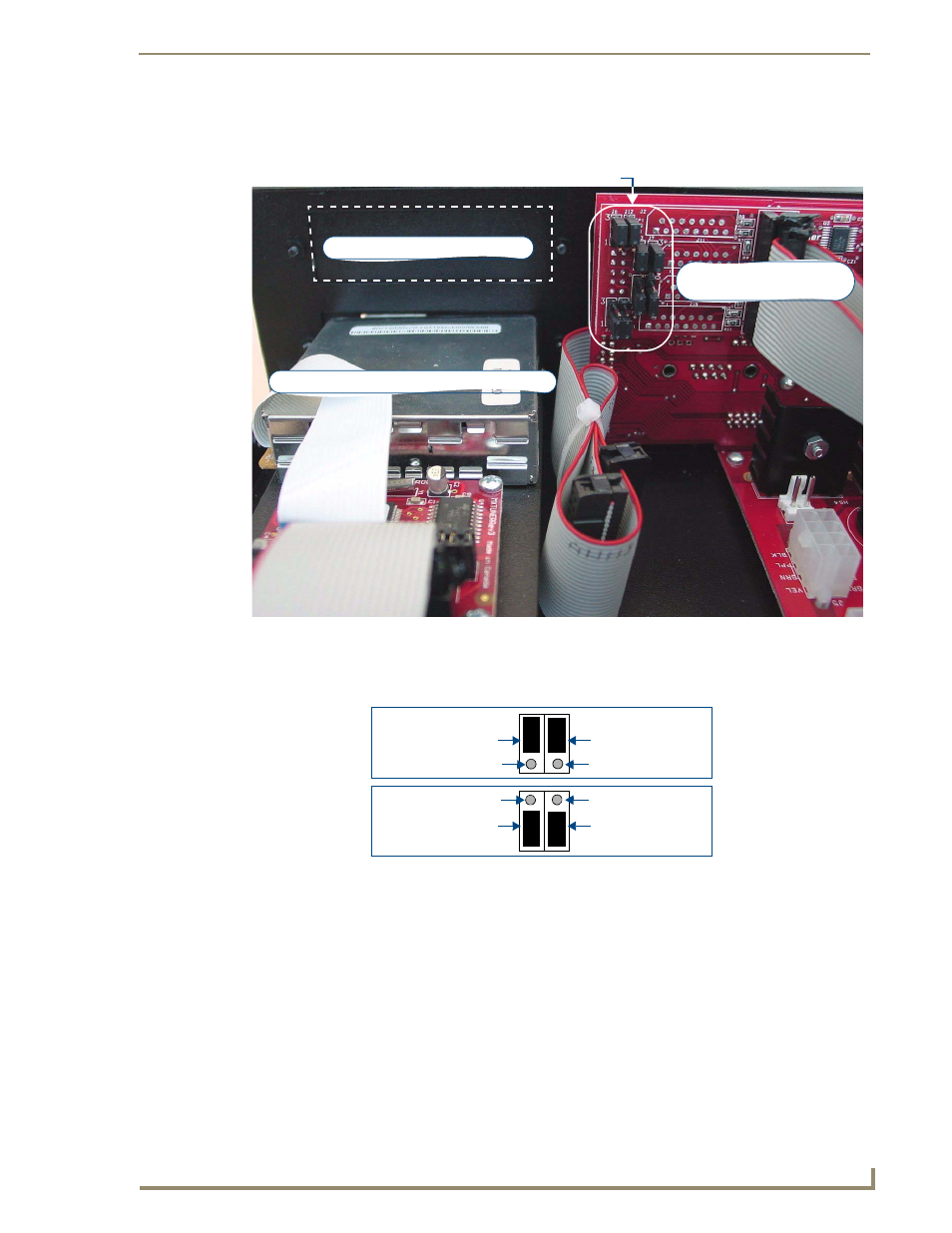

FIG. 3 Audio Controller - Rear-Board Pin Bus / Jumpers
FIG. 4 Controller Jumper Settings
Audio Controller Jumpers rear panel
Rear-Board Pin Bus -
Slot 1 (with faceplate installed)
Slot 2 (with AM/FM Tuner module installed)
(see Fig 4 & 5)
3
1
3
1
Jumper (pins 3-2)
exposed pin (1)
Jumper (pins 3-2)
Jumper (pins 2-1)
exposed pin (3)
Jumper (pins 2-1)
ON position
(Jumper pin 1 & 2)
OFF position
(Jumper pins 2 & 1)
exposed pin (1)
exposed pin (3)
