Specifications for the Raven X EV-DO
Physical Characteristics:
•
Weight: 0.7 lbs
•
Size: height 1.4" (36mm), length 2.5" (65mm) x width 4.6" (117mm)
width with mounting tabs 5.75” (146mm)
Data Services & RF Features
•
Full duplex transceiver
•
Dual-band Usupport for both 800 MHz cellular and 1.9 GHz PCS bands
•
Dual band Receive Diversity
•
EV-DO Rev A
•
1x fall back: Adheres to CDMA authentication as specified in CDMA2000 1X
•
EVDO Rev A - Data rates up to 3.1 Mbps downlink (450-850 typical) , 1.8 Mbps uplink 300-
400 Kbps typical)
•
EVDO Rev 0 - Data rates up to 2.4 Mbps downlink (300-500 Kbps typical),
153.6 Kbps uplink
(60-90 Kbps typical)
•
CDMA/1x - Data rates up to 153.6 Kbps downlink (60-90 Kbps typical), 153.6 Kbps uplink (60-90 Kbps
typical)
1
2
3
4
5

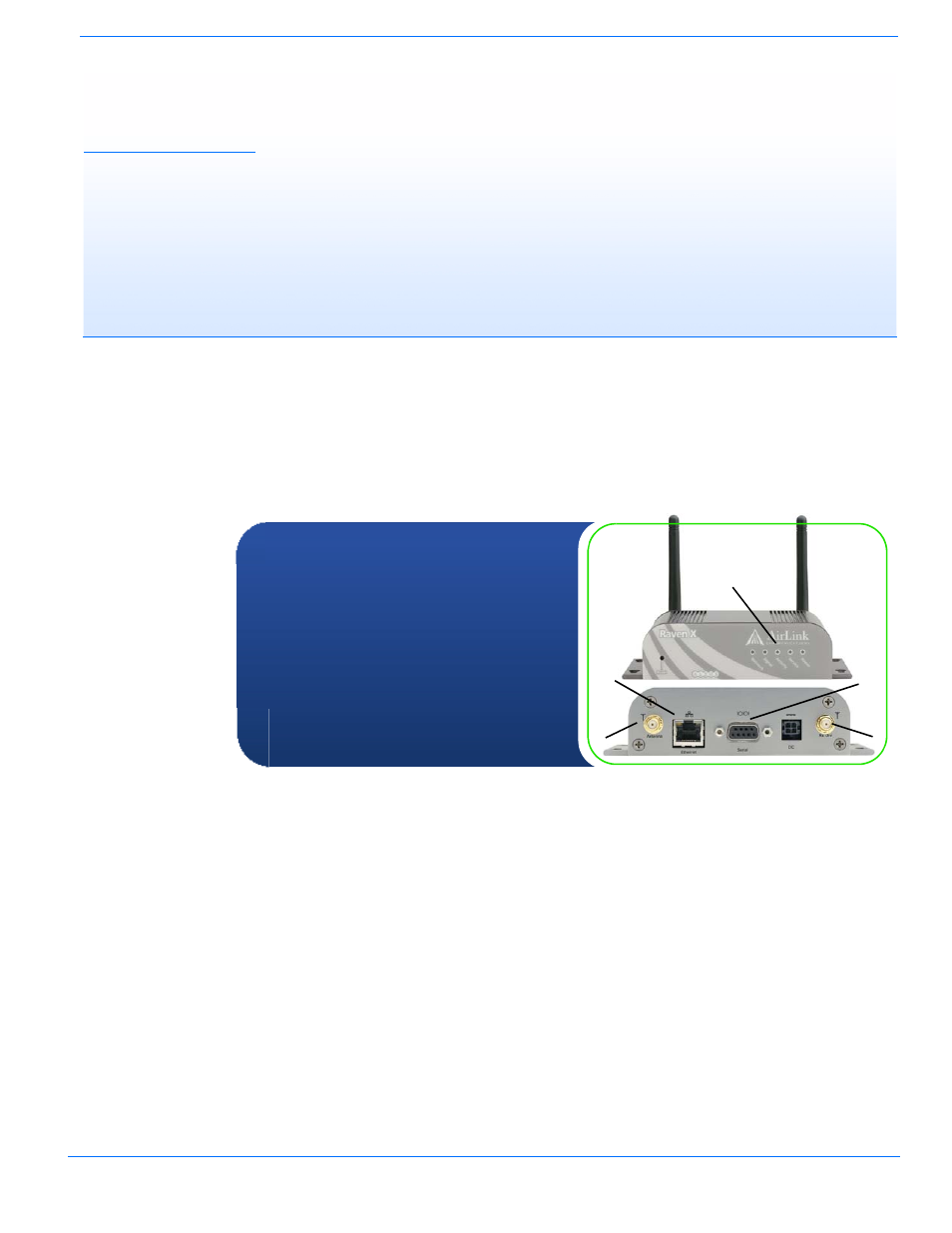

1. Primary Antenna - 50 Ohm TNC
2. Receive Diversity Antenna - 50 Ohm
SMA
3. Ethernet: 10/100 Mbps RJ-45
4. Serial: RS-232 DB9-Female DCE (300-
230400 baud)
5. Status LEDs: Power, Network, Signal,
Activity, Service
