Raven X EV-DO for Verizon - User Guide, version 2.34 32
Modbus/BSAP Configuration

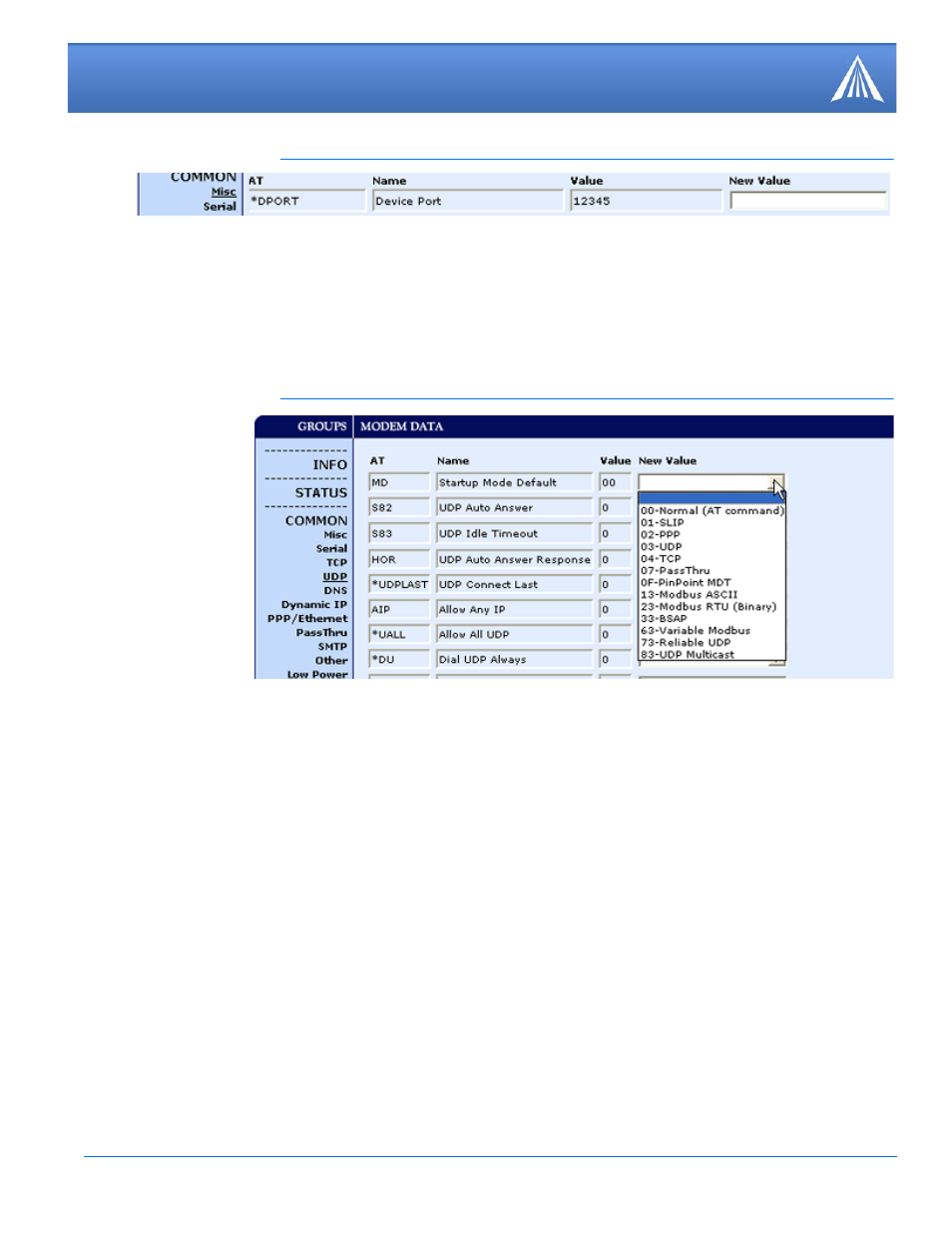

FIGURE 3. Wireless Ace: Device Port
The default start-up mode will need to be set. In Wireless Ace, select UDP in the side menu. Select
the appropriate MD mode from the drop down menu.
FIGURE 4. Wireless Ace: MD Configuration
• MD13: Modbus ASCII
• MD23: Modbus RTU (Binary)
• MD33: BSAP
• MD63: Variable Modbus (individual parameters are set up manually)
The last step of configuring the modem at the host is setting the IDs to their specific IPs. In Wire-
less Ace, select the menu option Addr List.
2. Configure the default mode for start-up.
3. Configure IP addresses for the Modbus IDs.
