You can listen to the sound from the
component connected through the DIGITAL
MEDIA PORT adapter to the DMPORT jack
on the receiver.
You can also view the images on the TV
screen by connecting the video output of the
DIGITAL MEDIA PORT adapter to the
receiver.
To view the images, proceed to “Watching a
connected component through DMPORT
connection” on page 82.
To detach the DIGITAL MEDIA
PORT adapter from DMPORT
jack
Press and hold both sides of the connector and
then pull out the connector.
Notes
• When connecting the DIGITAL MEDIA PORT
adapter, be sure the connector is inserted with the
arrow mark facing towards the arrow mark on the
DMPORT jack.
• Be sure to make DMPORT connections firmly,
insert the connector straight in.
• As the connector of the DIGITAL MEDIA PORT
adapter is fragile, be sure to handle with care when
placing or moving the receiver.

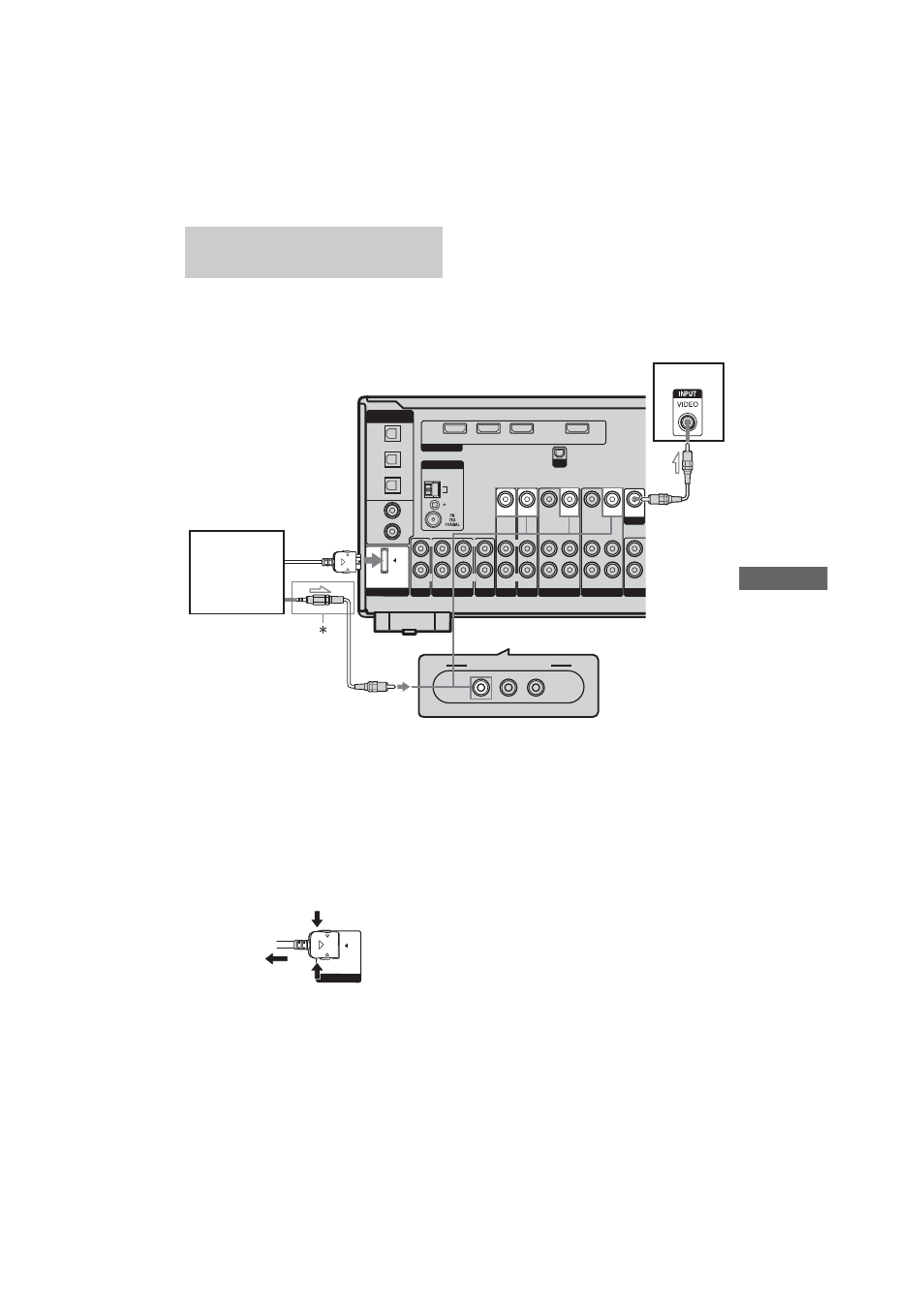

Connecting the DIGITAL MEDIA
PORT adapter
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
SA-CD/
CD/CD-R
IN
COAXIAL
DVD IN SAT IN VIDEO 2/BD IN OUT
AM
L
R
OUT IN IN
VIDEO IN VIDEO IN VIDEO IN VIDEO OUT
AUDIO OUT AUDIO IN AUDIO IN AUDIO IN
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
VIDEO 1
IN
TV
IN
AUX
HDMI
MONITOR
DVD VIDEO 2/BD
L
R
VIDEO IN VIDEO OUT
AUDIO OUT AUDIO IN
VIDEO 1
AUDIO
SUB WO SAT
XM
L
R
L
R
VIDEO OUT VIDEO IN VIDEO IN VIDEO IN VIDEO IN
VIDEO L AUDIO R
VIDEO 3 IN/PORTABLE AV IN
L
R
SA–CD/CD/CD–R
A
A
TV
DIGITAL MEDIA
PORT adapter
To one of the
VIDEO IN jacks
Front panel
* The type of connector varies depending on the DIGITAL MEDIA PORT adapter.
For details, see the operating instructions supplied with the DIGITAL MEDIA PORT adapter.
A Video cord (not supplied)
DMPORT
