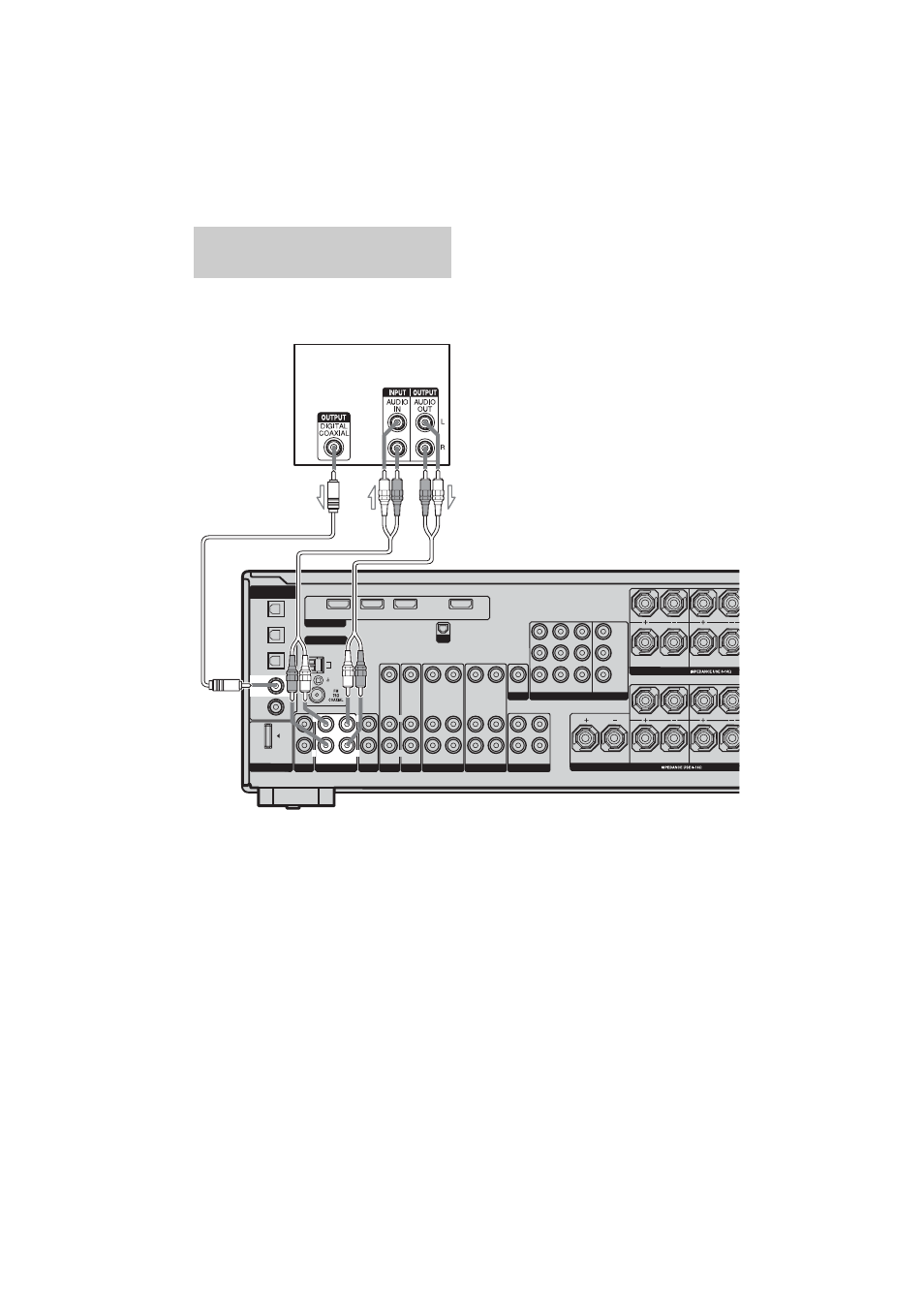

The following illustration shows how to
connect a Super Audio CD player, CD player
or CD recorder.
Notes
• When you play back a Super Audio CD disc on a
Super Audio CD player, the sound is output only if
you make the connection to SA-CD/CD/CD-R IN
jacks (analog input jack) on the receiver. Refer to
the operating instructions supplied with the Super
Audio CD player.
• You can only make analog recording on this
receiver.
Tip
All the digital audio jacks are compatible with 32
kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting components with
digital audio output jack
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
SAT IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT
IN
IN
VIDEO IN
VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO OUT AUDIO IN
AUDIO IN
AUDIO IN
SURROUND
SURROUND BACK
CENTER
R
R
L
L
SAT IN
DVD IN
VIDEO 1 IN MONITOR OUT
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
SPEAKERS
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
VIDEO 1
IN
SA–CD/CD/CD–R
TV
IN
AUX
HDMI
MONITOR
DVD
VIDEO 2/BD
L
R
VIDEO IN
VIDEO OUT
AUDIO OUT AUDIO IN
VIDEO 1
AUDIO OUT
SUB WOOFER
SAT
XM
Y
R
R
L
R
VIDEO OUT
FRONT B
FRONT A
R
R
L
L
SPEAKERS
L
L
SA-CD/
CD/CD-R
IN
Super Audio
CD player/
CD player/
CD recorder
A
Coaxial digital cord (not supplied)
B
Audio cord (not supplied)
B
A
