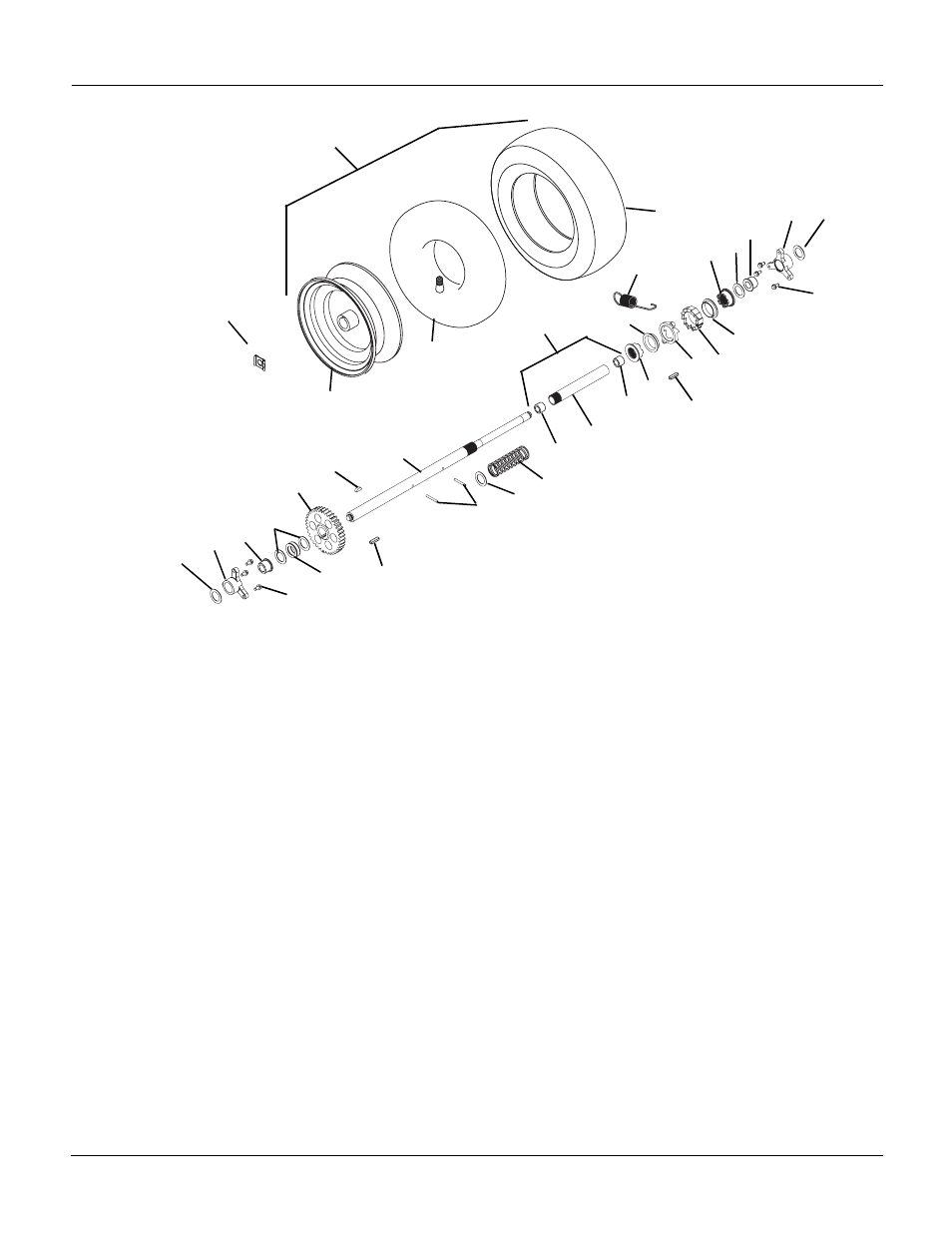

14
W
HEELS AND
A
XLES
Model 926002, 003, 302, 304
tem Part No. Qty. Description
1 07100032 1 Tire/Wheel Assembly RH 15 x 5.00 - 6 (Includes 22-24) (002, 304)
07100033 1 Tire/Wheel Assembly LH 15 x 5.00 - 6 (Includes 22-24) (002, 102, 303, 304)
07100030 1 Tire/Wheel Assembly RH 16 x 6.50 - 8 Differential (Includes 16-18) (003, 302)
07100031 1 Tire/Wheel Assembly LH 16 x 6.50 - 8 Differential (Includes 16-18) (003, 302)
2 05700001 2 Clip, Snap
3 06436300 6 Washer, Flat Steel 1.010 x .505 x .062
4 00275100 2 Bushing, Rake Shaft 1"
5 07412000 6 Screw, Tapping .25-20 x .50
6 00531500 1 Spacer, 1.005 x 1.5075 x .375
7 06601200 1 Woodruff Key .25 x .88 x .38
8 00371000 1 Gear, Spur
9 00376000 1 Axle, Differential-Long
10 00375900 1 Axle, Differential-Short
11 00427700 1 Spring, Compression
12 05803000 2 Pin-Roll .188 x 1.50
13 06600002 2 Key .25 x .188 x 1.00
14 00386900 2 Clutch, Dog Sliding
15 00391100 2 Bushing, Flange
16 00387100 1 Gear, Clutch
17 00387000 1 Gear, Ratchet
18 05500030 2 Bushing, Flange Split Nyliner 1.0" HP
19 08300023 1 Spring, Tension .06 x .62 x 2.94
20 05500023 2 Bushing, Sleeve .706 x .764 x .75
21 52601700 AR Axle, Differential with Bushings (Includes 10 and 20)
22 07100101 2 Hub, Wheel 15 x 5-6 Remote (002, 304)
07100103 2 Hub, Wheel- 16 x 6.5-8 Differential (003, 302)
23 07156400 2 Tube (002, 304)
07108700 2 Tube 16 x 6.50- 8 (003, 302)
24 07100104 2 Tire, x-TRAC 15 x 5-6 (002, 304)
07100108 2 Tire, x-TRAC 16 x 6.5-8 (003, 302)
