LECTRICAL
Model 926002, 003, 014, 015, 300, 301, 302, 304, 306, 307, 308, 500, 501, 502
Model 926002, 003, 014, 015, 300, 301, 302, 304, 306, 307, 308, 500, 501, 502

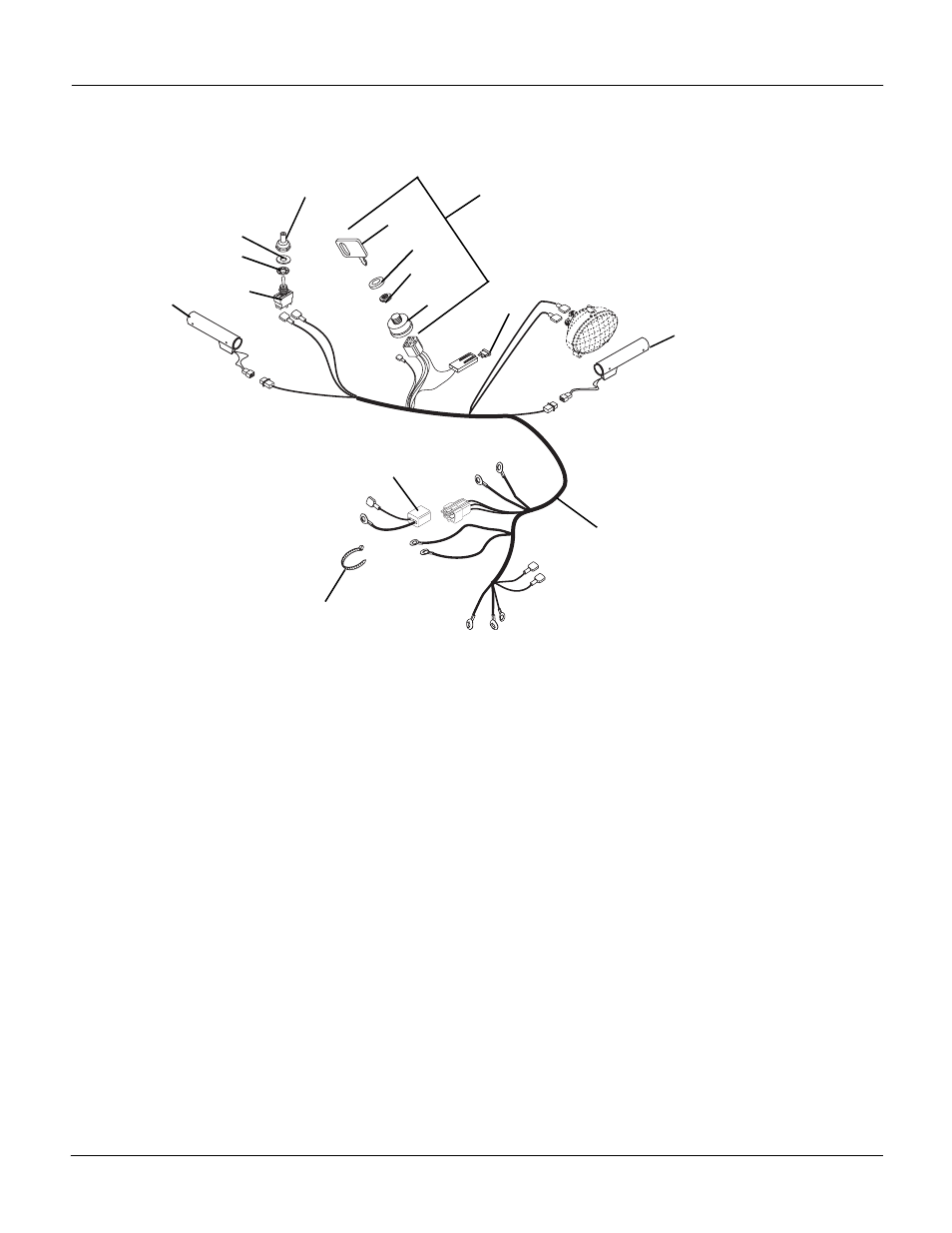

item Part No. Qty. Description
1 07517300 AR Cable Tie
2 02460700 1 Key with Cap (307, 308, 500, 501)
3 07517700 1 Cap, Ignition Switch (307, 308, 500, 501)
4 06517300 1 Nut, Panel .63-32 (307, 308, 500, 501)
5 02739600 1 Ignition Switch Assembly (307, 308, 500, 501)
6 52709300 1 Switch Assembly (Includes Items 2 thru 5) (307, 308, 500, 501)
7 00432300 AR Harness, Wiring-Light and Handwarmer (002, 003, 014, 015, 300, 301, 302, 304, 306, 502)
00432400 AR Harness, Wire-Light and Handwarmer, 12V (307, 308, 500, 501)
8 06403800 1 Washer, Flat Steel .51 x .88 x .024
9 06310900 1 Washer, Locking Internal .56 x .04
10 02485700 1 Switch, On/Off Hand Warmer
11 00524700 1 15 AMP Fuse
12 07532900 2 Hand Warmer with Terminal (Recommend Fast Drying Epoxy for Installation)
13 09207600 AR Boot, Switch (Optional)
14 00599500 1 Harness Adapter (014, 015)
