Ariens Sno-Thro 926300 - 11526DLE - Manual (Page 15)

15

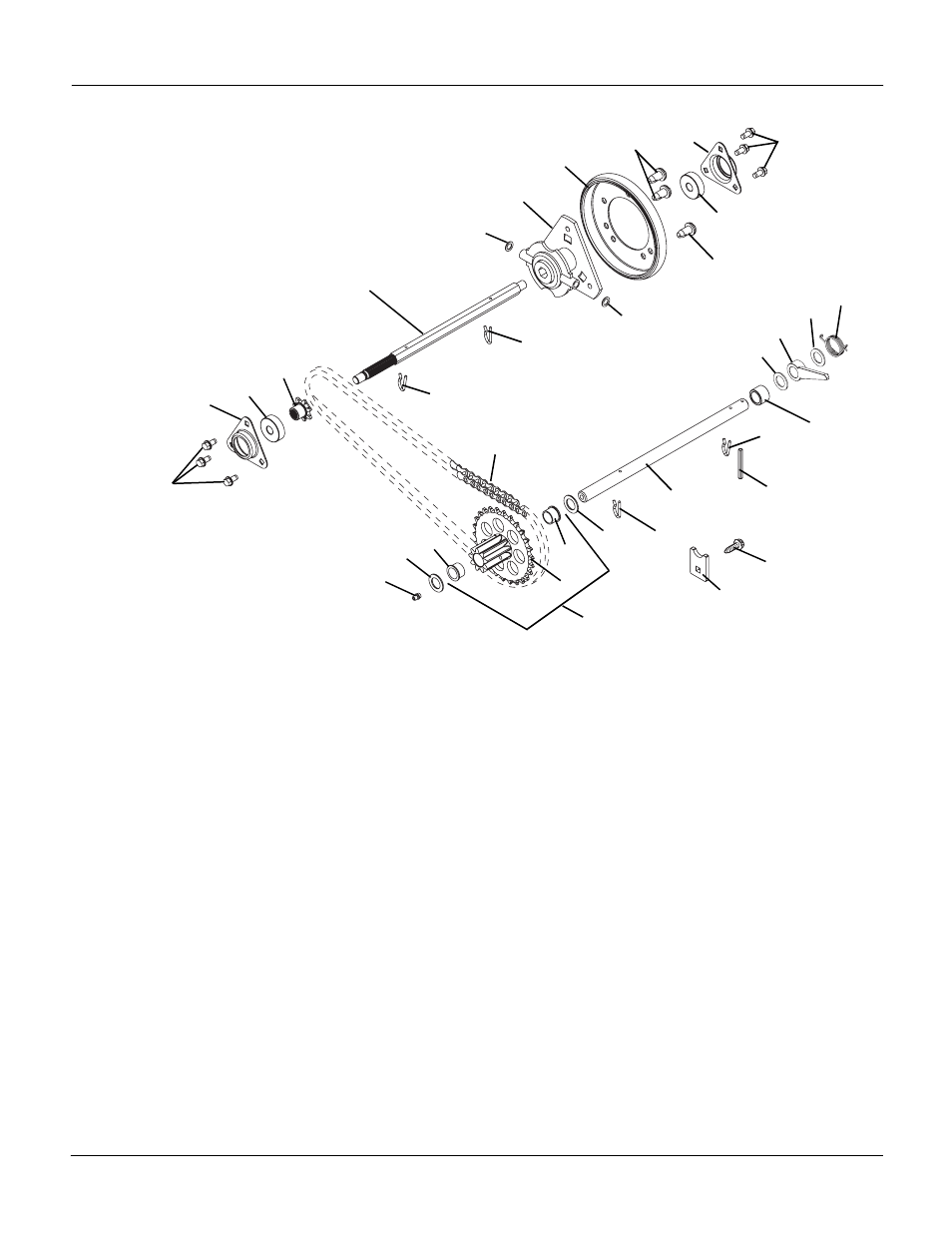

R
EDUCTION
D
RIVE
Model 926001, 002, 003, 013, 014, 015, 300, 301, 302, 304, 305, 306, 307, 308, 500, 501, 502
Item Part No. Qty. Description
1 00382800 1 Shaft, Pinion
2 06436100 2 Washer, Flat Steel .630 x 1.005 x .062 (001, 013, 014, 015, 300, 301, 305, 306, 307, 308, 500,
501, 502)
06436100 4 Washer, Flat Steel .630 x 1.005 x .062 (002, 003, 302, 304)
3 00372900 1 Shaft, Hex with Spline
4 05500029 1 Spacer .635 x .880 x .611 (001, 013, 014, 015, 300, 301, 305, 306, 307, 308, 500, 501, 502)
5 05500111 2 Bushing, Flange .625 x .750 x .500 x .875
6 00190600 1 Pinion and Sprocket
7 06714500 4 Pin, Spring Clip
8 05800900 1 Pin, Roll .125 x 1.00
9 07061300 1 Zerk, Fitting .25 x .125 Drive-In
10 07412000 6 Screw, Tapping Hex Washer Head .25-20 x .50
11 00383000 2 Flange, Bearing
12 05435200 2 Bearing, Ball .437 x 1.375 x .437
13 00385800 1 Sprocket, Pinion 7T with Spline
14 07400009 3 Screw, Tapping SERRDHDTX .31-18 x .50BP
15 00383100 1 Carrier, Drive Disk
16 00170800 1 Friction, Disk
17 02466200 1 Chain, #41, 32 Pitches
18 00391200 1 Lever, Lock Arm (002, 003, 302, 304)
19 00391300 1 Spring, Torsion (002, 003, 302, 304)
20 52601500 1 Pinion and Sprocket with Bushings
21 06439200 2 Washer, Flat-Steel .505 x 1.00 x .062
22 00503559 1 Tab, Anti Rotation
23 07412000 1 Screw, Tapping .25-20 x .50 Hex Washer Head Thread Rolling
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
2
5
7
7
7
10
11
12
PS0464
2
18
19
17
21
21
20
2
22
23
