23

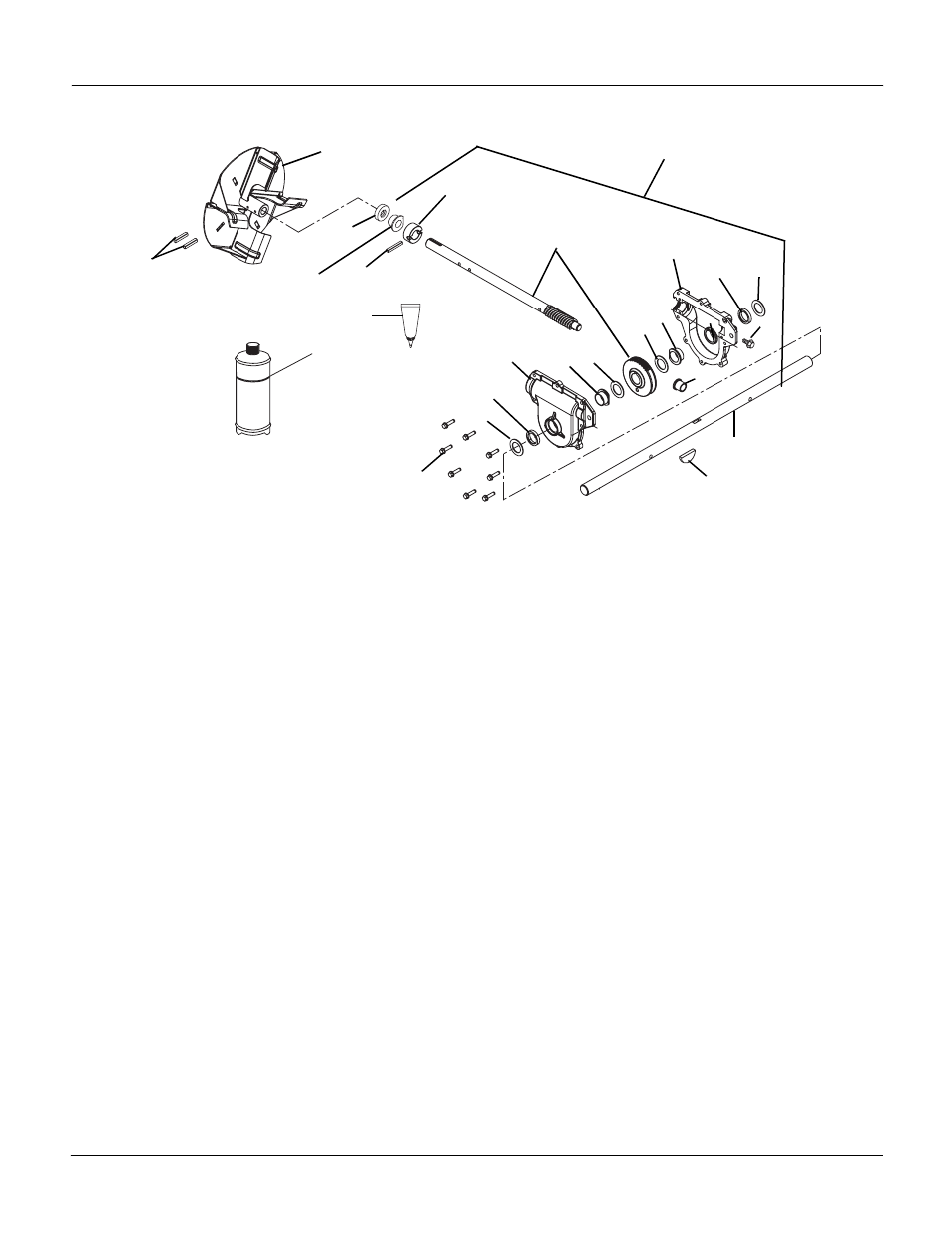

G
EAR
C
ASE
-A
LUMINUM
Model 926001, 002, 003, 013, 302, 304, 305
Item Part No. Qty. Description
1 05803700 2 Pin, Roll .25 x 1.75
2 00258251 1 Impeller 14" O.D.
3 05600001 1 Seal, Oil .875 x 1.375 x .25
4 05500008 1 Bushing, Flange .876 x 1.50 x .75
5 00255100 1 Thrust Collar .875
6 05806800 1 Pin, Groove .25 x 1.50
7 53213600 AR Case, Gear Aluminum 26" (Contains Items 3-6, 8-19) (001, 013, 305)
52419400 AR Case, Gear Aluminum 28" (Contains Items 3-6, 8-19) (002, 304)
52419500 AR Case, Gear Aluminum 32" (Contains Items 3-6, 8-19) (003, 302)
8 07417000 1 Screw, Tapping .38-16 x .75
9 05618800 2 Seal 1.00 x 1.38
10 00254100 1 Gearcase, Left Hand
11 05520500 2 Bushing, Flanged 1.003 x 1.50 x .625
12 00031700 1 Locktite 518 Gasket--6ML Tube
13 00254000 1 Gearcase, Right Hand
14 07412400 8 Screw, Tapping .25-20 x 1.00
15 06600800 1 Key, Woodruff .25 x .875 x .375
16 06416600 2 Washer, Flat Steel 1.01 x 1.54 x .062
17 05500007 1 Bushing, Flange .629 x 1.00 x .75
18 00257500 1 Rake Shaft 26" (001, 013, 305)
00275000 1 Rake Shaft 28" (002, 304)
00276100 1 Rake Shaft 32" (003, 302)
19 00008000 1 Ariens 16 Oz. Bottle of L2 Lube (9 oz. capacity)
20 52419600 1 Worm Shaft and Gear
21 06436300 2 Washer, Flat Steel 1.010 x 1.505 x .062
PS0283
1
2
3
4
5
6
19
9
10
11 12
20
13
14 15
16
16
9
11
17
18
7
8
21
21
